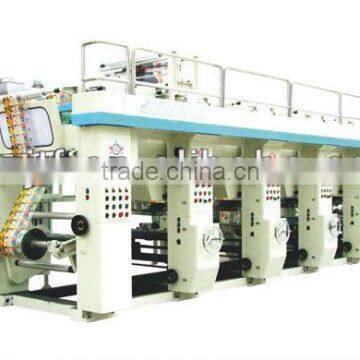

High Speed Computer Rotogravure printing Press

Specifications

We are specializes in complete set of plastic soft packing equipment for 30 years in China,including Printing machinery, Rotogravure printing presses, Gravure printing press price, Rotogravure printing machinery.AY600.800.1100A are applicable for BOPP,PET,PVC,PE and combined film and paper with the same properties

Main characteristics :

1/The main transmission system adopts speed-adjusting motor to control the speed polelessly.
2/It can realize printing in single-side, dual-side,multi-colors,and has the function of meter counting.

3/The material receiving,the traction of material receiving and feeding adopt moment motor, while material feeding adopts magnetic powder braker.
4/The ink circulates automatically with the ink pump.
5/The dry system adopts dual oven tunnel. The up-and-down oven of each printing unit adopts centrifugal blower to bring in the air.

6/The position of ink scraper can be adjusted freely up and down,pre and post. And it adopts horizontal movement repeatedly.
7/The material receiving and material feeding device adopt reversal dual station

8/The rubber roller adopts manual pressure.
9/Printing cylinder correcting adopts differential transmission device.

Main Technical Parameters:

1).Printing width:420-1100mm

2).Mechanical speed:60m/min

3).Printing speed:50m/min

4).Printing plate dia:90-300mm

5).Guiding roller width: 830mm or 1130mm.

6).Unwinding dia: 600mm

7).Rewinding dia: 600mm

8).Colors number:6 colors(Standard model

9).Registration precision: Vertical ±0.2mm

10).Pressing printing strength:360kg

11).Drying method: Electric heating or oil heating.

12).Main motor: 5.5KW(Inverter motor

13).Total power: 37KW or 48KW or 57KW

14)Weight: 4350kg   4850kg   5350kg

14).Dimension:600 model:9300×1980×2400mm

               800 model: 9300×2180×2400mm

                1100 model: 9300×2480×2400mm
