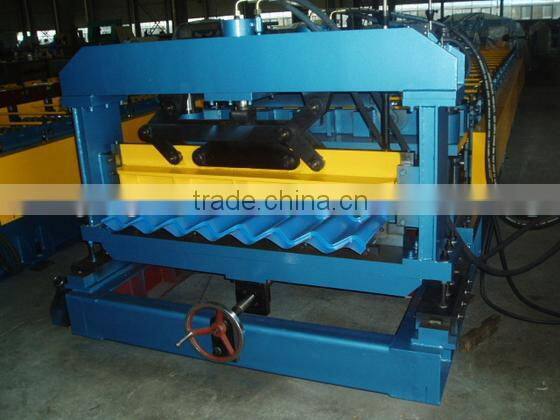

Glazed Tile Roll Froming Machine 2014

FOB Price

US$ 8,980 - 19,830 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	Longshun
Model Number	LS-1000-860		After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Parameters of the machine :

No.	Spc.
1	suitable material	Color Steel plate, galvanized sheet
2	Feeding width	1000mm
3	Rows of rollers	16 rows
4	Main power	5.5kw
5	Hydraulic power	4kw
6	Thickness of raw material	0.3-1.0mm
7	Transportation system	Chain transportation
8	Thickness of chain	1.2 inches
9	Effective Width	860mm
10	Out diameter of shaft	80mm (solid shaft)
11	Material of shaft	45# steel forged by the Carbon at high temperature
12	Roller material	40Cr steel polished and coated with chrome HRC55-60°
13	Shear mould	Cr12
14	Voltage	380V 50Hz/60Hz 3phases
15	Control system	PLC Frequency Control System with touch screen
16	Total Weight	7 tons

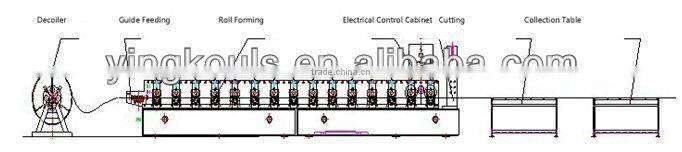

Machine Components:

De-coiler	1 set
Forming machine	1 set
Production support table	1 set

Our Services

Installation:

On site production and installation of self supported curved roofing without any structure, enables faster and leak proof roofing system, thus ensuring utmost flexibility in work and design.

Easy & Quick installation

As the production is carried out on site, the installation will be faster, take an example, 1500 square meters area in 12 hours, enabling to finish the project in very quick time.

Durability & Resistance to corrosion

Galvanized and pre-coated steel coil give corrosion resistance and superior heat reflectivity. Galvanized steel reflects a high percentage of heat and can withstand in any weather conditions without surface discoloration. It is of high tensile steel and comes in spectrum of colors, to enhance the appearance, life and value of the building: specially designed sewing machines eliminate use of fasteners and thus ensure 100% leakproof roofing.

Packaging & Shipping

Payment terms: 30%TT in advance, 70%-the balance should be paid before loading.

Delivery time: 7 days after receiving the 30% advance payment.

Guarantee period: 18 months service for free, paid service for the whole machine life.
