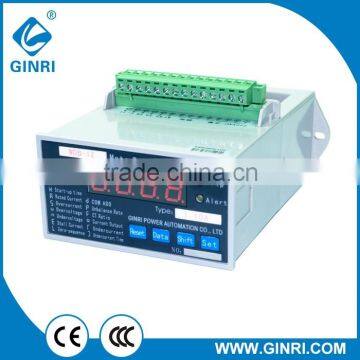

WDB-1Z Motor Protective Relay
- 20000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
You May Like
-
JDB-1 Electronic Overcurrent Relay
-
JDB-1 Overload and Phase Loss Relay
-
WDB-1F2 Overload/undercurrent/Phase Failure/Phase Unbalance Motor Protective Relay
-
WDB-1F Overcurrent and Undercurrent Monitor
-
WDB-1F2 Three Phase Digital Motor Protector with overcurrent,Phase loss,rotor-locked,Asymmetry protection
-
WDB-1Z Overcurrent and Undercurrent Relay
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GINRI | |
| Model Number | WDB-1Z | Theory | Other, Current Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | High Power |
Product Description
Electronic Motor Protective Relay
WDB-1Z
♦ Features
-- Integrative structure
-- Built-in LED and keypad afford a precise,digital setting
-- Three-phase monitoring of short-circuit, locked-rotor,overcurrent, undervurrent, phase loss, phase unbalance,overvoltage,undervoltage
-- Earth fault (should couple with ZCT)
-- Fault recording
-- RS-485 communication port (optional)
-- 4-20 mA analog output (optional)
-- 2 C/O output contacts, one for trip,one for alert
♦ Protective Functions
-- Short-circuit
-- Locked-rotor
-- Overcurrent
-- Undercurrent
-- Phase loss
-- Phase unbalance
-- Overvoltage
-- Undervoltage
-- Earth fault
♦ Typical Applications
• Pumps • Fans
• Blowers • Motors
• Compressors
♦ Approvals
• CE • CCC
♦ Technical data
Type | WDZ-1Z |
Rated voltage | 220VAC,380VAC ,50/60Hz |
Current range | 1-10A,5-50A,10-100A,20-200A 80-400A,400-600A,600-800A |
Protective functions | short-circuit, locked-rotor, overcurrent, undervurrent, phase loss, phase unbalance,overvoltage,undervoltage, earth fault |
Optional functions | RS-485 communication port 4-20 mA analog output |
Indicators | LED indicating voltage,current,operation status |
Output contacts | 1 C/O for trip 1 C/O for alert |
Contact capacity | 3A 380VAC |
Dimensions (H x W x D) | 118×54×135mm |
Mounting | screw fixing |
* Please contact us for further information.
