JVM-A Adjustable Three-phase Voltage Monitoring Relays
- 20000 Piece / Pieces per Month
- Ningbo
- T/T Credit Card
You May Like
-
APR-3/APR-4 Phase Failure & Phase Reversal Relay
-
JVRD Phase Rotation / Phase Reversal Relay
-
JVRD6 Phase Rotation/Phase Failure Relays
-
Phase Failure/ Phase Reversal/Phase Rotation Relay /APR-3/APR-4
-
JVRD Phase Monitor with Phase Loss/Phase sequence/Phase Failure
-
JVRD-N 3-phase 4-wire Phase Failure/Phase Reversal Relay
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GINRI | |
| Model Number | JVR-380 | Theory | Voltage Relay | |
| Usage | Protective | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | High Power |
Product Description

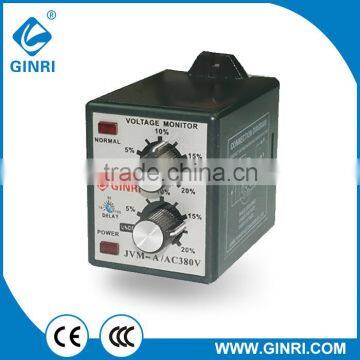

Three-phase Voltage Monitoring Relay
JVM-A
♦ Features
-- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage
-- Adjustable over- and undervoltage threshold
-- Adjustable trip delay time
-- Powered by the measuring circuit
-- 1 C/O contact
-- 2 LEDs for status indication
♦ Protective Functions
-- Phase sequence
-- Phase loss
-- Overvoltage
-- Undervoltage
♦ Typical Applications
• Pumps • Fans
• Blowers • Motors
• Compressors
♦ Approvals
• CE • CCC
♦ Technical data
Type | JVM-A |
Measuring circuit | R,S,T |
Rated voltage | 220VAC,380VAC ,50/60Hz |
Monitoring functions | phase sequence, phase loss, overvolatege, undervoltage |
Voltage setting range | ±5%~±20% |
Trip delay time | 1-10s adjustable |
Indicators | Power, Normal |
Output contacts | 1 C/O |
Contact capacity | 3A ,250VAC |
Dimensions (H x W x D) | 61×49×70mm |
Mounting | plug-in |
* Please contact us for further information.
