High efficiency 320W Monocrystalline solar panel , mono solar panel for home use

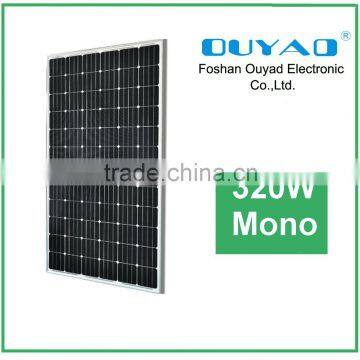

320W Monocrystalline Solar Panel

(Values at Standard Test ConditionsAM1.5   Irradiance:1000W/ m² T:25°C)

ITEM NO.

S/M-320

Maximum Power at ST(Pmax)W

325Wp

Maximum Power Voltage(Vmp)V

36/

Maximum Power Current(Imp)A

8.88

Open Circuit Voltage(Voc)V

41.2

Short Circuit Current(Isc)A

9.03

Cell Efficiency(%)

18.6%

Module Efficiency(%)

16.8%

Silicon Type

Mono

Series Fuse Rating (A)

12

Brand Name of Solar Cells

top brand Cell

Size of Module (mm)

1920*990*40mm

Solar Cell

156*156 Mono

Number of Cell (PCS)

72(6*12) cells

Weight (KG)

23

Power Tolerance

0~+3%

Components & Mechanical Data

Front Glass Thickness (mm)

High Transparency Tempered Glass 3.2mm

Junction Box Type

Pass the TUV Certificate PPO(Black/IP65)

Output Cables

4mm²/0.9m

Frame (Material Corners, etc.)

Aluminum-alloy

Encapsulation Material

EVA(0.50±0.03 mm thickness)

Back Foil

White TPT(0.32±0.03 mm thickness)

Fixing Adhesive

Silicone Sealant ( White)

Temperature Range (°C)

-40°C to +90°C

Max Load Capacity(Kpa)

2.4wind load/5.4 snow load

Temperature Coefficients

NOCT(°C)

47±2

Temperature Coefficient of Pm

-0.45±0.05 %/°C

Temperature Coefficient of Isc

0.05±0.01 %/°C

Temperature Coefficient of Voc

-0.35±0.02%/°C

Packaging:

1*20'GP

240pcs / 6pallets

1*40'GP

540pcs /12pallets
