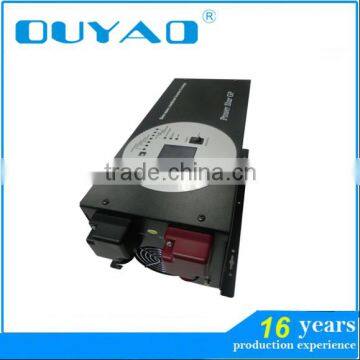

Pure Sine Wave 2000W Solar Inverter

FOB Price

US$ 195.00 - 215.00 / Piece

1 Piece(Min. Order)

Port FoShan Port
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	OUYAD
Model Number	GP2022	Output Power	1 - 200KW
Output Type	Single	Size	468224212mm
Weight	27.6kg	Input Voltage	196-263V
Output Voltage	230V	Type	DC/AC Inverters
Output Frequency	50Hz/60Hz	Output Current	10A

Product Description

2KW GP Series Pure Sine Wave Inverter

Products Description:

This GP series low frequency inverter, it is equipped with LED+LCD screen,, so all information is displayed in details. Advantages include high transfer efficiency, low power consumption, strong ability, big charge current etc. It is built with 3 step intelligent charger, which will prolong battery’s life.

Features:

1. Suitable for all electric equipment.

2. LED+LCD display detailed content.

3. Controlled by CPU, fast transfer time.

4. Power saver mode is available when less than 25W.

5. Built with battery charger, provide big charge current.

6. Could be compatible to grid power and diesel generator.

7. Intelligent battery management system, prolong battery’s lifespan.

8. Perfect protection: low voltage, high voltage, over heat, short circuit, and over load protection.

Application:

Specification:

Model		GP2022	GP2032
DC Voltage		24V	48V
Rated Power (W/VA)		2000
Surge Power(W/VA)		6000
Inverter Output	Wave Form	Pure Sine Wave
	Output Voltage	120VAC/230VAC
	Output Frequency	50HZ/60HZ
	Inverter Efficiency	Bigger than 88%
	AC Mode Efficiency	Bigger than 95%
	Power Factor	1
	Typical Transfer Time	10ms
AC Input	Input Voltage	120VAC/230VAC
	Input Voltage Range	90VAC-150VAC, 184-270VAC
	Normal Frequency	50HZ/60HZ (auto detect)
	Frequency Range	47-55HZ for 50HZ, 57-65HZ for 60HZ
Battery	Charge Current	35A	25A
	Low Battery Alarm	10.5VDC for 12VDV mode (2 for 24VDC, 4 for 48VDC)
	Low Battery Cut Off	10VDC for 12VDV mode (2 for 24VDC, 4 for 48VDC)
	High Voltage Alarm	16VDC for 12VDV mode (2 for 24VDC, 4 for 48VDC)
Protection	Over-load Ability	(110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes; 125%<load<150%) ±10%: Fault (shutdown output) after 60s; Load>150% ±10%: Fault (shutdown output) after 20s
Bypass	Backup Resource	Grid Power or Diesel Generator
	Breaker Rating	30A
	Max Bypass Current	30A
	no battery connected	Yes
Mechanical Specification	Mounting	Wall
	Display	LED+LCD
	Dimension(mm)	442218180
	Net Weight (KG)	21	20
Other	Operation temperature	0℃-40℃
	Noise Level	Less than 40dB
	Warranty	1Year
