High quality MPPT solar charge controller 48VDC/40Amps for solar power system Quality Choice
- FOB Foshan Guangzhou or Shenzhen China
- T/T Credit Card PayPal
You May Like
-
Integrated MPPT capability,48V 20Amp Solar Mppt Charge Controller
-
48V 40A MPPT solar controller
-
HOT ! GP series 6KW off grid home inverter with copper transformer, pure sine wave solar inverter/home ups
-
Smart Series ! HY series solar inverter with MPPT charge contronller,500w hybrid solar inverter,
-
HOT ! HY series solar inverter with Mppt charge contronller,300W hybrid solar inverter,
-
HOT ! ,solar inverter with built-in MPPT charge contronller,500w hybrid solar inverter
Product Details
Place of Origin | Guangdong, China | Brand Name | MRE | |
Model Number | MPS403 | Application | Solar System Controller | |
Rated Voltage | 48V | Maximum Current | 40A |
Product Description

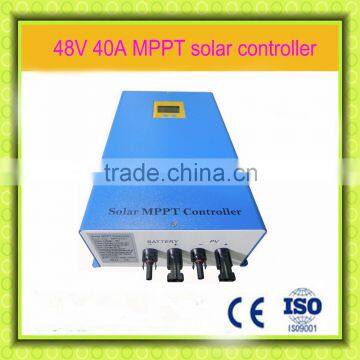

MPPT solar Charge controller 48V40A
operating principle
MPPT Function
Specifications:
Model | MPS403 |
Rated Voltage | 48VDC |
Rated charge current | 40A |
Load current | 15A |
Input voltage range | 52-88V |
Max PV open circuit array voltage | 88VDC |
Typical idle consumption | At idle < 10mA |
Overload protection (DC load) | 2.0*Inom>5s 1.5*Inom>20s 1.25*Inom temperature controlled |
Bulk charge | 58.4(default) |
Floating charge | 53.6(default) |
Equalization charge | 56V(default) |
Overcharge disconnection | 59.2V |
Over charge recovery | 54.4V |
Over discharge disconnection | 43.2(default) |
Over discharge reconnection | 49.2V |
Temperature compensation | -52.8mV/℃ |
Lead acid battery settings | Adjustable |
NiCad battery setting | Adjustable |
Load control mode | 1. Low Voltage Reconnect(LVR): Adjustable 2. Low Voltage Disconnect(LVD): Automatic disconnection 3. Reconnection: Includes warning flash before disconnect and reconnection |
Low voltage reconnect | 48.0-56.0Vdc |
Low voltage disconnect | 42.0-50.0Vdc |
Ambient temperature | 0-40℃(full load) 40-60℃(de-rating) |
Altitude | Operating 5000m, Non-Operating 16000m |
Protection class | IP21 |
Battery temperature sensor | BTS- optional remote battery temperature sensor for increased charging precision |
Terminal size(fine/single wire) | #8 AWG |
Size | 230*243*116mm |
Weight | 3kg |
Package
Application
Company Intruduction
Shenzhen Modern Renewable Energy Ltd. was founded in 1998, covering area more than 20, 000
square meters. The headquarters are located Building 4, Area D, New lighting Source Industrial Base, South Luocun Road, Luocun Town, Nanhai District, Foshan City, Guangdong Province, China.
We have our own independent wind turbine manufacturing plant and R&D department of wind turbine generator control system, solar panel, grid tie inverter, off grid inverter, controller, battery, etc.
At an early time, our company was famous for producing a variety of inverters at home and abroad. In 2005, we began to R&D and produce new energy products, R&D generator, and obtain great success, with 15 terms of new patents have been reported.
Depending on powerful technical strength and many years manufacturing experience,MRE has rapidly developed into a new energy manufacturer focused on wind power generation system and solar power system.
In the year of 2010, our company established Marketing Service Center in Washington, America, and our products are authorized by CE test system and the ISO9001: 2000 international quality system certification. UL certificate is being tested.
In the year of 2014, MRE company are well known as Guangdong Province High Technology Corporation.
