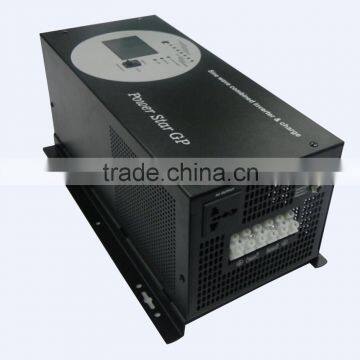

Hot ! GP series 5KW off grid home inverter with copper transformer, pure sine wave solar inverter/home ups

FOB Price

US$ 370.00 - 380.00 / Unit

10 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Specifications:

Model	GP1012	GP2022	GP3022	GP4032	GP5032	GP6032
Rated power	1000W	2000W	3000W	4000W	5000W	6000W
INPUT
AC input voltage range	196~243VAC
OUTPUT
AC output voltage range	230VAC
Output frequency	Batt.mode:50±0.3Hz;
	AC mode: 48~54Hz(50Hz) or 58~64Hz(60Hz),Same as AC
Output wave form	Pure Sine Wave
Transfer time	10ms(Typical)
PROTECTION
Overload protection	(100%<Load<120%)±10%: Auto shutdown in 2 mins; (120%<Load<140%)±10%: Auto shutdown in 60 Secs; (140%<Load)±10%: Auto shutdown in 20 Secs.
Output short circuit protection	Yes
Breaker	Input:15A/Output:10A		Input:30A/	Input:35A/	Input:40A/
			Output:15A	Output: 20A	Output:30A
BATTERY
Max. charging current	35A	45A
Min. DC start voltage	12V	24V		48V
PHYSICAL
LCD Display	show the working parameters of input,,output voltage, frequency, output power and the working condition
Net weight (KG)	22.8	27.6	32.4	38.2	44.5
Unit dimension(mm)	468224212			644224212
ENVIRONMENT
protections functions	protection against short-circuit, over -voltage, under-voltage and overheating, Ground fault monitoring, Integrated all - pole sensitive leakage current monitoring unit
Environment of performance	Temperature 0℃~40℃, Humidity 20%~90%
