Home > Products > Controller > 240VDC/480VDC MPPT Solar charge Controller,Hybird solar contronller!

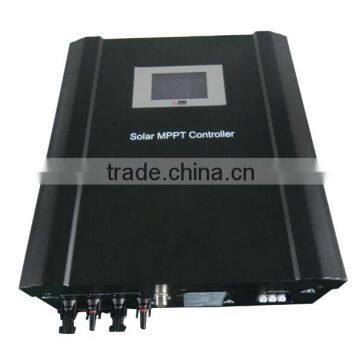

240VDC/480VDC MPPT Solar charge Controller,Hybird solar contronller!

FOB Price

US$ 1,070 - 1,335 / Piece

1 Piece(Min. Order)

Port FOSHAN GUANGZHOU OR SHENZHEN
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	MRE
Model Number	MPS407	Application	Solar System Controller
Rated Voltage	Other	Maximum Current	40Amp

Product Description

Features:

1. We adopt the principle of MPPT and advanced Microprocessor Controlled and DSP technology.

2. Improve PV system output efficiency of 20%-30%.

3. Wide input DC voltage range

4. Digital intelligent control, use light signal transmission to control signal inner system for transfer with protection from interference and power loss

5. Solar controller charge module with electric plug, which is more convenience for adding adequate capacity maintenance

6. Battery charge control adopt three stags eg, equilibrium, boost, and float

7. DC and AC power distribution cabinets designed with lighting protection, . connecting wires could come out from the top or bottom which is easy to connect.

8. When the temperature is 50℃, system will reach rated output.

9. High reliability, no need for maintenance, lifetime up to 20 years

10.LCD display which shows PV voltage, charge voltage and charge current

11.ISO9001:2000

12. warranty : 3 years

Electrical specifications @25℃

Model	MPS404	MPS405		MPS406			MPS407		MPS408	MPS409
Rated Voltage	96VDC		120VDC		192VDC		240VDC		360VDC	480VDC
Rated charge current	40A	40A				40A	40A	40A		40A
MAX PV power	6kwp		7.5kwp		12kwp		15kwp		22.5kwp	30kwp
Mppt DC voltage rang	80v-200v		100v-240v		160v-400v		200v-500v		300v-750v	400v-950v
Bulk charge	116.8v		146v		233.6v		292v		438v	584v
Floating charge	107.2v		134v		214.4v		268v		402v	536v
Equalization charge	112v		140v		224v		280v		420v	560v
Overcharge disconnection	118.4v		148v		236.8v		296v		444v	592v
Over charge recovery	108.8v		136v		217.6v		272v		408v	544v
Over discharge disconnection	86.4v		108v		172.8v		216v		324v	432v
Over discharge reconnection	98.4v		123v		196.8v		246v		369v	492v
Lead acid battery settings	Adjustable
NiCad battery setting	Adjustable
Ambient temperature	0-40℃(full load) 40-60℃(de-rating)
Altitude	Operating 5000m, Non-Operating 16000m
Protection class	IP54
Battery temperature sensor	BTS- optional remote battery temperature sensor for increased charging precision
