small capsule filler

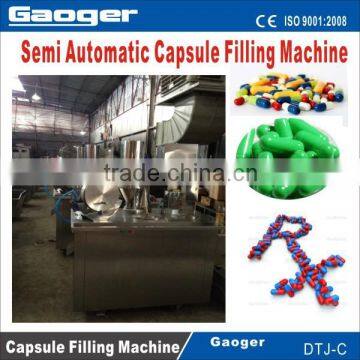

DJT-C  Semi automatic capsule filling machine

Capsule filler

Description:

1. Semi-Automatic Capsule Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance.

2. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules.

3. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary standards for pharmaceutics.

4. The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump.

5. China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 97%.

Technical Specifications:

1.Productivity: Max:12,500 capsules/hour

2.Applicable capsules: 00#, 0#, 1#, 2#, 3# ,4# machine-made standard capsules

3.Filled medicine type: Not adhesive or wet powders and small granules

4.Total power: 2.12Kw

5.Air pressure: 0.03m³/min, 0.7MPa

6.Vacuum pump: evacuating rate: 40m³/h

7.External dimensions(m): 1.5*0.78*1.6 (L*W*H)

8.Weight: 330Kg

Our Certificate :

Our Factory:

Our Service

1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

 2.Clients Traning Services
We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.

3.We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

4.Your satisfication is our persuit forever!

We Provide You With Sincerely Service, if you have interest,contact us NOW!!!

Tel:0086-577-63081586 FaxL0086-577-63081580
