ZBJ Series Briquette Machine With Capacity 150-200 Kg/h
- Shanghai
- T/T Credit Card
You May Like
-
Crop Straw, Hay and Miscanthus Briquette Machine With Capacity 150-200 Kg/h
-
Hot Sale! Large Quatity Charcoal Briquette Press Machine
-
2013 Large Quatity Charcoal Wood Briquette Machine
-
2014!New Energy! Wood Charcoal Briquette Making Machine for Bbq
-
2014!New Energy! Coal Powder Briquettes Making Machine to Make Coal Briquette for Bbq
-
High Density Wood Briquette Press Machine for Bbq
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | HYPH | Model Number | ZBJ-I small briquette machine | |
| Voltage | 380V | Power(W) | 11KW | |
| Weight | 720KG | Dimension(L*W*H) | 1650*530*1250mm | |
| Certification | ISO,CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
small briquette machine1.high quality
2.CE and ISO,SGS

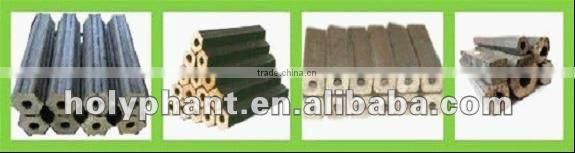

3.charcoal stick briquette
ZBJ series briquette machine with capacity 150-200 kg/h
Introduction
This series briquette machine can be used in producing high quality wood charcoal stick with low cost sawdust, corn cob and peanut shell, cotton stalk, tree branch, crop straw, hay and miscanthus etc.
Technical Features
1,Carbonization - molding
2,60% electricity cost reduction;
3,Production efficiency increase to 2-3 times
4,Per ton cost reduced by $40 USD;
5.Durable: life of easy worn parts increased from 40 hours to 4000 hours; and easier operation
6.A weak carbon turned into quality carbon, excellent quality carbon turned into special carbon.weak carbon contents increased from 60% to 70-75%;excellent quality carbon contents increased to 83%,extends the market both at home and abroad
Main Data and Requires
The size of the raw materials is alike sawdust, moisture is 7-12%.
If the raw materials is not sawdust,pls use wood crusher ;if the moisture is higher than 12%,pls dry it .
Model | ZBJ-III | ZBJ-II | ZBJ-I |
Output kg/h | 300-350 | 200-300 | 150-200 |
Motor Power (kw) | 18.5 | 15 | 11 |
Electric heater (kw) | 3*2.2 | 3*1.5 | 3*1.5 |
Size of products (mm) | Ø45-70 | Ø45-55 | Ø45-55 |
Size (mm) | 1920*630*1550 | 1680*550*1280 | 1650*530*1250 |
Weight (kg) | 850 | 780 | 720 |

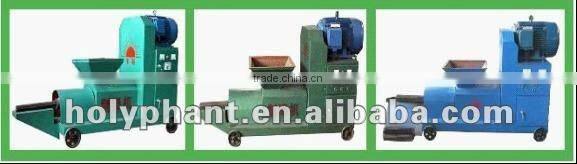

Picture of Product and Useage

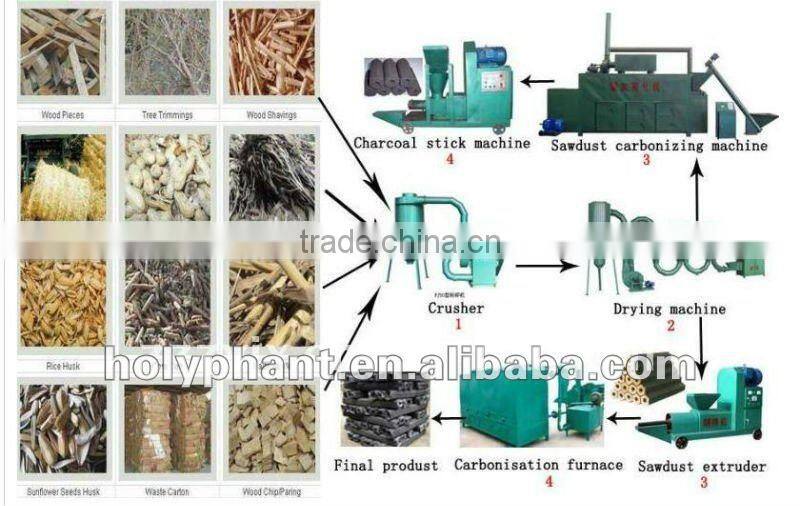

Raw material and entire line equipment
More information,pls contact
