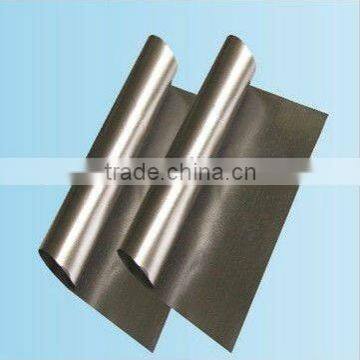

0.1mm Pure Thermal Graphite Film
- 2000 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | KY | |
| Model Number | Various | Type | Reinforced Sheet | |
| Application | IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop | Thickness | 0.2mm to 1.5mm | |
| Grade | Industrial Grade | C Content (%) | 1.5 to 2.0g/cm3 |
Product Description
Specifications
0.1mm Pure Thermal Graphite Film-High thermal conductivity
-Standard size:1m*1m
-LED graphite pad
-Industry direct price
0.01 mm Pure Thermal Graphite Sheet is a kind of totally new thermal & radiating material, heat conducting evenly along two directions, shielding with heat and component while improving the performance of the consumer electronic products.
Key property:
1.Ultra-high thermal conductive performance / easy to operate
2.Low thermal resistance
3.Light weight
Applications:
IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment;
Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone
Physical properties:
Test item | Test method | Unit | GSM Test value | GSB Test value | GS+PET Test value |
Color | Visual |
| Black | Black | Black |
Material |
|
| Natural graphite | Natural graphite | Natural graphite |
Thickness | ASTM D374 | Mm | 0.1 to 1.0 | 0.2 to 1.5 | 0.2 to 1.5 |
Specific Gravity | ASTM D792 | g/cc | 1.5 | 0.9 to 2.0 | 1.5 to 1.8 |
Continuous Use Temp | EN344 | °C | -40 to +400 | -40 to +400 | -40 to +400 |
Tensile Strength | ASTM F-152 | Kpa | 715PS | 715PS | 715PS |
Volume Resistivity | ASTM D257 | Ω/CM | 3.0*1013 | 3.0*1013 | 3.0*1013 |
Hardness | ASTM D2240 | Shore A | 80 | 80 | >80 |
Flame Rating | UL 94 |
| V-0 | V-0 | V-0 |
Conductivity (vertical direction) | ASTM D5470 | w/m-k | 20 | 15 | 5 |
Conductivity (horizontal direction) | ASTM D5470 | w/m-k | 300 to 500 | 300 to 500 | 300 to 500 |
Configurations available: Specific size could be provided according to your requirements.
