Home > Products > Digital Clamp Meters > Best Digital multimeter UNI-T UT202
Best Digital multimeter UNI-T UT202
- shanghai ningbo
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | UNI-T | |
| Model Number | UT202 | Measuring Range | 2V/20V/200V/600V | |
| Accuracy Class | 1V | Supply Voltage | 1.5V battery 7# *2 | |
| Operating Temperature | Normal atmospheric temperature | Dimensions | 210mm X 75.6mm X30 mm |
Product Description
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

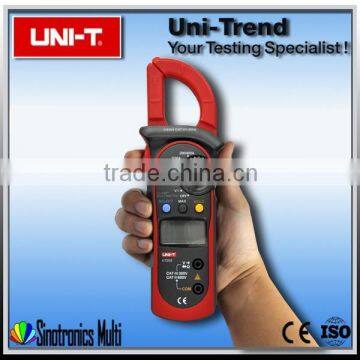

Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT202 is a stable performance, safe and reliable 1999 count digital clamp meter. Full range of overload protection circuit, unique design to make it become a superior performance of the special electrical instrumentation.
An ideal tool for the maintenance and maintenance of smelting, manufacturing, petroleum, electric power, chemical and other industries.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specifications | Range | Best Accuracy |
| Model | UT202 | |
| AC Current (A) | 2A/20A/200A/400A | ±(1.5%+5) |
| AC Voltage (V) | 2V/20V/200V/600V | ±(1.2%+5) |
| DC Voltage (V) | 200mV/2V/20V/200V/600V | ±(0.8%+1) |
| Resistance (Ω) | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±(1%+2) |
| Temperature (°C) | -40°C ~ 1000°C | ±(1%+3) |
| Temperature (°F) | -40°F~1832°F | ±(1%+6) |
| Features | ||
| Display Count | 2000 | |
| Auto Range | √ | |
| Jaw Capacity | 28mm | |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| MAX Mode | √ | |
| Full Icon Display | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 1.5V Batteries(R03) ×2 | |
| LCD Size | 35.6mm X 18 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 220g | |
| Product Size | 210mm X 75.6mm X30 mm | |
| Standard Accessories | Battery, Test Lead,Carrying Bag,Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 540mm X 495mm X 335mm (0.09 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 23Kg | |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
