Home > Products > Digital Clamp Meters > Best Digital Multimeter UNI-T UT200B
Best Digital Multimeter UNI-T UT200B
- SHANGHAI NINGBO
You May Like
Product Details
| Place of Origin | China | Brand Name | UNI-T | |
| Model Number | UT200B | Measuring Range | 20A/200A/600A | |
| Accuracy Class | 1V | Supply Voltage | 9V Battery(6F22) | |
| Operating Temperature | Normal atmospheric temperature | Dimensions | 208mm X 76mm X30 mm |
Product Description
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

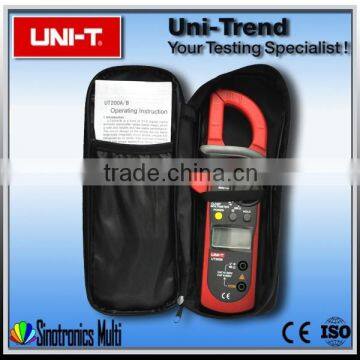

Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT200A a stable performance, safety, reliable 1999 count the number of clamp type table, its unique appearance design, rigorous structure design, reasonable allocation of functions to become a excellent performance of the special electrician instrument. Especially for the design of electrical users, especially suitable for equipment daily inspection and maintenance. UT200A (minimum current 2A) due to the characteristics of products can be used in small household
appliances (low power) measurement.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specification | ||
| Model | UT200B | |
| AC Current (A) | 20A/200A/600A | ± (1.5%+5) |
| AC Voltage (V) | 600V | ± (1.5%+5) |
| DC Voltage (V) | 600V | ± (1%+3) |
| Resistance (Ω) | 20KΩ | ±(1%+4) |
| Features | ||
| Display Count | 1999 | |
| Manual Range | √ | |
| Jaw Capacity | 28mm | |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| LCD Backlight | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 35.6mm ×18mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 260g | |
| Product Size | 208mm X 76mm X30 mm | |
| Standard Accessories | Battery, Test Lead,Carrying Bag | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 540mm X 490mm X 335mm (0.087 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 23 Kg | |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
