Home > Products > Roll forming machine > Top Quality Tuna Tin Can Making Machine
Top Quality Tuna Tin Can Making Machine
- shanghai
 - T/T

You May Like
Product Details
| Place of Origin | China | Brand Name | changtai | |
| Model Number | FH18-38 | Voltage | 380V±5% 50HZ | |
| Current | 18kw | Rated Capacity | custom made | |
| Rated Duty Cycle | 15HZ | Dimensions | 1200*1100*1800mm | |
| Weight | 1200Kg | Usage | can welding machine, can welding machine | |
| Certification | ISO9001 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Precision performance2.Applicable can height:70~320mm
3.Applicable can dia:38~45mm
4.Be used for beverage can,etc
top quality tuna tin can making machine
1.Specification
| FH18-38 | |
| Linear rate of welding | 6-18m/min |
| Production capability | 20~80Cans/min |
| Applicable can diameter | Φ38~Φ45mm |
| Applicable can height | 70~320mm |
| Applicable material | Tinplate steel-based |
| Applicable material thickness | 0.18~0.25mm |
| Applicable copper wire diameter | Φ 1.38mm |
| Seam welding landing | 0.4mm 0.6mm |
| Seam point distance | 0.5-0.8mm |
| Cooling water | Temperature:12-18°C Pressure:0.4~05Mpa Discharge:7L/min |

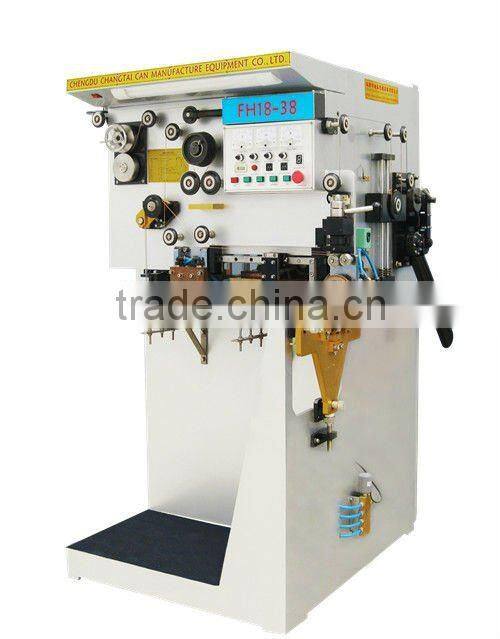

2.Latest picture
*******************************************************
********************************************************************accessories*********************************
**************************************************
3.Can making technology process
Cutting-----rounding-----welding-----coating------drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
4.Applicable types of cans
aerosol cans, food cans, beverage cans, chemical cans , paint pot and square bucket etc.
