Automatic Can Rounding Machine

FOB Price

US$ 7,000 - 9,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Automatic Grade	Automatic
Usage	Food Forming Machine	Place of Origin	Sichuan, China
Brand Name	Changtai	Model Number	ZDJY45-450
Voltage	380V+-50HZ	Power(W)	2.2Kw
Dimension(LWH)	2100X1000X1400mm	Weight	350Kg, 350kg
Certification	ISO9001	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Automatic can rounding machine

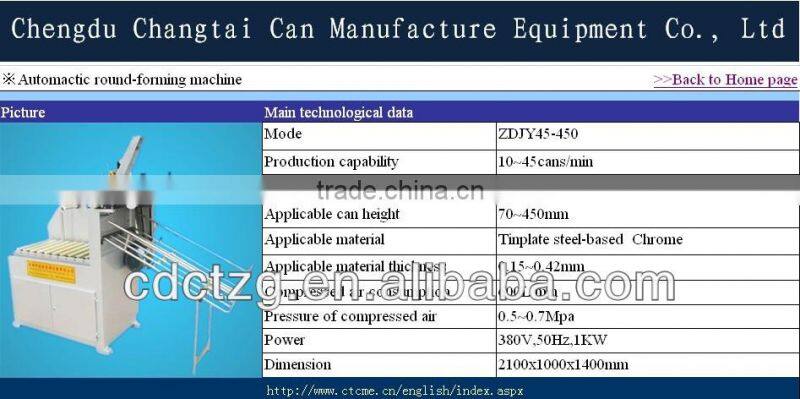

1.The main technical data.

Model	ZDJY45-450
Production capability	10~45Cans/min
Applicable can height	99~300mm
Applicable can diameter	70~450mm
Applicable material	tinplate
Applicable material thickness	0.15~0.42mm
Applicable material hardness	T2.5-DR8
Compress air consumption	600L/min
Pressure of compress air	0.5 MPa ~0.7MPa
Power	380V , 50Hz , 1KW
Dimension	2100×1000×1400mm
Weight	350Kg

2.Technology process

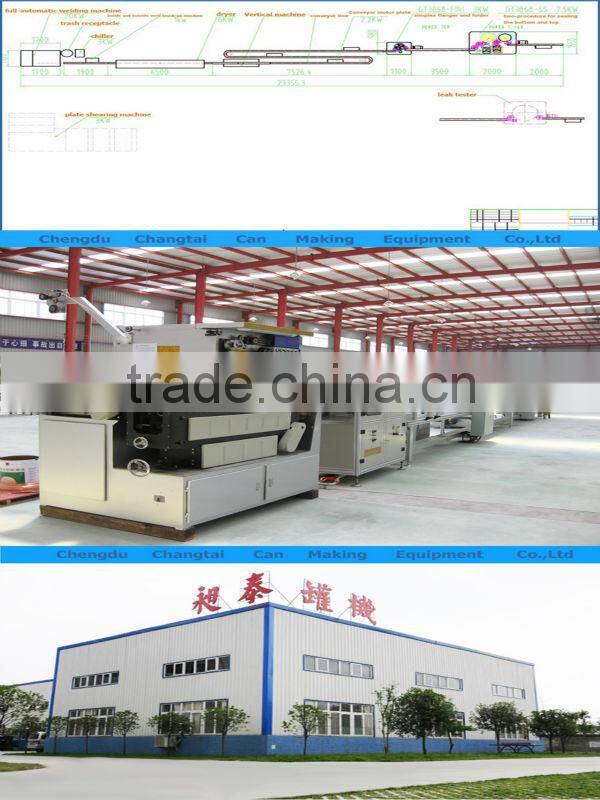

Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-------beading and curling

3.Applicable types of products

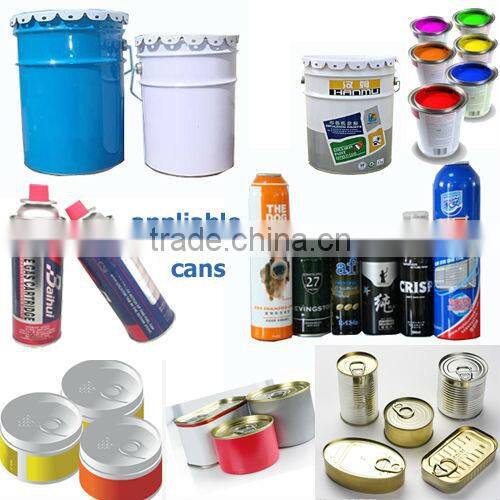

aerosol cans, food cans, beverage cans, chemical cans , paint pot and square bucket etc.
