Home > Products > Electrical Products (Low Voltage Products) > Basic Connecting Terminal
Basic Connecting Terminal
Negotiable
/ Piece
1000 Pieces(Min. Order)
- Ningbo or Shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | REWORLD | |
| Model Number | RW-1.5 | Type | Other, connection terminal |
Product Description
Specifications
1.all these goods ambient temperature is -25+55degree2.The manufacturing precision of thread will be second grade
| Characteristics of application: | |||||||||||

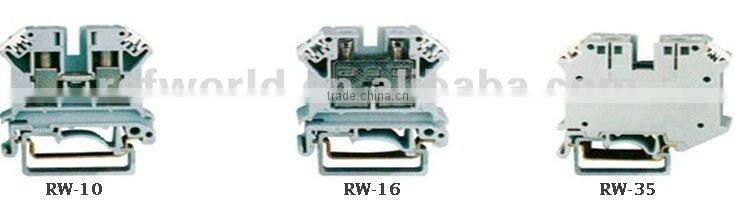

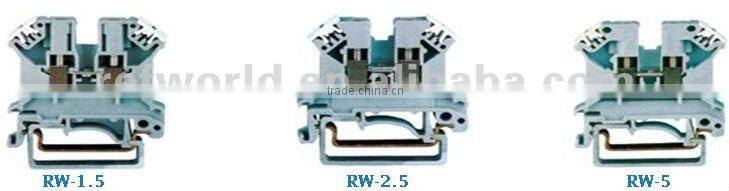

| RW series terminal blocks features compact,reasonable structure,beautiful shape ,wide installing filed.It can be installed on TH35 and G32 type rail.When installation,it can be realized by elasticity of material and reasonable structre.The connection of lead can adapt the method of using screw to lift and press lead frame to press and jiont lead.It is not only convenient and compact structure but also does not damage the lead. | |||||||||||
| Feature | Current | Voltage | connecting wire(mm2) | dimension | screw | ||
| Model | single | double | (w*h*t) | regulator | torque | ||
| JHD-1.5 | 17A | 500V | 0.2-2.5 | 0.2-1.5 | 41×42.5×4.2 | m2 | 0.4Nm |
| JHD-2.5 | 24A | 660V | 0.2-4 | 0.2-2.5 | 41×42.5×6.2 | m3 | 0.6Nm |
| JHD-5 | 38A | 600V | 0.6-6 | 0.2-4 | 46×42.5×6.2 | m3 | 0.6Nm |
| JHD-10 | 76A | 690V | 0.5-16 | 0.5-10 | 46×42.5×10.2 | m4 | 1.8Nm |
| JHD-16 | 85A | 726V | 2.5-25 | 4-16 | 53×42.5×12.2 | m4 | 1.8Nm |
| JHD-35 | 140A | 600V | 0.75-35 | 0.75-35 | 62×51×15.2 | m6 | 4Nm |
| JHD-50 | 150A | 1000V | 16-50 | 25-50 | 86.5×70.5×20.2 | m6 | 4Nm |
| JHD-95 | 232A | 1000V | 25-95 | 35-95 | 90×83×25.2 | m8 | 5Nm |
| JHD-4s | 41A | 500V | 0.2-4 | 0.2-4 | 52×61×6.2 | m3 | 0.8Nm |
| JHD-6s | 57A | 400V | 0.5-10 | 0.5-6 | 59×72×12.2 | m4 | 1.8Nm |
