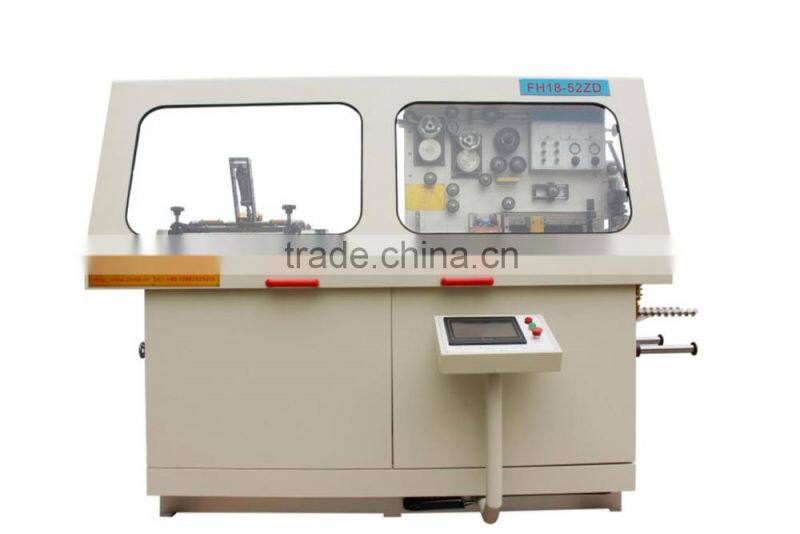

2016 High Technology Tin Can Body Welder

FOB Price

US$ 60,000 - 70,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Chemical, Food, Other, Chemical, Food, Machinery & Hardware, spary/aerosol/paint
Packaging Type	Cans	Packaging Material	Metal
Automatic Grade	Automatic	Driven Type	Other, Electric, Electric
Voltage	380V±5% 50HZ	Power	40KVA
Place of Origin	Sichuan, China	Brand Name	Changtai
Model Number	FH18-52ZD	Weight	1800KG
Dimension(LWH)	1950X1100X1800mm	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

2016 high technology tin can body welder

Main technical data

Linear rate of welding	6-36m/min
Production capability	60~120Cans/min
Applicable can diameter	Ø52~ø99mm
Applicable can height	70~320mm
Applicable material	Tinplate steel-based Chrome
Applicable material thickness	0.16~0.30mm
Seam welding landing	0.4mm 0.6mm
Seam point distance	0.5~0.8mm
Applicable copper wire diameter	ø 1.38mm ø 1.5mm
Cooling water	Temperature:12-18°C Pressure:0.4~05Mpa Discharge:10L/min
Power	380V±5% 50HZ
Total power	18KVA
Dimension	1750×1100×1800mm
Weight	1800Kg

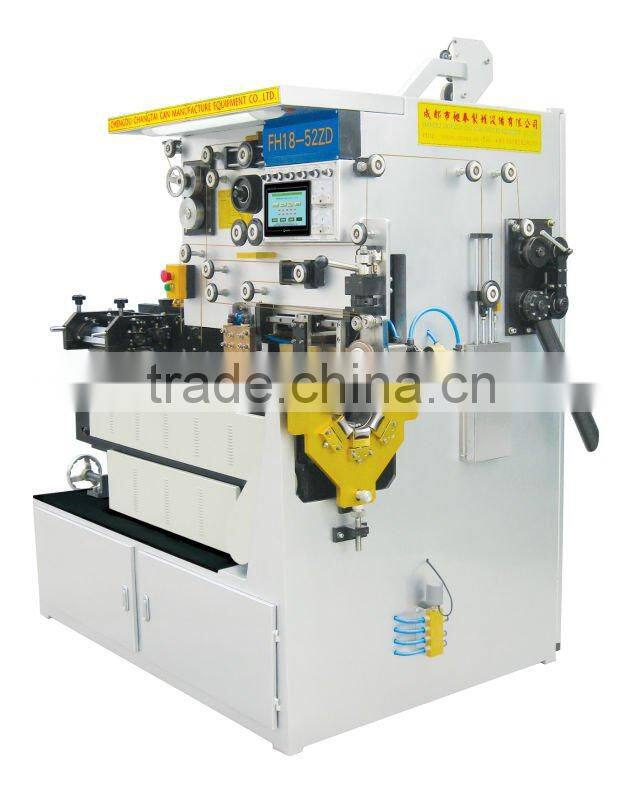

Latest picture

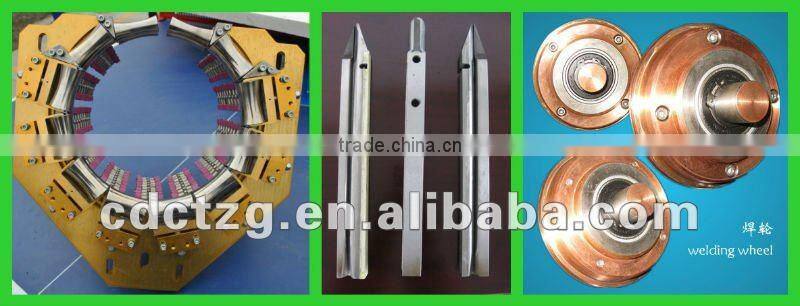

*****************************************accessories****************************************

Our major component suppliers

1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.

2, Low voltage apparatus are produced by SCHNEIDER.

3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.

4,OMRON is our sensor supplier.

5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.

Can making technology process

Cutting-----rounding-----welding-------coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling

Conton fair:

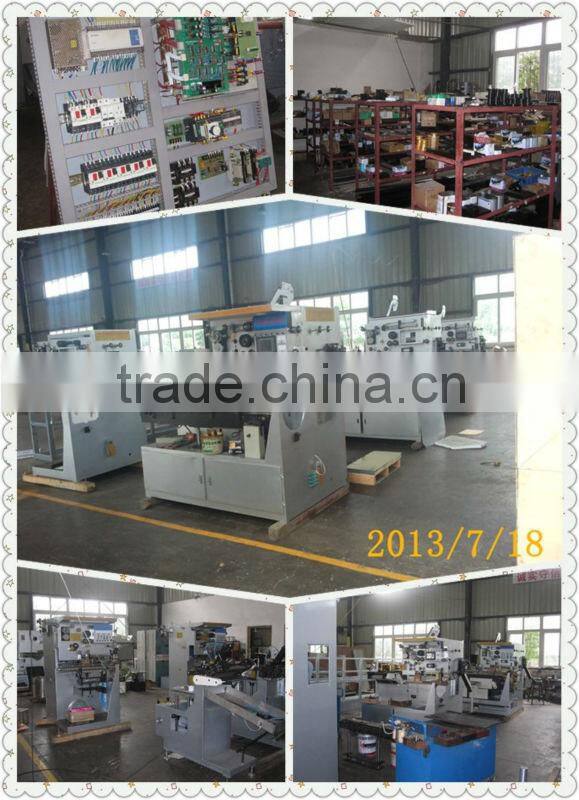

Workshop:

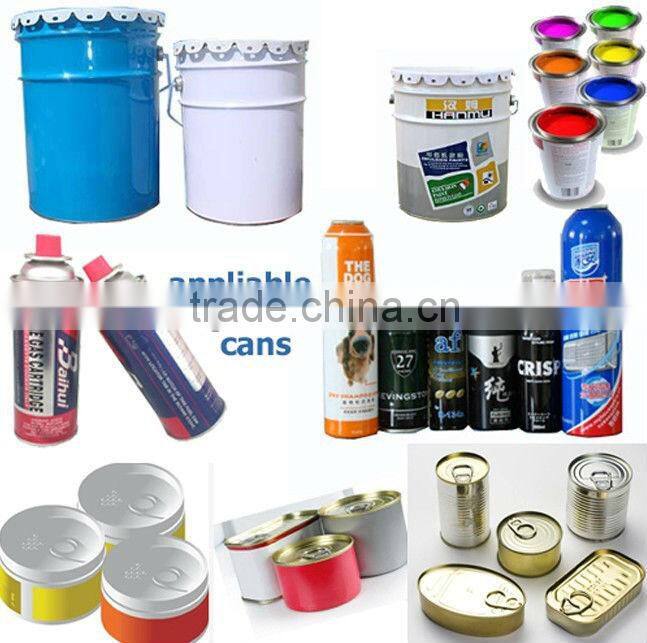

Appliable tin cans:

Certificates:

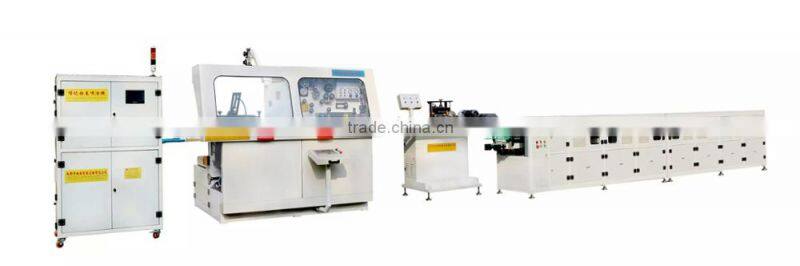

Mainly products:
