Strap Control Roller Door

Place of Origin	Guangdong, China		Brand Name	ALUROLL
Model Number	RS-59		Frame Material	Aluminum Alloy
Open Style	Rolling		Type	Sliding Windows
Opening Pattern	Vertical

Specifications

Energy saving, All-weather, UV Stablized
Pre-coated Aluminum
100% HDPU
Application: Interior & exterior
3 control system

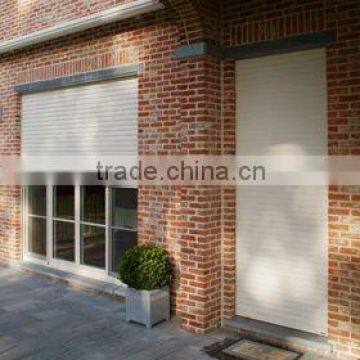

Aluminum  Slats Roller Shutter for Doors & Windows



About the product



A. Roller shutter



   1) Dimension: can be customized;

   2) System option: tubular motor driving system, manual strap control system, crank control system

   3) Slats option: 45, 55mm.

   4) Maximun width: 2500~3200mm.

   5) Maximun height: 3000~3900mm.

   6) Maximun coverage: 7~10m²

   7) Material: aluminum alloy.

   8) Control:  remote, switch, strap, crank

   9) Motor: 6 ~ 50 Nm (tubular motor)

   10) Comon color: white, silver, apricot, brown



B. Slats



Cover	Max Width	Max Height	Max Area	Weight/m	Weight/m2	Quantity/m	Length
45 mm	2500 mm	3000 mm	7m2	0.115 kg	2.55	22.2 pcs	5.8
55 mm	3200 mm	3900 mm	10m2	0.15 kg	2.7	18 pcs	5.8



C. Package



Item	Packing
Roller shutters	Wooden case
Slats	Bubble protective film
Other components	Standard export package
