Home > Products > Aluminium Window > Manufactured Yatai Brand Red Wood Aluminum Window
Manufactured Yatai Brand Red Wood Aluminum Window
- FOSHAN/GUANGZHOU/SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Grade | 6000 Series | |
| Temper | T3-T8 | Application | Other, Door & Window | |
| Shape | T - Profile | Alloy Or Not | Is Alloy | |
| Model Number | 60 serie | Brand Name | YT |
Product Description
| 1.Aluminium Alloy | 6063, 6061. |
| 2.Temper: | T4,T5,T6 |
| 3.Surface treatment: | Mill Finished, Anodizing, Electrophoresis, Powder coating |
| 4.Color: | Silver, champagne, bronze, gold, white, black, and so on |
| 5.Length: | 10mm-7200mm |
| 6.Shape&dimension | the design we have or customized according to your design |
| 7.Packing: | our normal package is clean film ,pearl cotton and hot shrink ,but we can do according to your requirements |
| 8.Certification: | ISO9001,ISO14001,CE. |
| 9.Standard: | China high precision GB5237-2008 |
Yatai Aluminium Profile Technical Standard:
Yatai Aluminium Profile Chemical Composition(%)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Aluminium |
| 6061 | 0.40-0.80 | 0.70 | 0.15-0.40 | 0.15 | 0.80-1.20 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | remainder |
| 6063 | 0.2-0.60 | 0.35 | 0.10 | 0.10 | 0.45-0.90 | 0.10 | 0.10 | 0.10 | 0.10 | remainder |
Yatai Mechanical Property
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 6063 | T5 | >160MPa | >110Mpa | >8% |
| 6063 | T6 | >205MPa | >180Mpa | >8% |
| 6061 | T6 | >265MPa | >245Mpa | >8% |
Yatai Aluminium Profile 's Surface Treatment Specification:
| Anodized | Oxide Layer (average thickness) | AA10 | ≥10μm |
| AA15 | ≥15μm | ||
| Electrophoretic Coating | Composite Layer(average thickness) | Level A | ≥21μm |
| Level B | ≥16μm | ||
| Powder Coating | Layer Hardness | ≥3H | |
| Gird Test | ≥0 | ||
| Minimum local thickness | ≥40μm | ||
| indentation hardness | ≥80 | ||
| Gird test | ≥0 |
Yatai Aluminium Profile Technical Standard:
Yatai Aluminium Profile Chemical Composition(%)
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Aluminium |
| 6061 | 0.40-0.80 | 0.70 | 0.15-0.40 | 0.15 | 0.80-1.20 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | remainder |
| 6063 | 0.2-0.60 | 0.35 | 0.10 | 0.10 | 0.45-0.90 | 0.10 | 0.10 | 0.10 | 0.10 | remainder |
Yatai Mechanical Property
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 6063 | T5 | >160MPa | >110Mpa | >8% |
| 6063 | T6 | >205MPa | >180Mpa | >8% |
| 6061 | T6 | >265MPa | >245Mpa | >8% |
Yatai Aluminium Profile 's Surface Treatment Specification:
| Anodized | Oxide Layer (average thickness) | AA10 | ≥10μm |
| AA15 | ≥15μm | ||
| Electrophoretic Coating | Composite Layer(average thickness) | Level A | ≥21μm |
| Level B | ≥16μm | ||
| Powder Coating | Layer Hardness | ≥3H | |
| Gird Test | ≥0 | ||
| Minimum local thickness | ≥40μm | ||
| indentation hardness | ≥80 | ||
| Gird test | ≥0 |

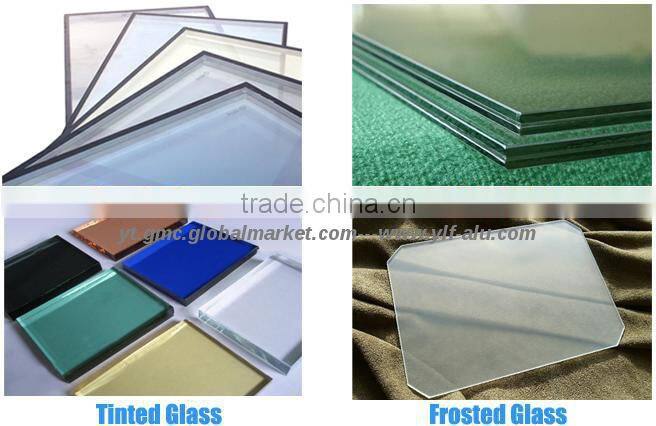

GLASS OPTIONS:
| Glass tyle | Tempered/frosted/reflective/Low-E glass/Tinted/Clear/Craft or with geometric- bar/ patterned glass//as customized |
| Single glass | -5/6/8/10 (clear/ tempered glass) |
| Mid-hollow glass | (5mm+9a+5mm)/(5mm+12a+5mm)/--(6mm+6a+6mm)/6+6A/9A/12A /27A+6mm |
| Laminated glass | 5+ 0.38/0.76/1.52PVB+5mm//6+0.76/1.14PVB+6mm |
Please Contact:
1.How do you charge the mold fee?
Incase we need to open new mold for your ordered profiles ,the mold fee will be refounded to customers when your order quantity reaches a certain amount.
2.How do you quote price ,per ton or per meter?
We provide more than two pricing modes
3.What is the differences between theoretical weight and actual weight?
Actual weight is the actual weight including packaging
Theoretical weight is identified according to the drawing,calculated by of the weight of each meter multiplied by the length of profile
4.How long it will take you to make samples?
1-2 days after the tools making in general.
