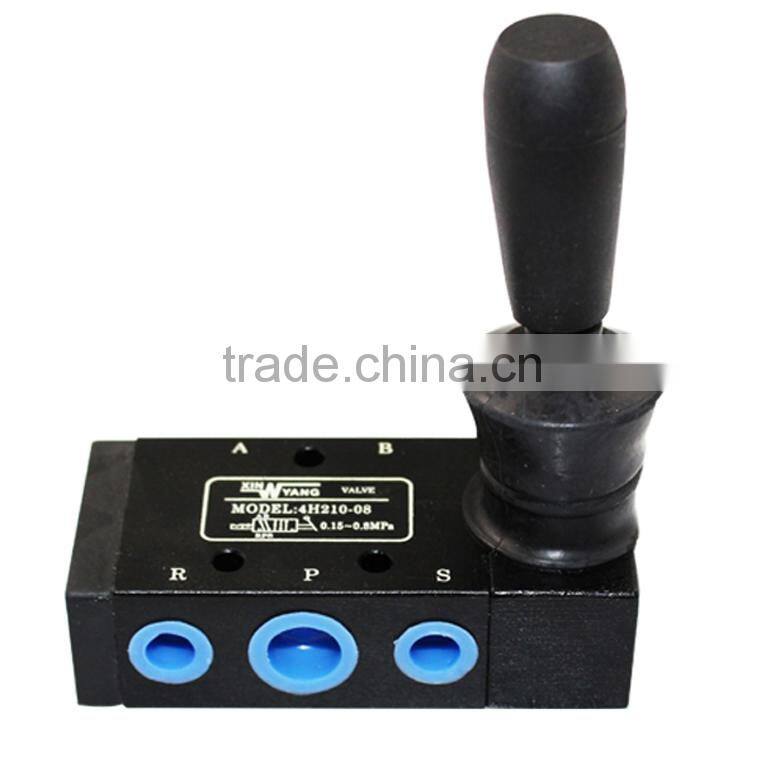

4H210 Hand Lever Valve
- Shenzhen Wuhan Shnghai etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2Q Little Flow Solenoid Valves 2 Way
-
Pneumatic Stainless Steel Angle Valve
-
5/2 Way Electromagnetic Valve 220v Ac, 0.17~0.7Mpa Solenoid Valve 220V AC
-
RMF-Z-20M Solenoid Pulse Valve, Pneumatic Pulse Valves
-
2P Series Plasic Mini Solenoid Valve 1/8" & 1/4"
-
Direct Action Normally Close 2/2 Way Solenoid Valve for Air/ Water/oil
Product Details
| Standard or Nonstandard | Standard | Structure | Pilot | |
| Pressure | Low Pressure | Power | Manual | |
| Material | Alloy | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | 1/4, 1/8'', 1/4'',3/8'' | |
| Place of Origin | Hubei, China | Model Number | 4H210 hand lever valve | |
| Brand Name | XIN YANG |
Product Description
5 way manual reserving valve, hand pull pneumatic valve
*Features of hand pull pneumatic valve*
*5/2 way hand pull pneumatic direction control valve.
*Fine precision,simple and sensitive operation, wide usage.
*Before mounting,check working system whether there is air leakage.
*Hand pull pneumatic valve working pressure: 0-70kgf/cm2.
*Hand pull pneumatic valve working temperature: 0-60°c.
*Ordering code of hand pull pneumatic valve*
*Specification of hand pull pneumatic valve*
| Model | 4H210-06 | 4H210-08 | 4H310-08 | 4H310-10 |
| Medium | Air | |||
| Acting type | Direct acting type | |||
| Orifice size | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.4) | 30mm2(CV=1.68) |
| Port size | inlet=outlet= exhaust=1/8'' | inlet=outlet=1/4'' exhaust=1/8'' | inlet=outlet= exhaust=1/4'' | inlet=outlet=3/8'' exhaust=1/4'' |
| Pressure range | 0~70bar | |||
| Operating temperature | 0~60°C | |||
| Lubrication | not required | |||
| Swing angle | ±15°c | |||
*Dimension of hand pull pneumatic valve*
Why to choose us?
1)We have own factory which has more than 150 enployees.We not only have advanced processing equipment,but also equipped with a consummate testing facilities and strong technical force.
2)We have sufficient stock for your purchase.
3)Our products packed with solid carton and wooden case.
*Regular Customers Come to Visit Our Factory*
*Delivery Method*
* Contacts *
Any question please contact us by mail, skype, trademanager or other ways.
Wuhan Xin Li Te Automation Engeneering Co.,Ltd.
tel: +8615071243060 fax: +8683389076
