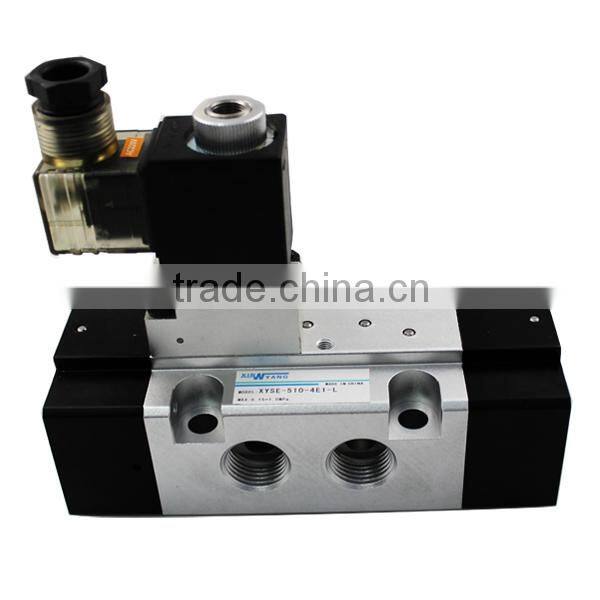

Pneumatic Contron System Five-way Two-position Solenoid Valve/Electromagnetic Valve
US$ 1 - 10
/ Set
1 Set(Min. Order)
- Wuhan Shenzhen Fuzhou etc
You May Like
-
High Quality SDA Series Compact Pneumatic Cylinder
-
4R310-10 5 Port Hand Control Valve, Manually Operated Valve
-
XY230422 Manual Pneumatic Valve /2 Way Pneumatic Manually Operated Valve
-
2W- Series Direct Acting Solenoid Valve /pneumatic Solenoid Valve
-
Q 23XD-2L Series 3/2 Solenoid Valve/ Pneumatic Control Valve /Pneumatic Valve
-
FV/4F Series 5/2 Way Foot Valve
Product Details
| Power | Pneumatic | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | PT1/2 | |
| Place of Origin | Hubei, China | Model Number | XYSE Series | |
| Brand Name | Xinyang |
Product Description
Specifications
Pneumatic Contron System Five-way Two-position Solenoid Valve/Electromagnetic Valve Pneumatic Contron System Five-way Two-position Solenoid Valve/Electromagnetic Valve
Features
1.Port size: PT1/2
2.Function: 5/2 way
3.Operating pressure:2-7kgf/cm2
4.Proof pressure: 10kgf/cm2
5.Ambient temperature: -5-50°c
6.Response time: 60ms
7.Voltage: AC110V, AC220V(50/60)HZ, DC24V

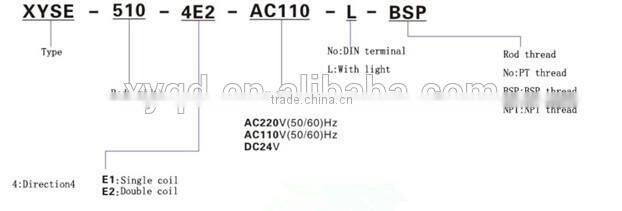

Ordering code

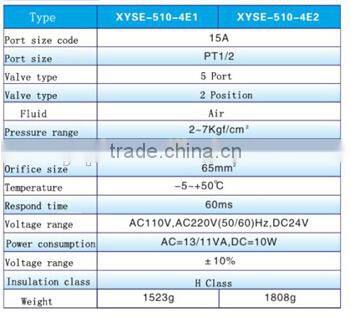

Parameter

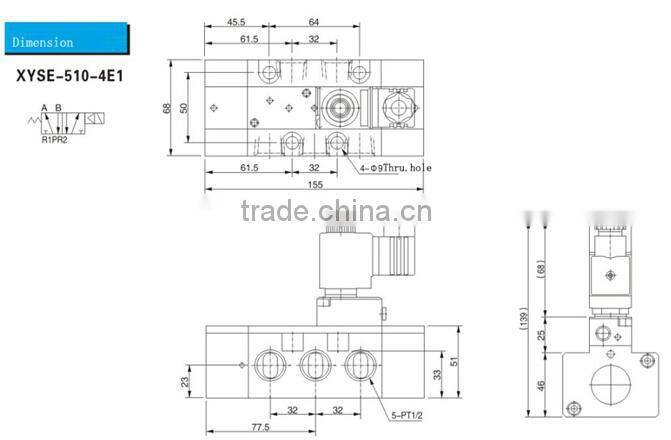

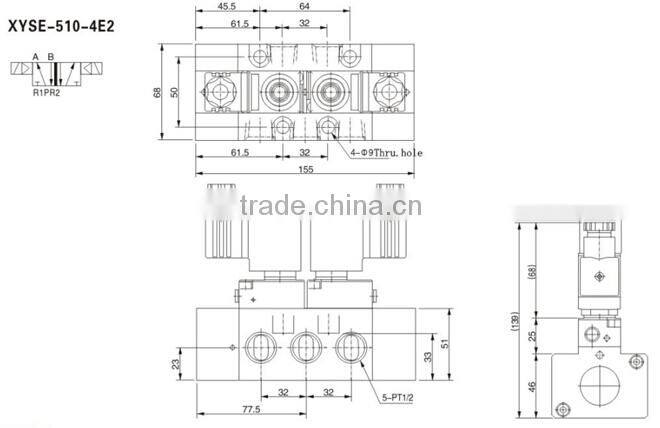

Dimension

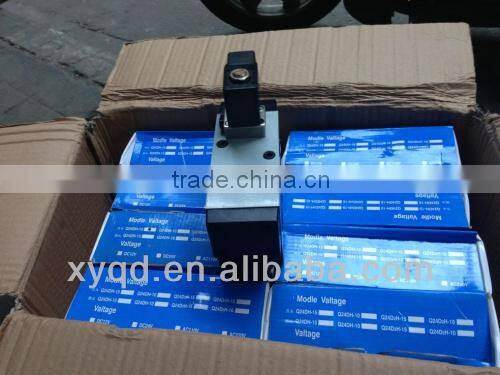

Package
