608 Ceramic Deep Groove Ball Bearing for Skateboard With Low Price
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Ceramic Deep Groove Ball Bearing With High Hybrid 690
-
Ceramic Deep Groove Ball Bearing With High Hybrid 6900series
-
High Preformance Ceramic Deep Groove Ball Bearing
-
High Preformance Ceramic Deep Groove Ball Bearing for Bilke
-
High Preformance Ceramic Deep Groove Ball Bearing Reliable Quality
-
608 zz Ceramic Deep Groove Ball Bearing Precision Skate
Product Details
| Brand Name | UMT | Bore Size | 4, 120 | |
| Outside Diameter | 9, 150 | Model Number | 6800/ 6900 / 6000/ 608, 684 CE | |
| Place of Origin | China |
Product Description

Specifications
Introduction:

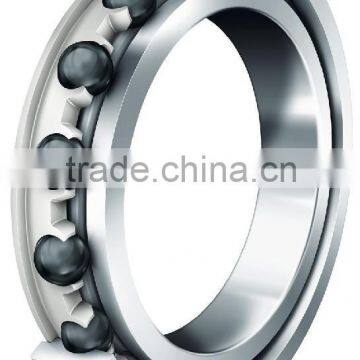

Deep groove ball bearings mainly bear radial load, it can also bear radial load and axial load at the
same time .When only the radial road,the contact Angle is zero. Its structure is simple, which
compared with other types is easy to achieve a higher manufacturing accuracy, so bearings of this
type are beneficial to produce on a large stock in series,.In addition,due to the low cost,it is widely
used in many industries.
1. | Parameter |
| ||
| Bearing NO. | d | D | B |
| 6800/6900/6000/608 | 10-120mm | 19-150mm | 3-16mm |
2. | Material | |||
| Chrome steel/carbon steel/stainless steel | |||
3. | Cage | |||
| Brass/steel/nylon | |||
4. | Certification | |||
| ISO 9001:2000 | |||
5. | Service | |||
| OEM | |||
6. | MOQ | |||
| 10 sets | |||

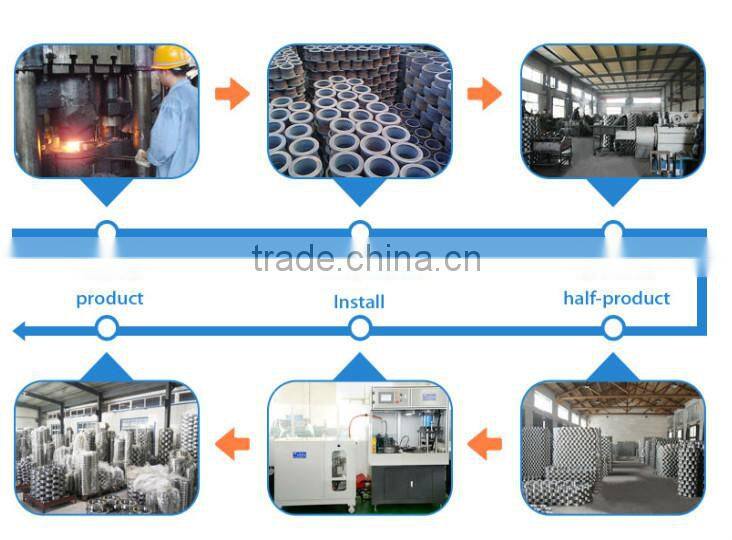

7. | Products process | |||
| We have complete process for the production and quality assurance to make sure our products can meet your requirement. | |||
8. | Package | |||
| A: tube package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle box+outer carton+pallets | |||
9. | Payment Term | |||
T/T,L/C,Western Union, Paypal, Money gram | ||||
| 10. | Price terms | |||
EXW,FOB,CFR,CIF,DDU | ||||

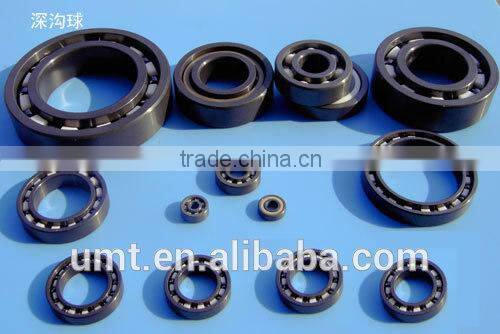

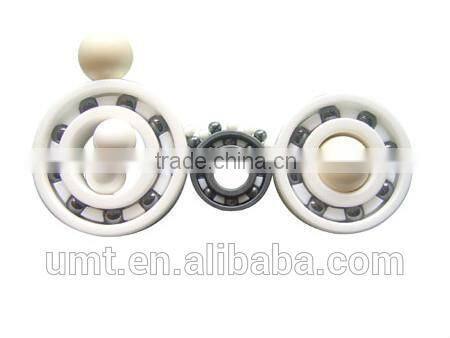

Different type of ceramic groove ball bearing
6800 Series Miniature Deep Groove Ball Bearing | |||||||||
N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
Cr | Cor | r/min | r/min | ||||||
685 | 5 | 11 | 3 | 0.15 | 0.715 | 0.282 | 35000 | 45000 | 0.0011 |
686 | 6 | 13 | 3.5 | 0.15 | 1.08 | 0.44 | 33000 | 42000 | 0.0019 |
687 | 7 | 14 | 3.5 | 0.15 | 1.17 | 0.505 | 31000 | 40000 | 0.0021 |
688 | 8 | 16 | 4 | 0.2 | 1.61 | 0.715 | 29000 | 38000 | 0.0031 |
689 | 9 | 17 | 4 | 0.2 | 1.72 | 0.82 | 28000 | 36000 | 0.0032 |
6800 | 10 | 19 | 5 | 0.3 | 1.83 | 0.925 | 26000 | 34000 | 0.005 |
6801 | 12 | 21 | 5 | 0.3 | 1.92 | 1.04 | 22000 | 30000 | 0.006 |
6802 | 15 | 24 | 5 | 0.3 | 2.08 | 1.26 | 20000 | 28000 | 0.007 |
6803 | 17 | 26 | 5 | 0.3 | 2.23 | 1.46 | 19000 | 26000 | 0.008 |
6804 | 20 | 32 | 7 | 0.3 | 4 | 2.47 | 17000 | 22000 | 0.019 |
6805 | 25 | 37 | 7 | 0.3 | 4.3 | 2.95 | 15000 | 19000 | 0.022 |
6806 | 30 | 42 | 7 | 0.3 | 4.7 | 3.65 | 13000 | 17000 | 0.026 |
6807 | 35 | 47 | 7 | 0.3 | 4.9 | 4.05 | 11000 | 15000 | 0.029 |
6808 | 40 | 52 | 7 | 0.3 |
|
|
|
| 0.033 |
6900 Series Deep Groove Ball Bearing | |||||||||
N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
Cr | Cor | r/min | r/min | ||||||
693 | 3 | 8 | 3 | 0.15 | 0.56 | 0.18 | 44000 | 52000 | 0.0006 |
694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 38000 | 47000 | 0.0018 |
695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 34000 | 43000 | 0.0024 |
696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 32000 | 40000 | 0.0038 |
697 | 7 | 17 | 5 | 0.3 | 1.61 | 0.715 | 30000 | 38000 | 0.0052 |
698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 28000 | 36000 | 0.0073 |
690 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 27000 | 34000 | 0.0082 |
6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 25000 | 32000 | 0.009 |
6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 20000 | 28000 | 0.011 |
6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 19000 | 26000 | 0.016 |
6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 18000 | 24000 | 0.018 |
6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 14000 | 18000 | 0.042 |
6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 12000 | 16000 | 0.048 |
6907 | 35 | 55 | 10 | 0.3 | 9.55 | 6.85 | 10000 | 14000 | 0.074 |
6000 Series Miniature Deep Groove Ball Bearing | |||||||||
N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm | mm | mm | mm | Dynamic | Static | Grease | Oil | Kg/pcs | |
Cr | Cor | r/min | r/min | ||||||
604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
6007 | 35 | 62 | 14 | 1 | 16 | 10.3 | 10000 | 14000 | 0.115 |
6008 | 40 | 68 | 15 | 1 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |

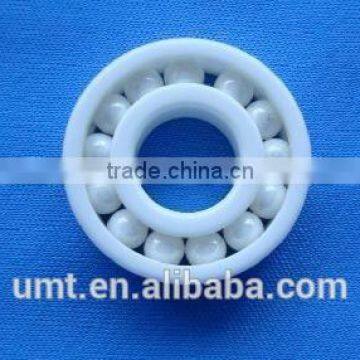

Specification of skateboard ceramic deep groove ball bearing
| Bearing No. | Boundary dimensions(mm) | Mass(kg) | (refer) | ||
| d | D | B | ZrO2 | Si3N4 | |
| 688CE | 8 | 16 | 4 | 0.0025 | 0.0014 |
| 689CE | 9 | 17 | 4 | 0.0027 | 0.0015 |
| 6800CE | 10 | 19 | 5 | 0.004 | 0.0021 |
| 6801CE | 12 | 21 | 5 | 0.005 | 0.0025 |
| 6802CE | 15 | 24 | 5 | 0.005 | 0.0029 |
| 6803CE | 17 | 26 | 5 | 0.005 | 0.0029 |
| 6804CE | 20 | 32 | 7 | 0.013 | 0.007 |
| 6805CE | 25 | 37 | 7 | 0.016 | 0.009 |
| 6806CE | 30 | 42 | 7 | 0.018 | 0.01 |
| 6807CE | 35 | 47 | 7 | 0.021 | 0.011 |
| 6907CE | 35 | 55 | 10 | 0.058 | 0.031 |
| 6808CE | 40 | 52 | 7 | 0.02 | 0.013 |
| 6809CE | 45 | 58 | 7 | 0.029 | 0.016 |
| 6810CE | 50 | 65 | 7 | 0.038 | 0.021 |
| 6811CE | 55 | 72 | 9 | 0.06 | 0.03 |
| 6812CE | 60 | 78 | 10 | 0.08 | 0.04 |
| 6813CE | 65 | 85 | 10 | 0.1 | 0.05 |
| 6814CE | 70 | 90 | 10 | 0.1 | 0.056 |
| 6314CE | 70 | 150 | 35 | 1.98 | 1.07 |
| 6815CE | 75 | 95 | 10 | 0.11 | 0.06 |
| 6816CE | 80 | 100 | 10 | 0.12 | 0.063 |
| 6817CE | 85 | 110 | 13 | 0.2 | 0.11 |
| 6818CE | 90 | 115 | 13 | 0.21 | 0.12 |
| 6819CE | 95 | 120 | 13 | 0.23 | 0.12 |
| 6820CE | 100 | 125 | 13 | 0.24 | 0.13 |
| 6821CE | 105 | 130 | 13 | 0.25 | 0.14 |
| 6822CE | 110 | 140 | 16 | 0.38 | 0.21 |
| 6824CE | 120 | 150 | 16 | 0.41 | 0.22 |
| 694CE | 6804CE | 689CE | 687CE | 6807CE | 6301CE |
| 604CE | 6904CE | 699CE | 697CE | 6907CE | 6802CE |
| 624CE | 6004CE | 609CE | 607CE | 16007CE | 6902CE |
| 634CE | 6204CE | 629CE | 627CE | 6007CE | 6002CE |
| 685CE | 6304CE | 639CE | 637CE | 6207CE | 6202CE |
| 695CE | 6805CE | 6800CE | 688CE | 6808CE | 6302CE |
| 605CE | 6905CE | 6900CE | 698CE | 6908CE | 6803CE |
| 625CE | 6005CE | 6000CE | 608CE | 16008CE | 6903CE |
| 635CE | 6205CE | 6200CE | 628CE | 6008CE | 6003CE |
| 686CE | 6305CE | 6300CE | 638CE | 6208CE | 6203CE |
| 696CE | 6806CE | 6801CE | 6909CE | 6809CE | 6303CE |
| 606CE | 6906CE | 6901CE | 16009CE | 6009CE | 6910CE |
| 626CE | 6006CE | 6001CE | 636CE | 6206CE | 6201CE |

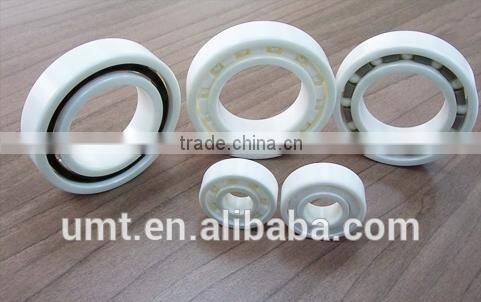

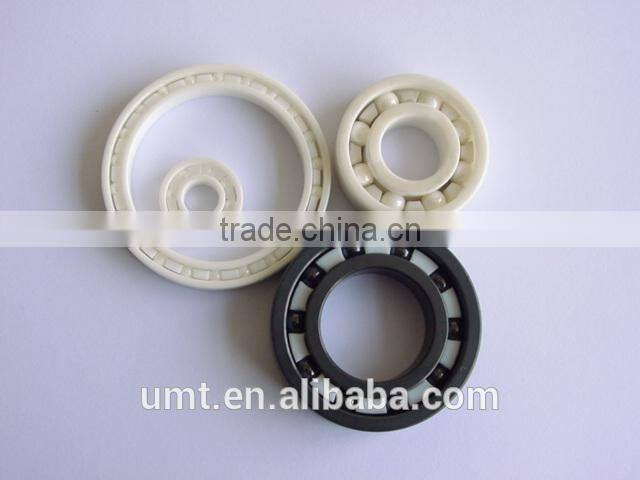

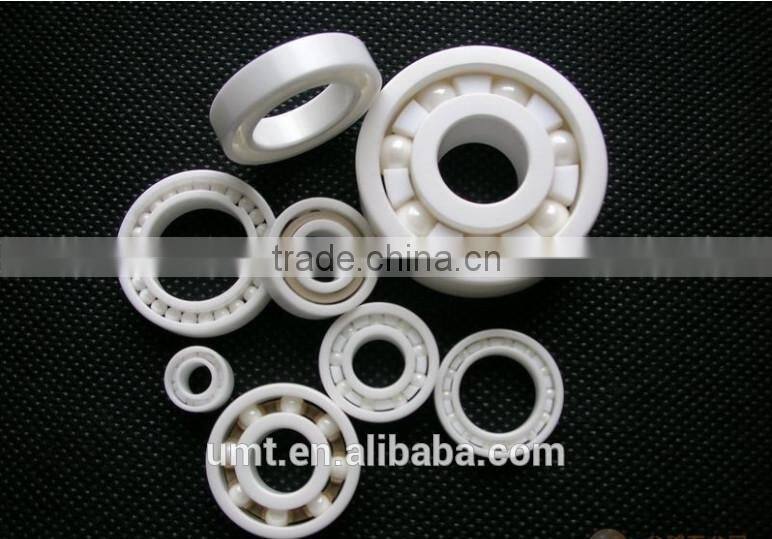

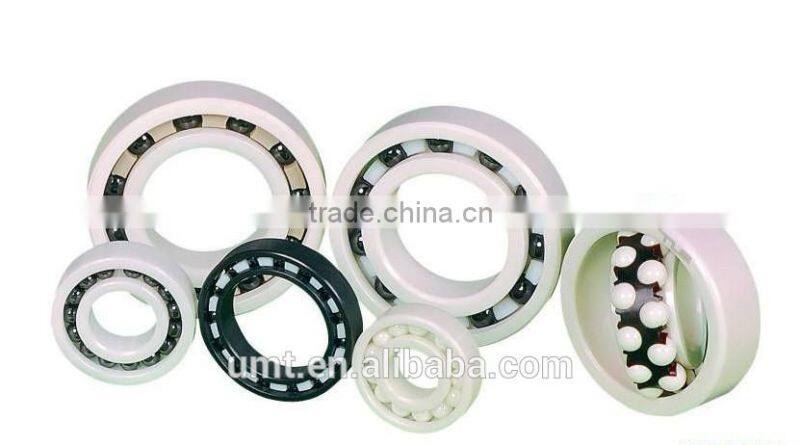

ceramic groove ball bearing
Shenzhen Youmeite Berings CO., ltd is branch company of shandong UMT bearing corporation responsible for oversea marketing. Our plant shandong UMT has been working in the filed of bearing design and manufacturing for more than 10years now is taking a leading position in mainland china. Our plant has more than 500 employees , including 30 bearing professional techincians; more than 600 new bearing items can be completed each year. we can produce all kinds of bearing as customer's requirement

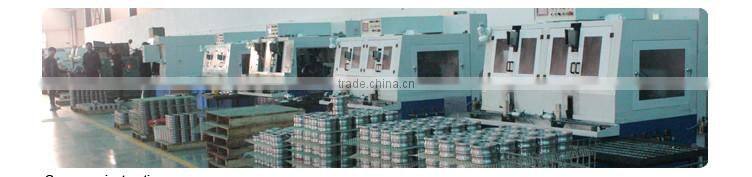

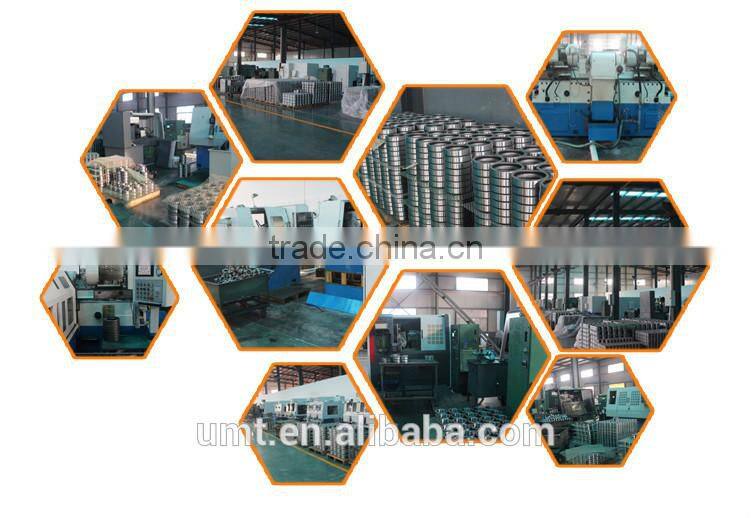

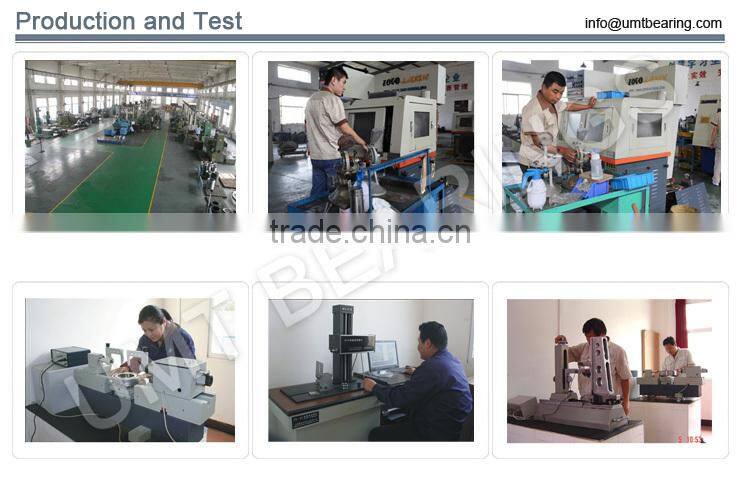

Our Factory
company certificate
