Made in China Ceramic Ball Bearing 6305 Bearings

FOB Price

US$ 5 - 50 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

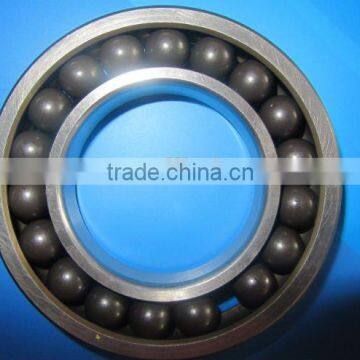

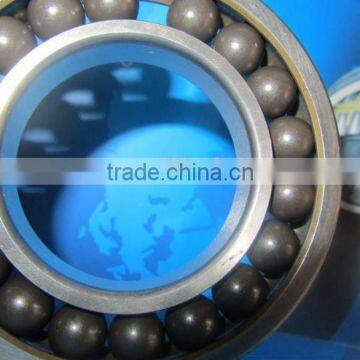

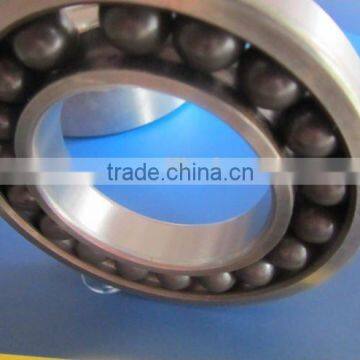

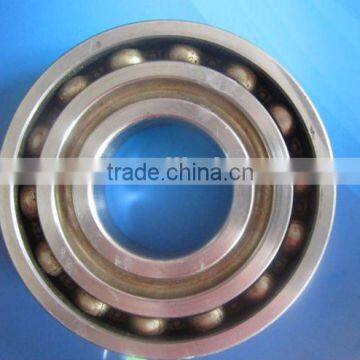

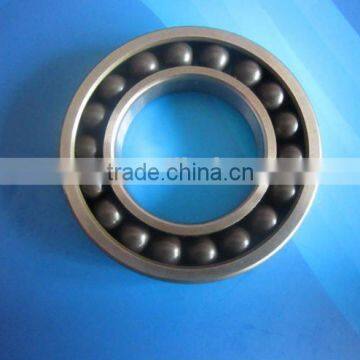

Made in china ceramic ball bearing 6305 bearings

Product Description

Specifications

Introduction:

Deep groove ball bearings mainly bear radial load, it can also bear radial load and axial load at the

same time .When only the radial road,the contact Angle is zero. Its structure is simple, which

compared with other types is easy to achieve a higher manufacturing accuracy, so bearings of this

type are beneficial to produce on a large stock in series,.In addition,due to the low cost,it is widely

used in many industries.

1.	Parameter
	Bearing NO.	d	D	B
	6800/6900/6000/608	10-120mm	19-150mm	3-16mm
2.	Material
	Chrome steel/carbon steel/stainless steel
3.	Cage
	Brass/steel/nylon
4.	Certification
	ISO 9001:2000
5.	Service
	OEM
6.	MOQ
	10 sets
7.	Products process
	We have complete process for the production and quality assurance to make sure our products can meet your requirement. 1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention 9.Product packaging
8.	Package
	A: tube package+outer carton+pallets B: single box+outer carton+pallets C: tube package+middle box+outer carton+pallets D: according to your requirement
9.	Payment Term
	T/T,L/C,Western Union, Paypal, Money gram
10.	Price terms
	EXW,FOB,CFR,CIF,DDU

Different type of ceramic groove ball bearing

6800 Series Miniature Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
685	5	11	3	0.15	0.715	0.282	35000	45000	0.0011
686	6	13	3.5	0.15	1.08	0.44	33000	42000	0.0019
687	7	14	3.5	0.15	1.17	0.505	31000	40000	0.0021
688	8	16	4	0.2	1.61	0.715	29000	38000	0.0031
689	9	17	4	0.2	1.72	0.82	28000	36000	0.0032
6800	10	19	5	0.3	1.83	0.925	26000	34000	0.005
6801	12	21	5	0.3	1.92	1.04	22000	30000	0.006
6802	15	24	5	0.3	2.08	1.26	20000	28000	0.007
6803	17	26	5	0.3	2.23	1.46	19000	26000	0.008
6804	20	32	7	0.3	4	2.47	17000	22000	0.019
6805	25	37	7	0.3	4.3	2.95	15000	19000	0.022
6806	30	42	7	0.3	4.7	3.65	13000	17000	0.026
6807	35	47	7	0.3	4.9	4.05	11000	15000	0.029
6808	40	52	7	0.3					0.033
6900 Series Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
693	3	8	3	0.15	0.56	0.18	44000	52000	0.0006
694	4	11	4	0.15	0.715	0.276	38000	47000	0.0018
695	5	13	4	0.2	1.08	0.43	34000	43000	0.0024
696	6	15	5	0.2	1.35	0.53	32000	40000	0.0038
697	7	17	5	0.3	1.61	0.715	30000	38000	0.0052
698	8	19	6	0.3	1.99	0.865	28000	36000	0.0073
690	9	20	6	0.3	2.48	1.09	27000	34000	0.0082
6900	10	22	6	0.3	2.7	1.27	25000	32000	0.009
6901	12	24	6	0.3	2.89	1.46	20000	28000	0.011
6902	15	28	7	0.3	3.65	2	19000	26000	0.016
6903	17	30	7	0.3	4.65	2.58	18000	24000	0.018
6904	20	37	9	0.3	6.4	3.7	17000	22000	0.036
6905	25	42	9	0.3	7.05	4.55	14000	18000	0.042
6906	30	47	9	0.3	7.25	5	12000	16000	0.048
6907	35	55	10	0.3	9.55	6.85	10000	14000	0.074

6000 Series Miniature Deep Groove Ball Bearing
N0.	Bore	O.D	Width	Chamfer	Load Rating		Maximuum Seed		Weight
	mm	mm	mm	mm	Dynamic	Static	Grease	Oil	Kg/pcs
	mm	mm	mm	mm	Cr	Cor	r/min	r/min	Kg/pcs
604	4	12	4	0.2	0.97	0.36	36000	44000	0.0021
605	5	14	5	0.2	1.33	0.505	32000	40000	0.0035
606	6	17	6	0.3	2.19	0.865	30000	38000	0.006
607	7	19	6	0.3	2.24	0.91	28000	36000	0.008
608	8	22	7	0.3	3.35	1.4	26000	34000	0.012
609	9	24	7	0.3	3.4	1.45	24000	32000	0.014
6000	10	26	8	0.3	4.55	1.96	22000	30000	0.019
6001	12	28	8	0.3	5.1	2.39	19000	26000	0.021
6002	15	32	9	0.3	5.6	2.83	18000	24000	0.03
6003	17	35	10	0.3	6.8	3.35	17000	22000	0.039
6004	20	42	12	0.6	9.4	5.05	15000	19000	0.069
6005	25	47	12	0.6	10.1	5.85	14000	18000	0.08
6006	30	55	13	0.6	13.2	8.3	12000	15000	0.116
6007	35	62	14	1	16	10.3	10000	14000	0.115
6008	40	68	15	1	16.8	11.5	8000	11000	0.19

Specification of skateboard ceramic deep groove ball bearing

ceramic groove ball bearing
