Home > Products > New Products > GY-22N10 2.2MM Yellow/green Nylon Base Power Transmission Belt Ring Spinning Frames Belt

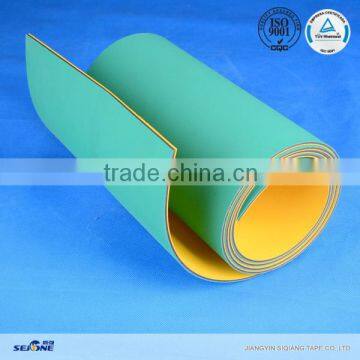

GY-22N10 2.2MM Yellow/green Nylon Base Power Transmission Belt Ring Spinning Frames Belt
US$ 10 - 50
/ Square Meter
50 Square Meters(Min. Order)
- SHANGHAI
- Credit Card
You May Like
-
Rubber Flat Transmission Belt for Twisters
-
Schlafhorst OE Machine Flat Transmission Belt
-
3mm Thick Green Yellow High Speed Rubber Nylon Transmission Belt
-
Weary Resistant Rubber Transmission Belt for High Speed Air Jet Spinning Machine
-
3.2mm Nylon Flat Belt for Machine
-
1.0mm TPU/PUR Material Tensile Belt High Quality Conveyor Belts Power Transmission Belt for Paper Printing Machinery
Product Details
| Standard or Nonstandard | Nonstandard | Type | Flat Belt | |
| Material | Nylon | Place of Origin | Jiangsu, China | |
| Brand Name | SEJONE | Model Number | GY-22N10 |
Product Description
Specifications
Oil resistant,abrasion resistant,
high flexibility,
no distortion.
Product Description
- APPLICATION FIELD: Ring spinning frames, Crimper machine, Double twister, etc.
- FEATURES: Abrasion resistant, Frictional coefficient almost keeps at a constant level .
- TECHNICAL DATA
| ITEM NO. | GY-22N10 | ANTISTATIC | NO |
| THICKNESS (MM) | 2.2 | TRACTION LAYER MATERIAL | PA |
| BELT WEIGHT (KG/M2) | 2.596 | FRICTION COVER MATERIAL | NBR |
| MANUFACTURING WIDTH (MM) | 500 | FRICTION COVER COLOR | YELLOW |
| TENSILE FORCE FOR 1% ELONGATION PER UNIT OF WIDTH (N/MM) | / | REVERSE COVER MATERIAL | NBR |
| MIN PULLEY DIAMETER (MM) | / | REVERSE COVER COLOR | GREEN |
| WORKING TEMPERATURE (OC) | -20~80 | JOINING METHOD | THERMOFIX |
- DETAILED IMAGES
Packaging & Shipping
- PACKAGING
- Put the paper tube inside.
- Transparent plastic film applied. To protect belts from damp environment.
- Bubble plastic film applied. To prevent belts from pressure and squeeze.
- The outer packing: Durable woven bag or customized wooden case.
- SHIPPING
- FOB ShangHai.
- FCA anywhere of China.
- CIF anywhere.
Company Information
- Our factory was established in 2003. We have more than 11 years' experience in this business.
- We specialized in the production of Power transmission belt, Conveyor belt, Machine tapes, Spindle tapes, Folder-gluer belts and Seamless belts. These belts are widely used in Textile industry, Paper and Printing industry, Packaging machinery, Wood-processing, Food and Tobacco industry, Parcel and Mail sorting,etc.
- We are in conformity with ISO 9001:2008 standard.
- We are manufacturer as well as exporter. We can help you to lower your purchase cost.
- We have new products development. --- Self-owned lab and annually new products scheme.
- We have very good geographic advantage. --- We are only 2 hours away from Shanghai.
Our Services
- Samples available.
- Joints making --- Flexproof, Thermofix, Fast-joining, Steel buckles.
- Punching, Crosspiece, rubber bars, rubber baffles etc.
- We provide OEM service, ODM service and OBM service.
Recommend products
ITEM NO. | THICK NESS (MM) | TRAC TION LAYER | REVERSE COVER COLOR | REVERSE COVER MATERIAL | FRICTION COVER COLOR | FRICTION COVER MATERIAL | JOINING METHOD | ANTI STATIC | TEMPERA TURE (OC) | MAX WIDTH (MM) |
GY-10N3 | 1.0 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-12N3 | 1.2 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-15N5 | 1.5 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-20N8 | 2.0 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-20N6 | 2.0 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-22N10 | 2.2 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-25N10 | 2.5 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-25N8 | 2.5 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-25N12 | 2.5 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-30N10 | 3.0 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-32N12 | 3.2 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-30N15 | 3.0 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-35N15 | 3.5 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-40N10 | 4.0 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-40N15-A | 4.0 | PA | Green | NBR | Light yellow | NBR | Thermofix | YES | -20~80 | 500 |
GY-50N12 | 5.0 | PA | Green | NBR | Yellow | NBR | Thermofix | NO | -20~80 | 500 |
GY-25N12-A | 2.5 | PA | Green | NBR | Light yellow | NBR | Thermofix | YES | -20~80 | 500 |
GY-35N15-A | 3.5 | PA | Green | NBR | Light yellow | NBR | Thermofix | YES | -20~80 | 500 |
