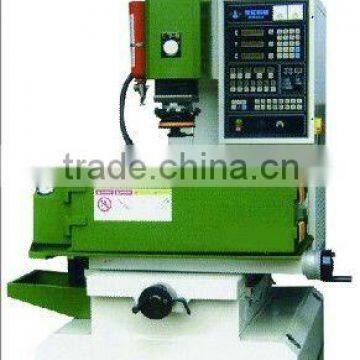

EDM Sinking Machine

FOB Price

US$ 3,000 - 6,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Place of Origin	Zhejiang, China	Brand Name	TOSUNNY
Model Number	D7120	Voltage	380V
Power(W)	2kw	Dimension(LWH)	1200x1000x1800mm
Weight	700kg	Certification	ISO
Warranty	1 Year	After-sales Service Provided	Engineers available to service machinery overseas

EDM Machine

Time saving,energy saving.

Creative electric pulse machining with high efficiency.

High quality,high precision,high efficiency.

Adopting high precision DC servomotor

With the function of PC hand wheel, it is easier to remove the machine

Adopting the prepressing high precision bearing working in high precision ball screw, with good rigidity.

Mechanical Parameter And Specification	D7120
X,Y travel size mm	200x160
Working table size mm	400x250
Principal axis travel mm	200
Principal axis load kg	25
Max. workpiece weight kg	150
Chief axis connect board to working table mm	420
Work tank internal size mm	650x400x230
Weight kg	700
Dimensions mm	1200x1000x1800
Electric Cabinet Parameter and Specification	20AMP
Max Processing Current A	20
Max Processing Speed mm/min	100
Min Electrode Consumption	≤0.2%
Optinum roughness um	Ra<0.3
Max power Consumption kw	2
