CNC wire straightening and cutting machine EDM

CNC wire straightening and cutting machine EDM

Specifications

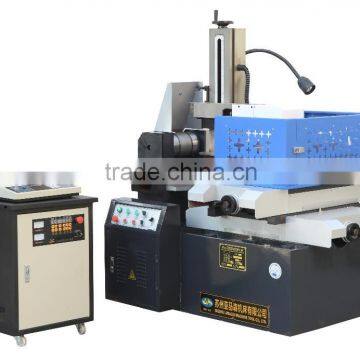

Wire cutting machine edm

wire edm cutting machine
High quality,High precision
Fast cutting speed
Reliable and stable

wire cutting machine edm for sale !!!

wire cutting machine edm    -Features:

1.Large travel , High cutting speed.
2.Four axes independent UV work.
3.Work pieces to 600mm thick.
4.Taper angles up to ± 30°.
5.Standard model is equipped with  ± 3° taper attachment.
6.Molybdenum wire diameter 0.12~0.22 mm (down to 0 .08mm).
7.Accuracy: 0.015mm, even 0.01mm.
8.Roughness: Ra 1.6-2.5 µm.
9.Low consumption, material saving.
10.Closed loop glass scales on all four axes for positional accuracy of 0.005mm.
11.Advanced CAD/CAM software with file transfer and translation capabilities.
12.High cutting speed modular is optional.

wire cutting machine edm   -Control system  ( HL, HF, W-Cut, A-Cut)


A)Microcomputer process control system
B)PC control system.
C)Luxury cabinet control.

 Optional:
1.Taper cutting accessory.  (± 15°, ± 30°)
2.Linear rail.
3.Protection cover.
4.Higher speed control board, improve the efficiency 30-40%.
5.Middle speed control system.
