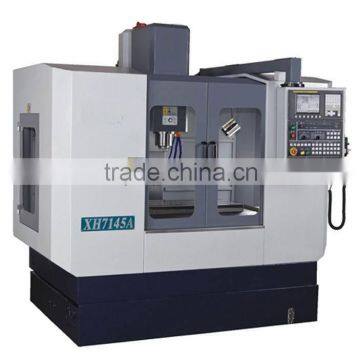

Sell-well CNC machining center / vertical type XH7145A

FOB Price

US$ 5,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Vertical, Maching Centre
Place of Origin	Zhejiang, China	Brand Name	TOSUNNY
Model Number	XH7145A	Voltage	380V,50Hz
Dimension(LWH)	250020002450mm	Weight	3400kg
Warranty	1 year	After-sales Service Provided	No overseas service provided

machining center:

SPECIFICATIONS

Specification	Unit	XK7145A
X-axis travel	mm	700
Y-axis travel	mm	450
Z-axis travel	mm	500
Spindle nose to table	mm	145-645
Spindle center to column guide-way face	mm	460
High speed feeding of X,Y axis	mm/min	12000
High speed feeding of Z axis	mm/min	10000
Feeding speed	mm/min	1-5000
Table size	mm	800×450mm (option:1000×450)
Max.loading capacity of table	kg	600
T-slot NO./width/distance of table		5/18/80
Spindle max.speed	r/min	8000
Main motor rated power	kw	5.5/7.5
Spindle nose taper		BT40
Positioning accuracy	mm	0.05(GB)0.02(Real)
Re-positioning accuracy	mm	0.02(GB)0.012(Real)
Pneumatic press	mpa	0.6
N.W	kg	3400
Overall dimension	mm	2500×2000×2450
Power supply		3 phase-380V-50Hz

Taizhou Taisen Mechanical Equipment Co., Ltd.: Contact namesarah yu
Chat Now; Phone86-576-84123368; AddressNO.7-18 Century Road West Street Huangyan Taizhou, Taizhou, Zhejiang
