Product Details
| Place of Origin | Zhejiang, China | Brand Name | TOSUNNY | |
| Model Number | KDVM1000L | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

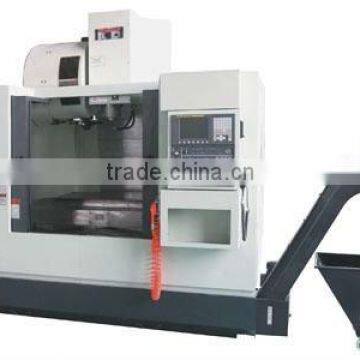

Vertical Machining Centers
PRODUCT FEATURES
1.wide base design with three sets of precision linear roller ways and 5sliding block on X and Y axes,and two sets of precision linear roller ways and 6sliding blocks on Z axis.The machines aresuitable for both rough and finish machine because of high rigidity ,precision and stability.
2.Ball screw's driving end equipped with 4precision angular contact ball bearing and the other end with 3ones,ball screw pre-extended.
3.Spindle supported by 5precision angular contact ball bearing.With good rigidity for cutting.
4.Turning area can be supplied with full coolant.
TECHNICAL SPECIFICATIONS
ITEMS | KDVM800LA | KDVM800LH | KDVM1000LA | KDVM1000LH | |||
X travel | 800 mm | 1000 mm | |||||
Y travel | 510mm | ||||||
Z travel | 510 mm | ||||||
Distance between spindle center and column guide way | 650 mm | ||||||
Distance between spindle end and table | 155-665 mm | ||||||
Table size | 950×510 mm | 1130×510 mm | |||||
Max. Table load | 600 Kg | ||||||
T-slot(width× number ×space) | 18×5×100mm | ||||||
Taper bore of spindle | B-T40 | ||||||
Spindle speed | 8000 rpm | ||||||
Main motor power | 7.5/11KW | 11/15kw | |||||
Cutter removal from spindle | pneumatic | ||||||
X,Y travel speed | 0-30m/min | 0-36m/min | 0-30m/min | 0-36m/min | |||
Z travel speed | 0-24m/min | 0-30m/min | 0-24m/min | 0-30m/min | |||
X,Y,Z motor torque | 12Nm | ||||||
Repeatability(X/Y/Z) | ±0.003mm | ||||||
Tool number | Vertical type:24 | ||||||
Max. tool size (with adjacent tool) | Ø80 mm(Vertical type) | ||||||
Max. tool size(without adjacent tool) | Ø130 mm(Vertical type) | ||||||
Max. tool length | 300mm(Vertical type) | ||||||
Tool changing time(cut to cut) | 2s(Vertical type) | ||||||
Min. displacement (X/Y/Z) | 0.001mm | ||||||
Min. input (X/Y/Z) | 0.001 mm | ||||||
Overall dimensions(L×W×G) | 3950×2100×2600mm | ||||||
Net weight | 5200kg | 5500kg | |||||
