cantilever cutting machine

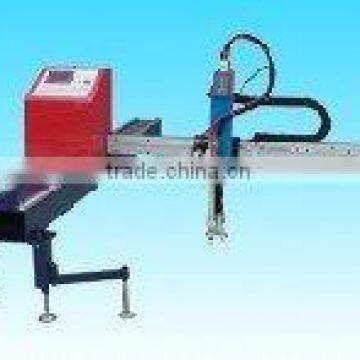

Smart cantilever cutting machine ZLQ-8

Small Cantilever structure,
effective cutting width 1.4m,
Rail length:1.5m,2m,2.5m,3m,3.5m abd so on,can be put on plate to cut,or put aside to cut.

Main technical parameter

cross beam:1600mm
effective cutting width:1400mm
rail length:3000mm
effective cutting length:2200mm
flame cutting torch:1 set
flame cutting thickness:6-200mm
plasma cutting torch:1 set
plasma cutting thickness:depend on plasma source moving Precision:0.01mm/ stepcutting Speed:3500mm/min
drive mode:single drive
cutting torch Elevation Height:0-150mm

Main features:
1.Cantilever type,good stability, large span;
2.Flame&plasma cutting,automatic height adjustjing system can be configurated;
3.Electromagnetic motors for transversal,lognitudinal movement,rail can be lengthened;
4.Self-developed CNC system with top stability and antijamming capability. English Operation Interface,can change CAD graph into cutting code. Prepositive USB Interface.Non-seal graph process,supports Common Cutting.
5.Beam:linear guide,reduce wear,can assure cutting accuracy.

Technical Indexes:
1.Cutting shape:can cut any flat shape steel-metal part composed by line&arc;
2.Cutting precision:national standard JB/T10045.3-99;
3.Cutting width:0~1400mm;
4.cutting length:standard 3m, can be lengthened;
5.Drive mode:single drive;
6.Torch:standard 1 set(flame/plasma),torch quantity can be tailored;
7.Cutting thickness:flame:maximum:200mm, plasma:depends on plasma source;
8.Ignition&THC:autoignition,Electric torch height controller;
9.CNC syetem:LANSUN III self-developed, easy-to-use, reliable performance;
10.NC Programming:full-automatic graphical programming software based on AutoCAD;
11.cutting gas:oxygen+acetylene/propane
