SAIP / SAIPWELL Low Frequency Current Transformer ( LMK2-0.66/SDH-0.66 )
- Shanghi or Ningbo
- T/T
You May Like
-
SAIP / SAIPWELL pr Current Transformer ( LMK2-0.66/SDH-0.66 )
-
SAIP / SAIPWELL mr Current Transformer ( LMK2-0.66/SDH-0.66 )
-
SAIP / SAIPWELL Current Transformer Relays ( LMK2-0.66/SDH-0.66 )
-
SAIP / SAIPWELL 120v Current Transformer ( LMK2-0.66/SDH-0.66 )
-
2013 HOT SALE GERMAN-STYLE MECHANICAL TIMER WITH ROHS CE GS
-
2013 NEW 24HOURS IP20 GERMAN-STYLE MECHANICAL TIMER
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Saip / Saipwell | |
| Model Number | LMK/SDH series | Usage | Current | |
| Phase | Single | Coil Structure | Toroidal | |
| Coil Number | Autotransformer |
Product Description
SAIP / SAIPWELL low frequency current transformer ( LMK2-0.66/SDH-0.66 )
1. Specification:
low frequency current transformer
1.BS7626, IEC44-1
2.High accuracy >=0.5%
3.Excellent phase and ratio error
2. Features:
Microprocessor control ; Built-in DC start function enables UPS to be started up without AC ; power supplied ; Smart RS-232 communication port ; Auto charge even though UPS is off ; Provides discharge ; Overcharge, and overload protection;low frequency current transformer
3. Applications:
Primary current: 100A-5000A
Secondary approval: 5A, 1A
Standard current: BS7626, IEC44-1
Maximum voltage: 0.72KV
Frequency: 50-60Hz
Rated load: 2.5VA-60VA
Class: 0.5, 1.0, 3.0
Short-time thermal current: Ith=100 Ih
Rated security coefficient: FS<5
High fire retardancy and security
Wide range of sizes to accommodate all the existing installations
low frequency current transformer
4. Outline Drawing :
low frequency current transformer

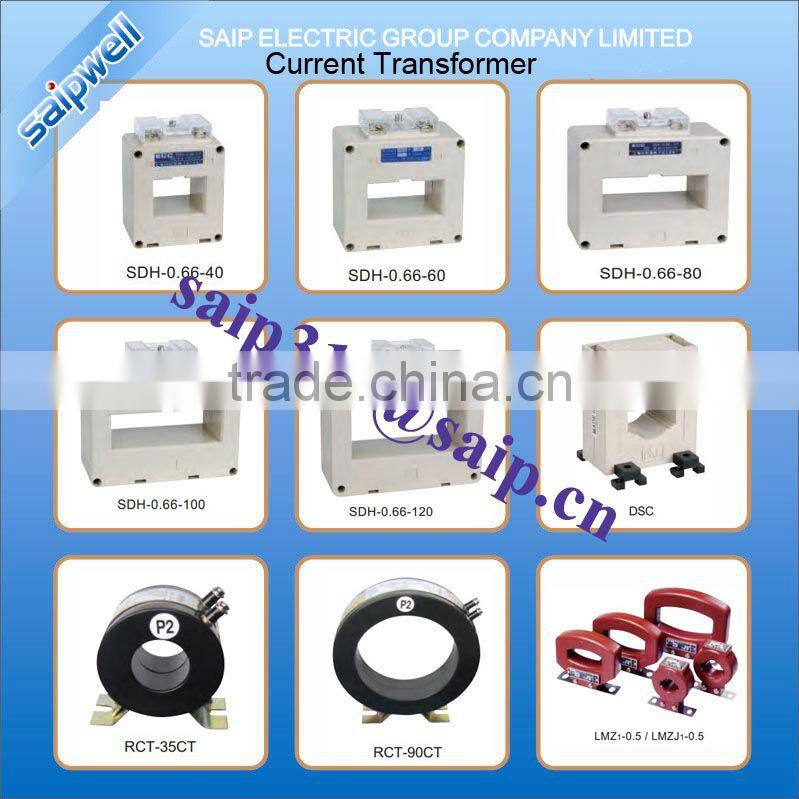

5. Display of Our SDH Series :
low frequency current transformer
6. Other Similar Production for Reference :
low frequency current transformer
7. About Our Company :
More products,you can visit our web : to check.
