2 Megapixel Full HDcctv Camera

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

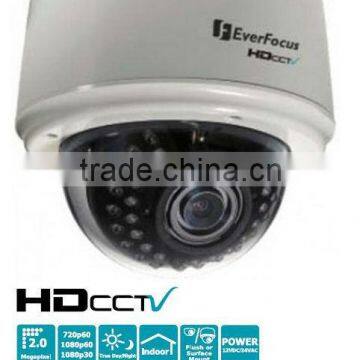

2 Megapixel 1080/720 HDcctv
3-Axis Indoor IR Color Dome Camera
with Surface or Flush Mount Capability
Certificates:CE, FCC

Features

• HDcctv 2 Megapixel real-time 1920x1080 (or 1280x720) HD video over coax

• 2 Megapixel progressive scan CMOS sensor

• Supports video outputs of 1080i, 1080p and 720p (field select)

• True Day/Night operation with automatic ICR module

• 3-Axis positioning for flexible mounting and aiming

• 3.3~10mm AI VF megapixel lens captures the desired field of view

• Field select choice of wall or ceiling, surface or flush mounting

• Easy to use OSD setup menu

• Dual Video Outputs: Megapixel HDcctv (BNC) SD TV Out (BNC) for aim and focus using a standard hand held test monitor

• Dual Power Source 12VDC/24VAC dual voltage auto polarity detect

Specifications

Pickup Device	1/2.7" 2 Megapixel CMOS sensor
Sensitivity	0.5 Lux/F=1.3; 0 Lux IR ON
S/N Ratio	39dB
video Format Main Output	HDcctv / SMPTE 292M
Resolution Main Output	1920x1080 or 1280x720
Video Mode Main Output	Field select 1080i60, 1080p30 or 720p60 for 60Hz systems 1080i50, 1080p25 or 720p50 for 50Hz systems
Main Output Connector	BNC-F
Video Format Test Output	NTSC/PAL selectable 1V p-p
Test Output Connector	Pin header; adapter cable to BNC-F supplied
Electronic Shutter	Auto, 1/60(1/50)~1/8,000
Lens Type	Vari-Focal lens, Auto Iris, f=3.3~10mm, F=1.3
True Day/Night Control	Yes (Auto IR cut filter removal)
Back Light Compensation	On/Off selectable
Auto Gain Control	High/Middle/Low/Off selectable
Auto White Balance	AWB / One Push WB / Manual WB / Indoor / Outdoor selectable
Gamma Correction	PC/TV selectable
OSD Menu	Yes (operated from 5-axis joystick control)
Mirror	H_MIR / V_MIR / Rotate
IR Distance	20m/65 ft.
IR Wavelength	850nm
Power Source	12VDC/24VAC auto polarity detect
Power Consumption	24VAC: 9W max. (500mA nominal, IR on) 12VDC: 7W max. (500mA nominal, IR on)
Operating Temperature	0°C~40°C / 32°F~104°F (20%~80% Humidity)
Dimensions (Φ x H)	Surface Type: 140 x 128mm/5.5” x 5.1” Flush Type: 140 x 68mm/5.5” x 2.8”
Weight	660g/1.45lbs
Certificates	CE, FCC

Dimensions
