Home > Products > New Energy Bus > WZL6101PHEVG 24-40 Seats Hybrid Bus

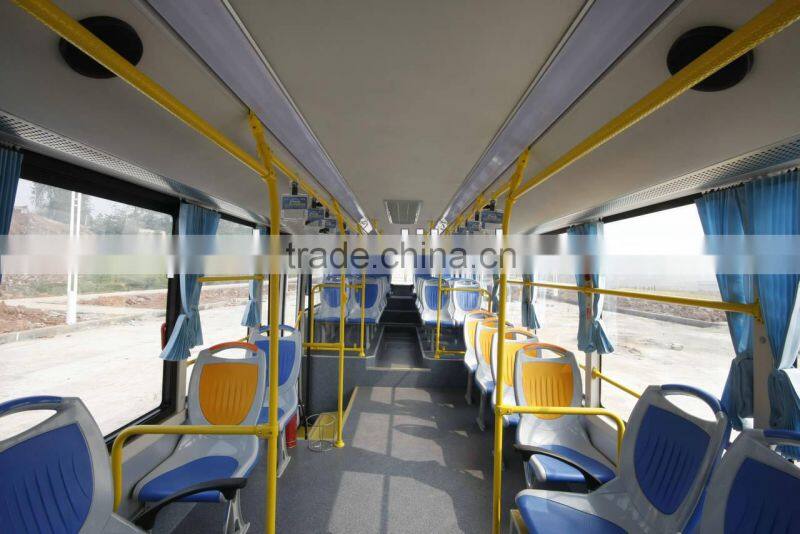

WZL6101PHEVG 24-40 Seats Hybrid Bus
- Shenzhen/Shanghai
- T/T
You May Like
Product Details
| Seats | 21 - 40 | Emission Standard | Other, Euro III Euro IV | |
| Transmission Type | Automatic | Max Speed | 71 - 90 km/h | |
| Steering Position | LHD | Fuel Type | Hybrid | |
| Dimensions (L x W x H) (mm) | 10490*2480*3380mm | Place of Origin | Chongqing, China | |
| Brand Name | Wuzhoulong | Model Number | WZL6101PHEVGEG4 |
Product Description
Specifications
the leader of new energy automobile.With good quality and best price.
Our products can be customized,
small order quantity is acceptable.
WZL6101PHEVGEVG4 Hybrid city bus
| Whole Vehicle Parameter | |
Overall length(mm) | 10490 |
Overall width (mm) | 2480 |
Overall height (mm) | 3140/3380 |
Wheelbase(mm) | 5000 |
Front/Rear overhang (mm) | 2250 / 3240 |
Approach/departure angle(°) | 7/ 7 |
Front/Rear Tread(mm) | 2020 / 1860 |
Gross Weight(kg) | 17000 |
Rated Passengers | 60/24-40 |
Top Speed (km/h) | 75 |
Engine Parameter
| Engine Model | YC 6J210N-40 |
| Engine Position/Fuel | Rear NG & Battery |
| Engine Type | NG Vertical Inline ,4 strokes, water-cooling turbo-intercool, electricity control |
| Max Torque(N.m) | 710/1500 |
| Max power (km/r/min) | 155/2500 |
| Emission standard | 6.454 L |
| Emission standard | Euro IV |
Chassis Parameter
| Chassis Mode/Manufacture | WZL6100DPHEVGR wuzhoulong |
Electric Motor Model /Manu. | YPQ220M-6 (75KW) /Dalian Tianyuan |
Battery/Manu. | HEV336V100Ah Guangdong Power Technology Co., Ltd. Wuzhou Long |
Clutch | φ395 , Electric control ,single .dry style , diaphragm spring |
Front axle | Dongfeng Dana , Forged module, “H”type section, two fist-end type |
Driving axle | Dongfeng Dana ,Single-grade reduction, hyperbolic gear |
Suspension | Leaf Spring9/11 |
Steering | Power steering |
Brake | Dual-circuit drum braking system according with ECE standard .Automatically air-cut brake. drum type brake |
Gas cylinder | (8X80L ) 640L |
Tyre | 275/70R22.5 6pcs |
Storage battery/generator | 165A.Hx2/110A+140A 28V |
Body | |
Body construction | Semi-Monocoque |
Interior Trim | Integral moulding intenerate interior trim, Yellow spray roller spend handrails, Hang Ring 16 pcs |
Door and pump | Front single Pneumatic outward-swing passenger door. Pneumatic door pump |
Windblock ,side window | Whole view laminated front windscreen/ Adhesive side window, sliding side window at rear |
Rearview system | Pole shape rear view mirror & inner view mirror. The Inner monitor for Rearing the bus. |
Warm wind/defrosting | Water heating defrost system |
Audio system | MP3 |
Lights | Front&Rear combination lamp,Long Box Light . |
Windscreen wiper | Opposite type wiper with detergent |
Seats | 28+1 Injection Molding with soft cushioning Pubic city bus seats . Adjustable driver seats. |
Floor leather | Anti-slipping chinese floor leather |
Lacquer | China Lacquer |
A/C | China electric A/C ,Roof style |
Others | Extinguisher, (4Kg×2), 2 auto distinguishers in engine compartment, froth rail ,Half driver sun-visor , 4 Safety hammers, front & Rear luminescence Road Line, air filter access door, colorful Rearing Monitor, electric Clock , gas control system. |
