Home > Products > New Energy Bus > 24-42seats 11.65m hybrid city bus(NG&Battery)

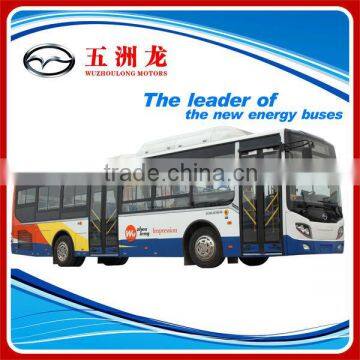

24-42seats 11.65m hybrid city bus(NG&Battery)
Negotiable
/ Unit
1 Unit(Min.Order)
- 15000 Unit / Units per Month
- Shenzhen or Shanghai port
- T/T
You May Like
Product Details
| Seats | 41 - 60 | Emission Standard | Euro 4 | |
| Transmission Type | Automatic | Max Speed | 71 - 90 km/h | |
| Steering Position | LHD | Fuel Type | Hybrid | |
| Dimensions (L x W x H) (mm) | 11650x2480x3390mm | Place of Origin | Chongqing, China | |
| Brand Name | Wuzhoulong | Model Number | WZL6123HEVGEG4 |
Product Description
Our products can be customized,
small order quantity is acceptable.
11.65 m Hybrid city bus (CNG & Battery) Configuration
Overall Parameter
| Overall length (mm) | 11650 |
| Overall width (mm) | 2480 |
| Overall height (mm) | 3390 |
| Wheel base (mm) | 5700 |
| Front/rear overhang (mm) | 2630 / 3320 |
| Approach/departure angle(°) | 7/7 |
| Front/rear overhang (mm) | 2040 / 1860 |
| Gross weight(kg) | 17500 |
| Rated passengers | 79 / 24-42 |
| Top speed (km/h) | 75 |
Engine Parameter
| Engine model | YC6J190N-40 |
| Manufacturer | Yuchai |
| Position /fuel | Rear/CNG |
| Type | Inline ,4 strokes,water-cooling turbo-intercool, electricity control |
| Max power (kw/ r/min) | 140 / 2500 |
| Max torque (N.m/r/min) | 650/ 1500 |
| Displacement | 6.5L |
| Cylinder ×bore (mm) | 105x125 |
| Emission standard | Euro IV |
Chassis Parameter
| Chasis /Manufacture | WZL6123DPHEVGER Chongqing Wuzhoulong |
| Main Motor No./Manu. | YPQ220L-6M (75KW) / Dalian Tianyuan zai |
| Battery No./Manu. | HEV336V100Ah / Guangdong Power Technology Co., Ltd. Wuzhou Long |
| Cluth | φ395 , Electric control ,single .dry style , diaphragm spring |
| Front Axle | Dong feng 6.5T , Forged module, “H”type section, two fist-end type |
| Driving axle | Single-grade reduction, hyperbolic gear |
| Suspension | 5/5 Leaf spring 5/5 |
| Steering | Power steering |
| Brake | Dual circuit air brake with ECE standard,drum brake |
| Gas cylinder | (8*80L) 640L |
| Tyre | 275/70R22.5 6pcs |
| Battery/Generator | 165A.h×2/110A +140A 28V |
| Body structure | Semi Monocoque |
| Inner decoration | Integral moulding intenerate interior trim, Yellow spray roller spend handrails, Hang Ring 16 pcs |
| Door & door pump | Front double inner-swing, rear double inner-swing passenger door ,pneumatic Pump. |
| Windshield&side window | Whole view laminated front windscreen/ Adhesive side window, sliding side window at rear. |
| Review system | Rod rearview mirror,Inner Mirror ,Monitoring for down&up. |
| A/C | Guangzhan A/ Ccool cap.30000Kcal/h.Roof style . |
| Heating system/ | Water heating defrost system |
| Video& audio system | MP3 |
| Lamp | Integral Front & Rear combination lamp; |
| Wiper | Opposite type wiper with detergent |
| Seats | Injection Molding with soft cushioning Pubic city bus seats . Adjustable driver seats |
| Floor leather | Anti-slipping chinese floor leather |
| Lacquer | Solid lacquer |
| Others | Extinguisher, (4Kg×2), 2 auto distinguishers in engine compartment. froth rail ,Half driver sun-visor, 4 Safety hammers , Front & Rear luminescence Road Line, Air filter access door, Colorful Rearing Monitor, Electric Clock, gas control system. |
