220V 600Ah Battery testing/battery discharger/battery load tester Voltage measurement accuracy
- 50 Unit / Units per Month
- CHINA ANY PORT
- T/T Credit Card
You May Like
-
DC Load Bank for UPS Battery system
-
battery discharge cycler 12-96V 200A LCD touch screen Support RS232 real time monitoring by PC or USB download data after dis
-
constant current and constant power battery discharging test
-
VRLA Battery LOAD UNIT
-
8400CT battery load bank /wide voltage range discharge 10C-288VDC 120A -240A
-
Nicd battery string tester cell voltage 1.2V
Product Details
| Place of Origin | Shaanxi, China | Brand Name | FORESISGHT | |
| Model Number | FST-CT220V |
Product Description

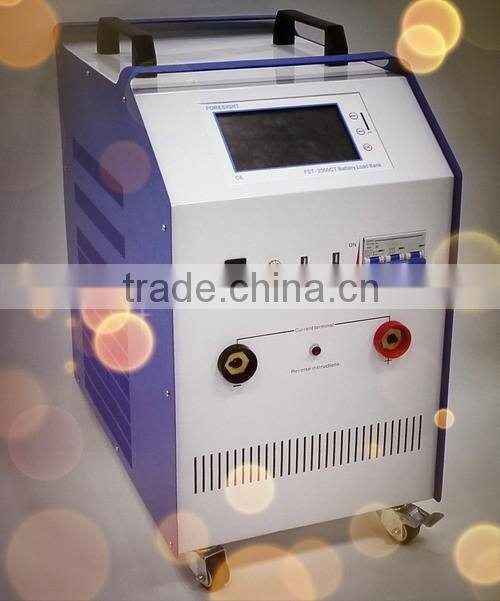

220V Battery Load Bank is specifically designed for the maintenance of the lead-acid battery discharge in the electricity sector. It is a new high-tech intelligent product that provides safe, reliable and convenient constant testing equipment for the DC system
Product Type:

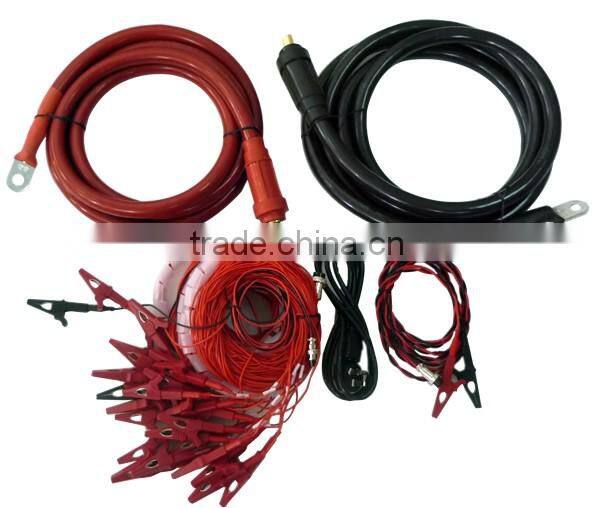

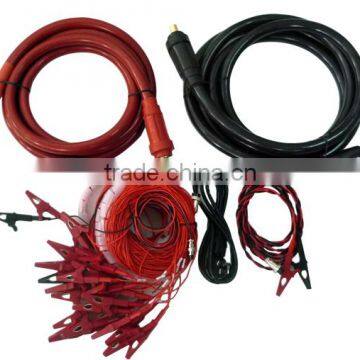

ACCESSORIES :
A
Different discharge current range
String Voltage | 220VDC |
Discharge current Range | 30A 60A 100A 150A |

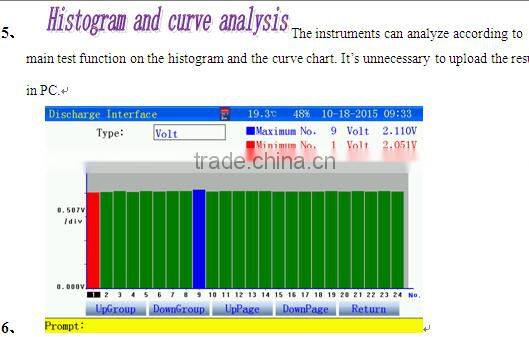

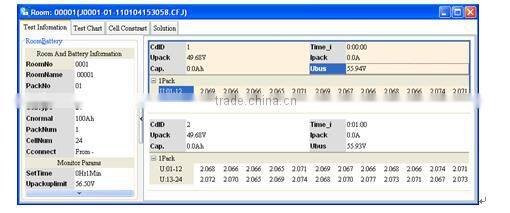

1,Providing data management, print, analyze, count report, automatic generate test report. Amplify or minify the voltage curve for easy observation.
Features | Specifications | ||||
Model | 220/30 | 220/60 | 220/100 | 220/200 | |
String Voltage measurement range | 0~285V | ||||
String Voltage Resolution | 0.01V | ||||
Voltage measurement accuracy | 0.5% | ||||
Cell Voltage Resolution | 0.01V | ||||
Discharge current Range | 2~30A | 2~60A | 2~100A | 2~200A | |
Discharge Voltage of Constance current and constant power | 180~280V | ||||
Resolutions | 0.1A | ||||
Current measurement resolutions | 1% | ||||
Power Supply | AC 100V- 220V±15% 50Hz/60Hz | ||||
Cooling mode | Air Cooling | ||||
Communication Mode | RS232 and SD Card | ||||
Display | 7inch Touch screen | ||||
High-Voltage insulation test | Input-The enclosure:2200Vdc 1min Input-Output:2200Vdc 1min Output- The enclosure:700Vdc 1min | ||||
Safety standard | EN610950 | ||||
Work Temperature | -5~50℃ | ||||
Storage Temperature | -40~70℃ | ||||
Humidity | Relative humidity 0~90%(40±2℃) | ||||
Noise | <60dB | ||||
Dimensions | 40x225x300mm | 480x225x410mm | 600x250x410mm | 600x225×x630mm | |
Weight | <10.5Kg | <13Kg | <15.5Kg | <25Kg | |

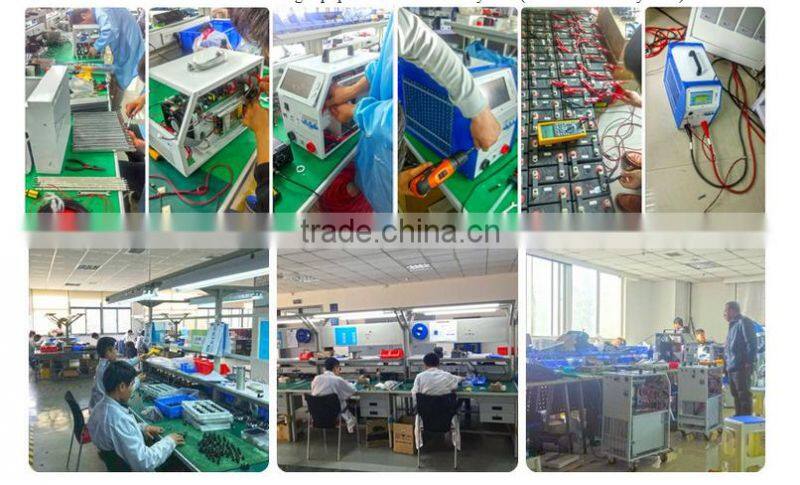

WORKSHOP:

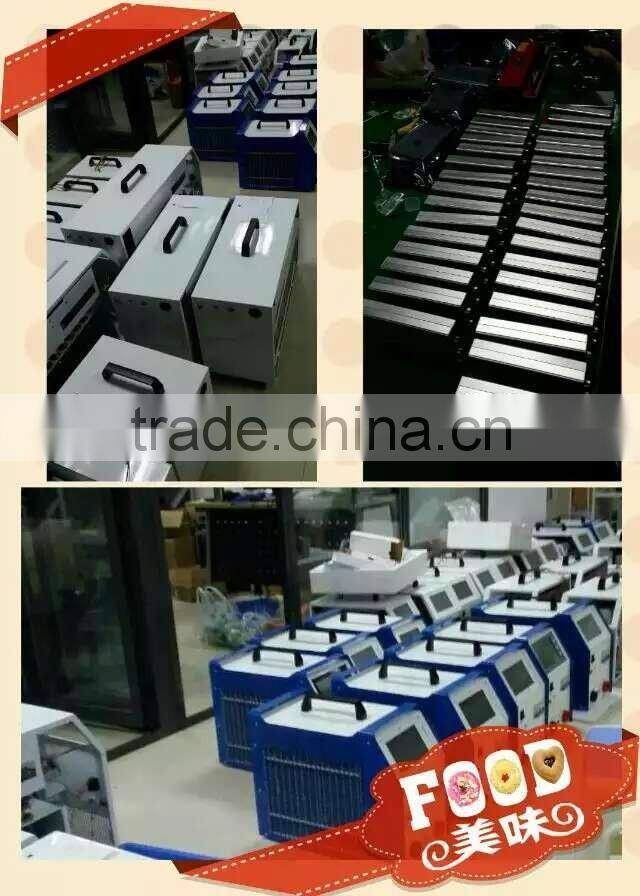

Production Line:

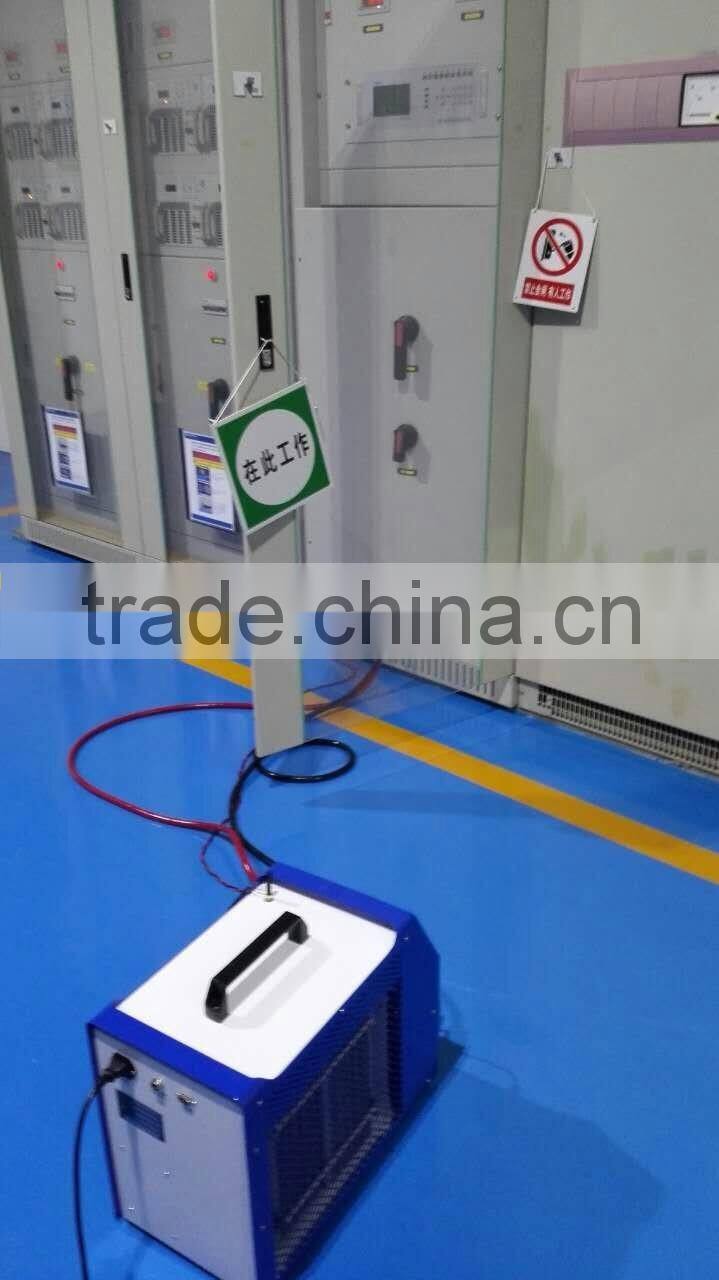

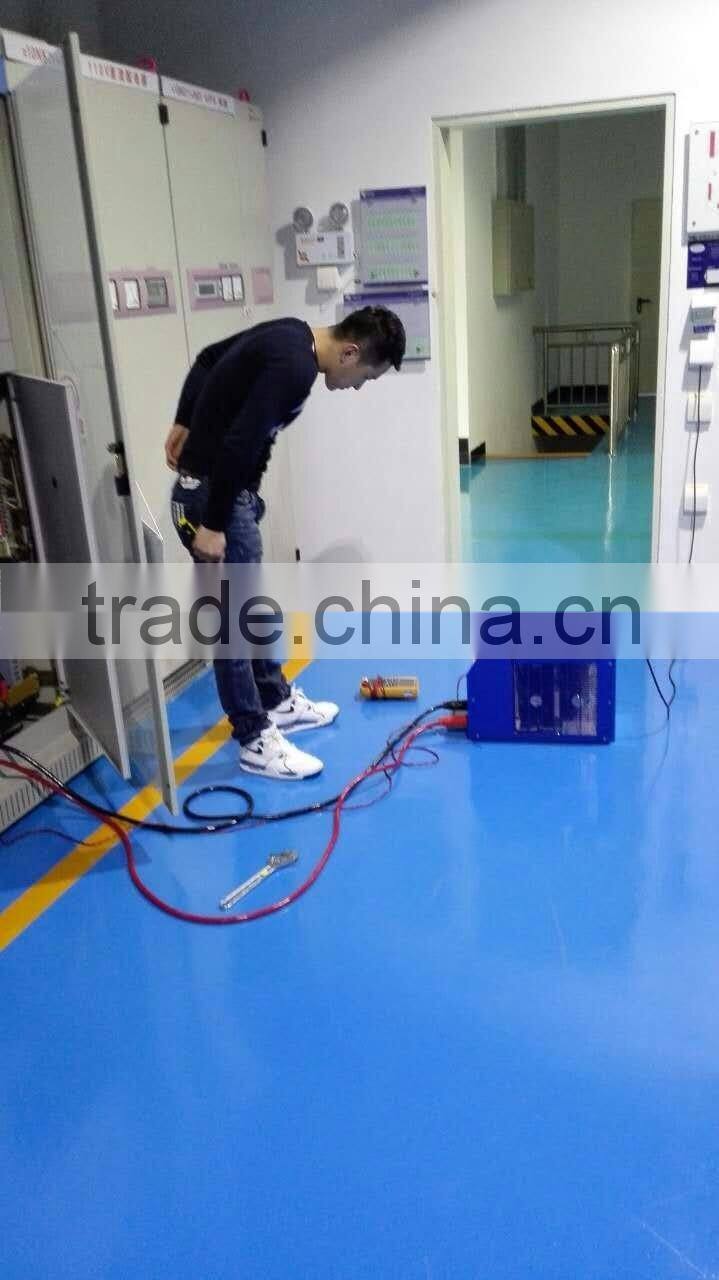

Application Case in client's end :

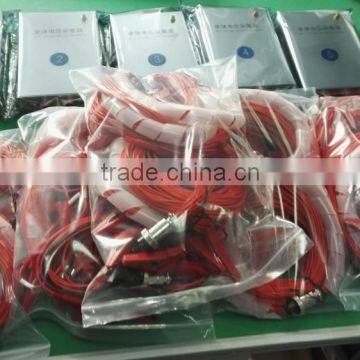

Shipping Service:
