Nicd Battery as Backup Power 220V 150Amps

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port CHINA ANY PORT
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	FORESISGHT
Model Number	FST-CT220V

Product Description

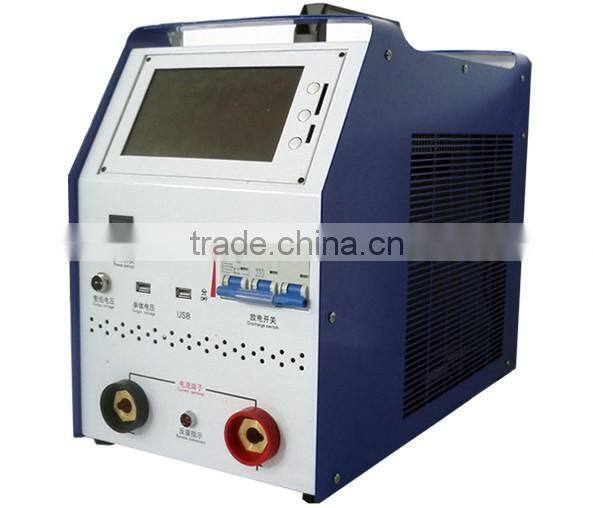

220V Battery Load Bank is specifically designed for the maintenance of the lead-acid battery discharge in the electricity sector. It is a new high-tech intelligent product that provides safe, reliable and convenient constant testing equipment for the DC system

Product Type:

Main Functions and Features:

1,Used to discharge to battery string removed from the system

2,Discharge to Battery string voltage as 220V, Cell voltage as 1.2V/2V/6V/12V

3,4 adjustable stop points and multiple alarm designs to control the discharge process intelligently

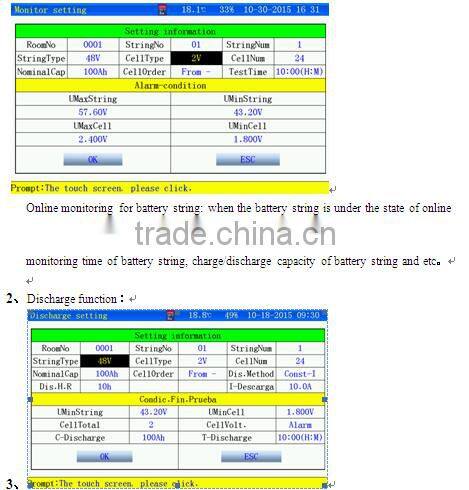

4,7inch LCD touch screen for easy operation and showing various parameters real time

5,Support RS232real time monitoring by PC or SD Card download data after discharge

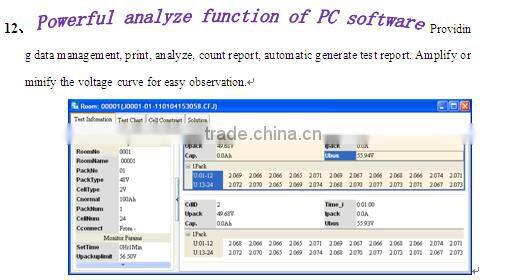

6,PC software for capacity evaluation and report generation

7,Optional wireless modules for 1.2V/2V/6V/12V cells voltage real-time measuring

Different discharge current range

String Voltage

220VDC

Discharge current Range

30A

60A

100A

150A

200A

300A

Features	Specifications
Model	220/30		220/60	220/100	220/200
String Voltage measurement range	0~285V
String Voltage Resolution	0.01V
Voltage measurement accuracy	0.5%
Cell Voltage Resolution	0.01V
Discharge current Range	2~30A		2~60A	2~100A	2~200A
Discharge Voltage of Constance current and constant power	180~280V
Resolutions	0.1A
Current measurement resolutions	1%
Power Supply	AC 100V- 220V±15% 50Hz/60Hz
Cooling mode	Air Cooling
Communication Mode	RS232 and SD Card
Display	7inch Touch screen
High-Voltage insulation test	Input-The enclosure:2200Vdc 1min Input-Output:2200Vdc 1min Output- The enclosure:700Vdc 1min
Safety standard	EN610950
Work Temperature	-5~50℃
Storage Temperature	-40~70℃
Humidity	Relative humidity 0~90%(40±2℃)
Noise	<60dB
Dimensions	40x225x300mm	480x225x410mm		600x250x410mm	600x225×x630mm
Weight	<10.5Kg	<13Kg		<15.5Kg	<25Kg
