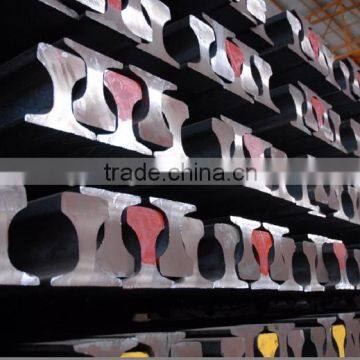

50kg Heavy Steel Rail Track

FOB Price

USD $550 - $600 / Ton

100 Tons(Min. Order)

Port Tianjin port China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	GB	Grade	U71Mn 45Mn
Rail Heigth	152.00mm	Bottom Width	132.00mm
Web Thickness	15.50mm	Head Width	70.00mm
Length	12m,12.5m	Place of Origin	Hebei, China
Brand Name	YongYang	Model Number	50kg
Type	Heavy Rail	Application	Other, minnig, industry
Weight	51.514kg/m	Secondary Or Not	Non-secondary
Bolt Hole Diameter	31mm

Product Description

Specification:

1.Name of Product: (50kg/m) heavy rail

2.Material: U71Mn
3.Length: 12m,12.5m
4.Standard:GB2585-2007,Q/YYG002-2000

THE LIST OF YYGT

Name of Commodity	Specificaton	Materials (Steel Grade)	Standard of Products	Theory Weight (kgs/M)	Length of Dimension (M)	Packed In Bundle With Iron Wire (pcs/bundle)
Light Rail	4kgs/m	Q235	Q/YYG001-2008	4kgs/m	6,8,9,10	75
	8kgs/m	Q235	Q/YYG001-2008	8.42kgs/m		55
	12kgs/m	Q235	GB11264-89	12.2kgs/m		36
	15kgs/m	Q235/55Q/50Q	GB11264-89	15.2kgs/m		28
	18kgs/m	Q235/55Q/50Q	YB222-63	18.06kgs/m		21
	22kgs/m	Q235/55Q/50Q	GB11264-89	22.3kgs/m		21
	24kgs/m	Q235/55Q/50Q	Q/YYG001-2008	24.46kgs/m		21
	30kgs/m	Q235/55Q/50Q	GB11264-89	30.1kgs/m		15
Heavy Rail	38kgs/m	U71Mn/U71	GB2585-81 Q/YYG002-2008	38.733kgs/M	12,12.5	10
	43kg/m	U71Mn/U71	GB2585-81 Q/YYG002-2008	44.653kgs/M		10
	50kgs/m	U71Mn/U71	GB2585-81 Q/YYG002-2008	51.514kgs/M		10
		45/50Mn	Q/YYG002-2008	31/34/36/39/41kgs/M	12,12.5	10
Crane Rail	QU70	U71Mn	YB/T5055-93	52.8kgs/m	12,12.5	10
	QU80		YB/T5055-93	63.69kgs/m		10
	QU100		YB/T5055-93	88.96kgs/m		5
	QU120		YB/T5055-93	118.1kgs/m		5
I-beam of Hot-Rolled Section Steel for Mine	9#	20MnK/ Q235	YB/T5047-2000	17.69kgs/m	8,9,10	28
	11#		YB/T5047-2000	26.05kgs/m		18
	12#		YB/T5047-2000	31.18kgs/m		15
Hot-Rolled U-Beam Steel for Mine Timbering	25U	20MnK/ Q275	GB4697-1991 /Q/YYG006-2008	24.95kgs/m	8,9,10,12	15
	29U		GB4697-1991	29kgs/m		15
	36U		Q/YYG006-2008	35.87kgs/m		15

Name of Commodity	Specificaton Equal to rails	Materials	Standard of Products	Theory Weight (kgs/set)	Length of Dimension (mm)	Packed In Bundle With Iron Wire (set)
Fish Plate	4/9kgs/M	Q235B or …	GB11265-89	0.80	≈270-385	50
	4/9kgs/M		GB11265-89	1.00	≈270-385	50
	12kgs/M		GB11265-89	1.10	≈409	50
	12kgs/M		GB11265-89	1.30-1.50	≈409	50
	15/18kgs/m		GB11265-89	1.80-2.00	≈372-409	25
				2.20-2.50
				2.80-3.00
	22/24kgs/M		GB11265-89	3.30-3.50	≈426-510	20
				3.80-4.00
				4.20-4.50
	30kgs/m		GB11265-89	5.50-7.50	≈561	10
	30kgs/m		GB11265-89	8.20-8.50	≈561	10
	38/43/50kgs/m		GB185-63	24-30	≈790

If you are interested in our products,please contact us.
