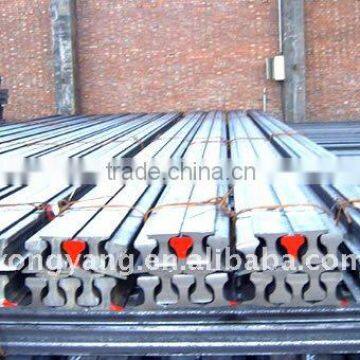

mine heavy rail steel rail U71Mn 38kgs

FOB Price

USD $520 - $550 / Metric Ton

100 Metric Tons(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Name:(38kgs) heavy rail

Specification(KGS/M):38,43,50

THE LIST OF YYGT

Name of Commodity	Specificaton	Materials	Standard of Products	Theory Weight	Length of Dimension (m)	Packed in bundle with iron wire (pcs/bundle)
Light Rail	4kg/m	Q235	Q/YYG001-2008	4kg/m	6,8,9,10	75
	8kg/m	Q235	Q/YYG001-2008	8.42kg/m		55
	12kg/m	Q235	GB11264-89	12.2kg/m		36
	15kg/m	Q235/55Q/50Q	GB11264-89	15.2kg/m		28
	18kg/m	Q235/55Q/50Q	YB222-63	18.02kg/m		21
	22kg/m	Q235/55Q/50Q	GB11264-89	22.3kg/m		21
	24kg/m	Q235/55Q/50Q	Q/YYG001-2008	24.46kg/m		21
	30kg/m	Q235/55Q/50Q	GB11264-89	30.1kg/m		15
Heavy Rail	38kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	38.733	12,12.5	10
	43kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	44.653		10
	50kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	51.514		10
Crane Rail	QU70	U71Mn	YB/T5055-93	52.8kg/m	12,12.5	10
	QU80		YB/T5055-93	63.69kg/m		10
	QU100		YB/T5055-93	88.96kg/m		5
	QU120		YB/T5055-93	118.1kg/m		5
I-beam of Mine Usage Steel	9#	20MnK/ Q235	YB/T5047-2000	17.69kg/m	8,9,10	28
	11#		YB/T5047-2000	26.05kg/m		18
	12#		YB/T5047-2000	31.18kg/m		15
U-beam Of The Mine Channel Steel	25U	20MnK/ Q235	GB4697-1991 Q/YYG006-2008	24.95kg/m	8,9,10,12	15
	29U		GB4697-1991	29kg/m		15
	36U		Q/YYG006-2008	35.87kg/m		15

Name of Commodity	Specificaton	Materials	Standard of Products	Theory Weight (kgs/set)	Length of Dimension (cm)	Packed in bundle with iron wire (set)
Fish Plate	8kg	Q235B	GB11265-89	0.8 +0.8 =1.6		50
	8kg		GB11265-89	1+1=2		50
	12kg		GB11265-89	1.1+1.1=2.2	45.5	50
	12kg		GB11265-89	2.6-3.0	45.5	50
	15-18kg		GB11265-89	3.6-4.0	53.54	25
				4.6-5.0
				5.6-6.0
	22-24kg		GB11265-89	6.6-7.0	61.73	20
				7.6-8.0
				8.4-9.0
	30kg		GB11265-89	14.4-15.0	71.48	10
	30kg		GB11265-89	16.4-17.0	71.48	10
	43kg		GB185-63	57.0-58.0	79	1

If you are interested in our products,please contact us,We can provide the 38khs-50kgs mine heavy rail in China.

Hebei Yongyang Special Steel Group Co., Ltd.: Contact nameGuoxuan Zhou
Chat Now; Phone0086-0756-2299893; AddressDuliugu Yongnian County Hebei, Handan, Hebei
