QU70 Crane Rail Crane Heavy Track

FOB Price

USD $550 - $650 / Ton

100 Tons(Min. Order)

Port Tianjin port China
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	GB	Grade	U71Mn
Rail Heigth	120mm	Bottom Width	120mm
Web Thickness	28mm	Head Width	70mm
Length	12m	Place of Origin	Hebei, China
Brand Name	YongYang	Model Number	QU70
Type	Heavy Rail	Application	Other, crane
Weight	52.8kg/m	Secondary Or Not	Non-secondary
Bolt Hole Diameter	...

Product Description

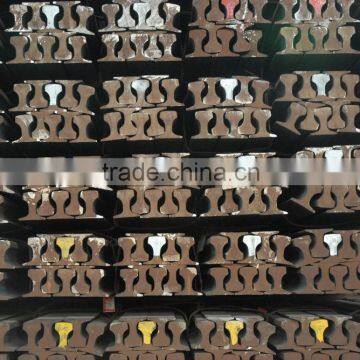

China Standard U71Mn Crane Steel Rail QU70

Specifications

Crane Rail:
Specification:QU70,QU80,QU100,QU120
Standard: YB/T5055-93
Material: U71Mn
Length: 12 meters/PC

Product Introduction

Heavy Rail:
Specification: QU70,QU80,QU100,QU120
Standard: YB/T5055-93
Material: U71Mn
Length: 12meters/PC.

THE LIST OF YYGT

Name of Commodity	Specificaton	Materials	Standard of Products	Theory Weight	Length of Dimension (m)	Packed in bundle with iron wire (pcs/bundle)
Light Rail	4kg/m	Q235	Q/YYG001-2008	4kg/m	6,8,9,10	75
	8kg/m	Q235	Q/YYG001-2008	8.42kg/m		55
	12kg/m	Q235	GB11264-89	12.2kg/m		36
	15kg/m	Q235/55Q/50Q	GB11264-89	15.2kg/m		28
	18kg/m	Q235/55Q/50Q	YB222-63	18.02kg/m		21
	22kg/m	Q235/55Q/50Q	GB11264-89	22.3kg/m		21
	24kg/m	Q235/55Q/50Q	Q/YYG001-2008	24.46kg/m		21
	30kg/m	Q235/55Q/50Q	GB11264-89	30.1kg/m		15
Heavy Rail	38kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	38.733	12,12.5	10
	43kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	44.653		10
	50kg/m	U71Mn/U71/45Mn	GB2585-2007 Q/YYG002-2008	51.514		10
Crane Rail	QU70	U71Mn	YB/T5055-93	52.8kg/m	12,12.5	10
	QU80		YB/T5055-93	63.69kg/m		10
	QU100		YB/T5055-93	88.96kg/m		5
	QU120		YB/T5055-93	118.1kg/m		5
I-beam of Mine Usage Steel	9#	20MnK/ Q235	YB/T5047-2000	17.69kg/m	8,9,10	28
	11#		YB/T5047-2000	26.05kg/m		18
	12#		YB/T5047-2000	31.18kg/m		15
U-beam Of The Mine Channel Steel	25U	20MnK/ Q235	GB4697-1991 Q/YYG006-2008	24.95kg/m	8,9,10,12	15
	29U		GB4697-1991	29kg/m		15
	36U		Q/YYG006-2008	35.87kg/m		15

Name of Commodity	Specificaton	Materials	Standard of Products	Theory Weight (kgs/set)	Length of Dimension (cm)	Packed in bundle with iron wire (set)
Fish Plate	8kg	Q235B	GB11265-89	0.8 +0.8 =1.6		50
	8kg		GB11265-89	1+1=2		50
	12kg		GB11265-89	1.1+1.1=2.2	45.5	50
	12kg		GB11265-89	2.6-3.0	45.5	50
	15-18kg		GB11265-89	3.6-4.0	53.54	25
				4.6-5.0
				5.6-6.0
	22-24kg		GB11265-89	6.6-7.0	61.73	20
				7.6-8.0
				8.4-9.0
	30kg		GB11265-89	14.4-15.0	71.48	10
	30kg		GB11265-89	16.4-17.0	71.48	10
	43kg		GB185-63	57.0-58.0	79	1

About Us

1, We are a professional manufacturer of all types of industrial rails under Chinese Standard which are used for mining or other industrial projects, and our main products include light rails, heavy rails, and crane rails, and accessories of fish plates, bolts and nuts etc. We have more than 20 years of history supplying above products.
2, We have continuously tried to improve product quality. Our annual production capability is more than one million tonnages.
3, Our products have already been exported to Poland, Romania, Russia, India, South America, Singapore, Philippines, Vietnam and Hong Kong, in 2001, we obtained the ISO9001:2000 quality management certification.
We hope to cooperate with more customers for mutual development and benefits.

Welcome your inquiries!
