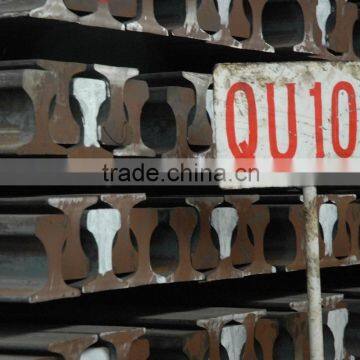

Crane Rail QU100
- 1000000 Ton / Tons per Month
- Tianjin Port China
- T/T
You May Like
Product Details
| Standard | GB, GB | Grade | U71Mn | |
| Rail Heigth | 150mm | Bottom Width | 150mm | |
| Web Thickness | 38mm | Head Width | 100mm | |
| Length | 12m | Place of Origin | Hebei, China | |
| Brand Name | YongYang | Model Number | QU100 | |
| Type | Heavy Rail | Application | Other, crane | |
| Weight | 88.96kgs/m | Secondary Or Not | Non-secondary |
Product Description
China Standard U71Mn Crane Steel Rail QU100
Product Introduction
Heavy Rail:
Specification: QU70,QU80,QU100,QU120
Standard: YB/T5055-93
Material: U71Mn
Length: 12meters/PC.
| THE LIST OF YYGT | ||||||
| Name of Commodity | Specificaton | Materials | Standard of Products | Theory Weight | Length of Dimension (m) | Packed in bundle with iron wire (pcs/bundle) |
| Light Rail | 4kg/m | Q235 | Q/YYG001-2008 | 4kg/m | 6,8,9,10 | 75 |
| 8kg/m | Q235 | Q/YYG001-2008 | 8.42kg/m | 55 | ||
| 12kg/m | Q235 | GB11264-89 | 12.2kg/m | 36 | ||
| 15kg/m | Q235/55Q/50Q | GB11264-89 | 15.2kg/m | 28 | ||
| 18kg/m | Q235/55Q/50Q | YB222-63 | 18.02kg/m | 21 | ||
| 22kg/m | Q235/55Q/50Q | GB11264-89 | 22.3kg/m | 21 | ||
| 24kg/m | Q235/55Q/50Q | Q/YYG001-2008 | 24.46kg/m | 21 | ||
| 30kg/m | Q235/55Q/50Q | GB11264-89 | 30.1kg/m | 15 | ||
| Heavy Rail | 38kg/m | U71Mn/U71/45Mn | GB2585-2007 Q/YYG002-2008 | 38.733 | 12,12.5 | 10 |
| 43kg/m | U71Mn/U71/45Mn | GB2585-2007 Q/YYG002-2008 | 44.653 | 10 | ||
| 50kg/m | U71Mn/U71/45Mn | GB2585-2007 Q/YYG002-2008 | 51.514 | 10 | ||
| Crane Rail | QU70 | U71Mn | YB/T5055-93 | 52.8kg/m | 12,12.5 | 10 |
| QU80 | YB/T5055-93 | 63.69kg/m | 10 | |||
| QU100 | YB/T5055-93 | 88.96kg/m | 5 | |||
| QU120 | YB/T5055-93 | 118.1kg/m | 5 | |||
| I-beam of Mine Usage Steel | 9# | 20MnK/ Q235 | YB/T5047-2000 | 17.69kg/m | 8,9,10 | 28 |
| 11# | YB/T5047-2000 | 26.05kg/m | 18 | |||
| 12# | YB/T5047-2000 | 31.18kg/m | 15 | |||
| U-beam Of The Mine Channel Steel | 25U | 20MnK/ Q235 | GB4697-1991 Q/YYG006-2008 | 24.95kg/m | 8,9,10,12 | 15 |
| 29U | GB4697-1991 | 29kg/m | 15 | |||
| 36U | Q/YYG006-2008 | 35.87kg/m | 15 | |||
| Name of Commodity | Specificaton | Materials | Standard of Products | Theory Weight (kgs/set) | Length of Dimension (cm) | Packed in bundle with iron wire (set) |
| Fish Plate | 8kg | Q235B | GB11265-89 | 0.8 +0.8 =1.6 | 50 | |
| 1+1=2 | ||||||
| 12kg | GB11265-89 | 1.1+1.1=2.2 | 45.5 | 50 | ||
| 2.6-3.0 | ||||||
| 15-18kg | GB11265-89 | 3.6-4.0 | 53.54 | 25 | ||
| 4.6-5.0 | ||||||
| 5.6-6.0 | ||||||
| 22-24kg | GB11265-89 | 6.6-7.0 | 61.73 | 20 | ||
| 7.6-8.0 | ||||||
| 8.4-9.0 | ||||||
| 30kg | GB11265-89 | 14.4-15.0 | 71.48 | 10 | ||
| 16.4-17.0 | ||||||
| 43kg | GB185-63 | 57.0-58.0 | 79 | 1 | ||
About Us
1, We are a professional manufacturer of all types of industrial rails under Chinese Standard which are used for mining or other industrial projects, and our main products include light rails, heavy rails, and crane rails, and accessories of fish plates, bolts and nuts etc. We have more than 20 years of history supplying above products.
2, We have continuously tried to improve product quality. Our annual production capability is more than one million tonnages.
3, Our products have already been exported to Poland, Romania, Russia, India, South America, Singapore, Philippines, Vietnam and Hong Kong, in 2001, we obtained the ISO9001:2008 quality management certification.
We hope to cooperate with more customers for mutual development and benefits.
Welcome your inquiries!
