(SKYPE:gyhongjikayla)HJK-35 two stage efficient extruding brick ma0king machine

Condition	New		Type	Hollow Block Making Machine
Brick Raw Material	Clay		Processing	Brick Production Line
Method	Vacuum Extruder		Automatic	Yes
Capacity	7000-8000pcs/h		Place of Origin	Henan, China
Brand Name	HJ		Model Number	HJK
Power	75KW		Certification	CE
Warranty	12months		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1.high technology
2.easy operation
3.more durable
cessing brick production line
4.capacity7000-8000



  HJK-35 two stage efficient extruding brick making machine



 About our machine:



This Machine is suitable for producing all kinds of cell brick with material like gangue,shale,pulverized coal ash and clay.



Mechanical feathers:



The HJK series are advanced twin-stagevacuum extruder which draw lessons from the developed domestic, abroad experiences and design to make. They are mainly made of high quality steel with features of reasonable structure, sturdy and durability. And they have strong applicability, high efficiency, easy maintenance but lower energy consumption.



   The machine’s axles, gear and other important spare parts extend the service life which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession. The dialing mud plate’s transfer and material level control are fixed with protecting device which improves the plant efficiency of breakdown maintenance. And it also makes sure that it can’t easily damage the main spare parts during usage. The reamer adopt the floating shaft structure which can eliminate and reduce the machine’s shaking and rocking timesbecause of curve in principal axle after long time usage.



       The blades of the reamer adopt the wear-resistant metallic material coating technology which makes its life four times to seven times longer than the common reamer. The lead has the function of slight pressure delivery and high pressure extrusion which make the machine save energy from fifteen percent to thirty percent. They are applicable for the production of high-rate hollow bricks with the materials of coal gangue, shale, high-volume fly-ash, urban construction waste, gangue waste, inferior soil.







Technical Parameter:



Yield	Block/h	7000-8000pcs per hour
Reamer Diameter	mm	350mm
Extrusion Pressure	Mpa	3.0
Vacuum Degree	Mpa	≤-0.092
Motor Power	Kw	75
Exterior dimension	mm	4400*2000*1800

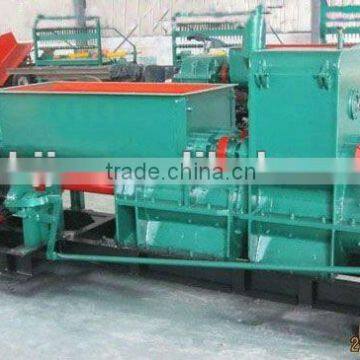

 Pictures:
