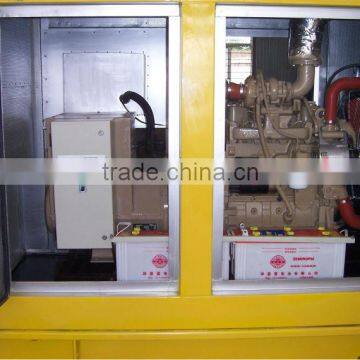

50KVA /40KW Special Silent Type Generator / Copper Generator / Silent Diesel Generator

 Generator set

 SUDONG

 Engine model

 4BTA3.9-G2

 Alternator model

 MP-40-4

Prime power

40kW

Rated speed

1500 RPM

Output frequency

50 Hz

Phase

3

Rated voltage

400 V

Engine Model

4BTA3.9-G2

Configuration

4 cycle , 6 cylinders in V

Aspiration

Turbocharged and after cooled

Bore×Stroke

105x130

Rated speed

1500rpm

Prime Power

50KW

Speed Governor

electrical

Cooling System

Water-cooled , 40°C Radiator As Standard, 50°C Is Optional.

Speed Stability (%)

≤5%

Fuel Consumption

≤14.9

Starter Motor

DC24V

Alternator model

MP-40-4

Alternator manufacturer

Marathon

Exciter type

Single bearing, Brushless, Self-excited

Rated output prime power

40 kW

Rated speed

1500 RPM

Rated frequency

50 Hz

Phase

3

Rated voltage

400 V(Available with customer requirements)

Power factor

0.8

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Insulation grade

H

Protection grade

IP23

type of cooling               :Radiator fan

speed adjustment mode : Electronic Speed governing

Generator part          :air switch  ,Brushless copper, self-excitationAVR

control system   :  IV shows the control panel with alarm protection

steel seat

shock pad

Accessories section: noise deadener ,24V storage battery ,The battery cable ,Spare parts box etc.

Stand alone type or Base oil tank

Self-starting

ATS Since the switch

Remote control

Grid control cabinet
