ISO OEM Kangmingsi kta38 manual 600kw Container generator

600KW 750KVA Kangmingsi container generator Engine Kangmingsi kta38 manual OEM ISO

This genset is powered by Kangmingsi diesel engine, coupled with Marathon alternator;

Stamford,  Siemens and Sanbo alternators are optional;

With Robust foot mounting, Reliable performance and Versatile configurations,

It’s your initial choice for inland power supply.

Any problem, please be free to contact me by skype: justinguo2006, Taizhou, China for instant communication!

Genset Feature

Our genset consists of Engine, Alternator, Foot-mounting, Control panel, Radiator, Air filter, Exhaust silencer, Elbow, Expansion joint, Battery, Shock absorber and Operation manual.

Model Number: SDC600

Prime Power: 600KW/750KVA

Standby Power: 660KW/825KVA

Rated Voltage: 230V/400V/415V/440V

Rated Current: 1080A

Output Type: AC 3 Phase

Speed: 1500rpm

Frequency: 50Hz

Dimension: 4350*1630*2450 (for reference)

Weight: 4200kgs  (for reference)

Accessories optional: Fuel tank, Canopy, Soundproof enclosure

Diesel Engine Feature

Brand: Kangmingsi

Manufacturer: Chongqing Kangmingsi Engine Co., Ltd.

Model: KTA38-GA

Rated Power: 664KW

Cyl. and arrangement: 12 inline

Bore/Stroke: 159/159mm

Aspiration: turbocharger, aftercooler

Configuration: water cooled closed, 4-strike, direct injection

Governor: Electronic or Manual

Starting Method: DC24V electric motor or air motor

Fuel Consumption: ≤148 L/H

Accessories optional: Governor of manual or servo, Battery charger, Engine coolant and oil heater, Fuel-water separator

Alternator Feature

Brand: Marathon

Manufacturer: Shanghai Marathon-Gexin Electric Co., LTD

Model: MP-600-4

Electric capacity: 600KW/750KVA

Configuration: Brushless, self-excited, AVR, 4 poles

Voltage: 230V/400V/415V/440V

Frequency: 50Hz

Power Factor: 0.8(lagging)

Connecting Type: 3 phase, 4 wires

Insulation: Class H

Protection: IP23

Accessories optional: PMG, Alternator space heater, Anti-condensation heater

Control panel Feature

1. Operation function:

Start/Stop manual                        Answer/Reset button

Emergent shutdown button         Remote plug

2. Display function:

Engine speed                               Lube pressure

Coolant temperature                    Lube temperature

Battery voltage                              Running time overall

3. Indication and protection:

Running status                               Lube pressure low alarm

Lube temperature high alarm      Coolant temperature high alarm

Battery voltage low alarm             Fuel leaking alarm

Starting failure alarm                     Over speed shutdown

Coolant temperature exceedingly high shutdown

Lube pressure extremely low shutdown

Common alarm

4. Accessory optional: Automatic control box, Paralleling function, Remote control function

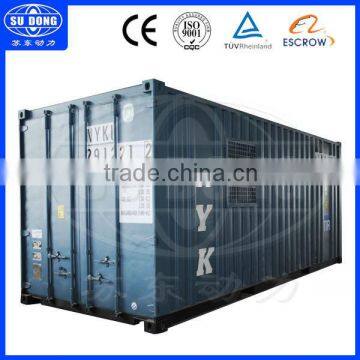

 Kangmingsi container generator 600kw
