Home > Products > Marine Generator > 63KVA/50KW Yuchai Engine Diesel Generator CCS BV approved OEM Manufacturer

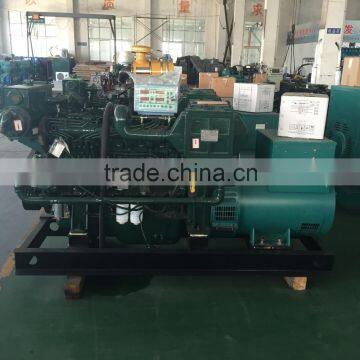

63KVA/50KW Yuchai Engine Diesel Generator CCS BV approved OEM Manufacturer
- Shanghai
- T/T
You May Like
Product Details
Place of Origin | China | Brand Name | SUDONG | |
Model Number | YC6108CA | Output Type | AC Three Phase | |
Speed | 1500RPM / 1800 RPM | Frequency | 50HZ/60HZ | |
Rated Power | 50KW | Rated Voltage | 230V/400V | |
Rated Current | 135.3A |
Product Description
63KVA/50KW Yuchai Engine Diesel Generator CCS BV approved OEM Manufacturer
Yuchai Main/Harbor generator
Rated Power:30KW-800KW(38KVA-1000KVA);
Vlotage:50HZ,400V;Customized generatore:60HZ,440V and others are optional;
Electrical start,Spring start and air start are optional;
Engine monitor panel and genset control panel;
Powered by YUCHAI Engine coupled with Sanbo;Stamford,Siemens,Liandian,Marathon alternators are optional;
IMO Tier II Certificate;
CCS Approved.
50KW/63KVA Yuchai Engine Technical Parameters
Engine brand:Yuchai | |
Model | YC6108CA |
Type | In-Line,Direct-Injection,Four -Stroke,Wet -Cylinder Liner |
Bore/stroke(mm) | 108/125 |
Displacement(L) | 6.871 |
Compression ratio | 17.5:1 |
Prime power/speed(kW/r/min) | 63/1500 |
Standby power(kW) | 69.3 |
Starting method | Electric |
Governing method | Electronic(Air optional) |
Aspiration method | SDI |
Fuelconsumption(g/kW.h) | ≤189 |
Rotation direction of crankshaft | Counter clockwise(face to output end) |
Yuchai Diesel generator set Technical Data
Marine Diesel Genset | Engine | Alternator | Unit | |||||||
Model | Rated Power | Fre/Volt | Model | Cont inuous Power | Cyl | Bore x Stroke | Fuel Cons | Sanbo | Dimensions | W |
kW/kva | Hz/V | kW | mm | g/kw.h | L*W*H (mm) | kgs | ||||
CCFJ30YC | 30/38 | 50/400 | YC4108C | 40 | 4 | 108×115 | 200+5% | SB-HW4(.D)-30 | 1780*715*1035 | 750 |
CCFJ40YC | 40/50 | 50/400 | YC4108ZC | 50 | 4 | 108×115 | 200+5% | SB-HW4(.D)-40 | 1850*715*1035 | 750 |
CCFJ50YC | 50/63 | 50/400 | YC6108CA | 63 | 6 | 108×125 | 200+5% | SB-HW4(.D)-50 | 1900*860*1000 | 1300 |
CCFJ75YC | 75/94 | 50/400 | YC6108ZLCA | 90 | 6 | 108×125 | 189+5% | SB-HW4(.D)-75 | 2300*860*1000 | 1330 |
CCFJ90YC | 90/113 | 50/400 | YC6108ZLCB | 112 | 6 | 108×125 | 189+5% | SB-HW4(.D)-90 | 2600*930*1160 | 1400 |
CCFJ100YC | 100/125 | 50/400 | YC6A170C | 125 | 6 | 108×132 | 189+5% | SB-HW4(.D)-100 | 2600*930*1160 | 1950 |
CCFJ150YC | 150/188 | 50/400 | YC6M240C | 176 | 6 | 120×145 | 189+5% | SB-HW4(.D)-150 | 2900*1020*1420 | 2000 |
CCFJ180YC | 180/225 | 50/400 | YC6M300C | 220 | 6 | 120×145 | 189+5% | SB-HW4(.D)-180 | 2950*1020*1420 | 2300 |
CCFJ200YC | 200/250 | 50/400 | YC6MK330C | 240 | 6 | 123×145 | 189+5% | SB-HW4(.D)-200 | 2950*1020*1420 | 2950 |
CCFJ250YC | 250/313 | 50/400 | YC6T400C | 294 | 6 | 145×165 | 195+5% | SB-HW4(.D)-250 | 3000*1030*1750 | 3200 |
CCFJ300YC | 300/375 | 50/400 | YC6T450C | 330 | 6 | 145×165 | 195+5% | SB-HW4(.D)-300 | 3200*1030*1750 | 4100 |
CCFJ320YC | 320/400 | 50/400 | YC6T490C | 360 | 6 | 145×165 | 195+5% | SB-HW4(.D)-320 | 3500*1050*1750 | 4300 |
CCFJ400YC | 400/500 | 50/400 | YC6C650L-C20 | 478 | 6 | 200×210 | 195+5% | SB-HW4-400-6P | 3800*1050*1750 | 7200 |
CCFJ450YC | 450/562 | 50/400 | YC6C700L-C20 | 515 | 6 | 200×210 | 195+5% | SB-HW4-450-6P | 3810*1350*1850 | 7500 |
CCFJ500YC | 500/625 | 50/400 | YC6C820L-C21 | 600 | 6 | 200×210 | 195+5% | SB-HW4(.D)-500 | 4100*1450*1890 | 8100 |
CCFJ600YC | 600/750 | 50/400 | YC6CL960L-C20 | 706 | 6 | 200×290 | 195+5% | SB-HW4-600-6P | 4200*1450*1890 | 8300 |
CCFJ650YC | 650/813 | 50/400 | YC6CL1035L-C20 | 760 | 6 | 200×290 | 195+5% | SB-HW4-700-6P | 4500*1550*1900 | 8500 |
CCFJ800YC | 800/1000 | 50/400 | YC6CL1200-C20 | 882 | 6 | 200×290 | 195+5% | SB-HW4-1000-6P | 4675*1450*1940 | 8900 |
Product Advantages:
1. Diesel genset comply with CCS,BV,ABS,DNV,GL,RINA,RS.
2. Passed through Certifications:ISO9001,CE
3. Professional engineers and skilled technicals,sales teams.
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Steady relationships with engine and alternators’ supplier both domestic and global.
7. Excellent after sale service.
Company Introductions
Sudong Power is a specialist company in design and manufacture of generator sets.For over 11 years' of development,Sudong power has earned the reputation in the market to supply power solutions for various applications with a broad range in power capacities.
Our goal is o sustain at the forefront of domestic and global market for power solutions in an upgrading power range in terms of perofrmance,quality and services.SUDONG POWER is trading forward to this goal with steady steps.
Company Products Show
Certificates and Factory show
Sudong Power your reliable partner for generator set.
Any more welcome to contact us.My skype:Julie.liu9;whatsapp no is 8615996312520 or call us directly:+86-523-86083568
