Home > Products > 200deg.C silicone fiberglass wire > silicone insulated UL3071 Electrical heating cable

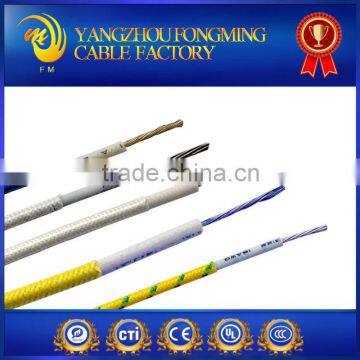

silicone insulated UL3071 Electrical heating cable
- shanghai ningbo shenzhen
- T/T Credit Card
You May Like
-
fiberglass silicone rubber wire UL 3071
-
UL3071 600V 18awg black Silicone Wire
-
UL3071 12 gauge stranded silicone wire
-
UL3071 14 AWG silicon rubber glass fiber oven wire
-
UL3071 18awg Silicone rubber coated fiberglass braid electrical wire
-
UL3071 16awg 200 degree fiberglass braided silicone rubber wire
Product Details
Place of Origin | Jiangsu, China | Brand Name | fongming | |
Model Number | AWM3071 | Type | Insulated | |
Application | Heating | Conductor Material | Other, Tinned plated Copper | |
Conductor Type | Stranded | Insulation Material | Rubber |
Product Description
Specifications
UL3071Electrical heating cable1. tinned copper
2:Silicone Insulation with fiber braiding
3. Rating200C/ 600V
silicone insulated UL3071 Electrical heating cable
RATINGS/ APPROVALS
200°C-600Volts-UL 3071 E315207
Electrical heating cable
CONSTRUCTION
Conductors
18AWG-10AWG
Stranded nickel-plated copper, silver copper, tinned copper
Insulating System
Silicone rubber
Outer Covering
Fiberglass braid with high temperature finish
Standard Color Coding
Natural and Solid Colors
CHARACTERISTICS
Suitable for applications to -60°C
Excellent and flexible cable.
APPLICATIONS
Used for internal wiring of commercial, industrial,household ovens and lighting fixture.
Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.
UL3071 is used for internal wiring of commercial, industrial,household ovens and lighting fixture.
Ideal for use in electric heaters and for equipment wiring as high temperature lead wire.
Suitable for application to -60°C.
With surface marking
SPECIFICATION
Conductor | Insulation | Max. Conductor Resistance (Ω/km) | Reference Weight | |||||
Style | Size | Conductor Structure | Nominal Thickness | Braid Thickness | Nominal Diameter | Max. Diameter | ||
3071 | 18 | 16/0.26 |
0.76 | 0.20 | 3.2 | 3.5 | 23 | 17 |
16 | 26/0.26 | 0.20 | 3.6 | 3.9 | 14.6 | 23.9 | ||
14 | 41/0.26 | 0.20 | 4.0 | 4.4 | 9.9 | 34.2 | ||
3074 | 12 | 43/0.32 | 0.8 | 0.20 | 4.6 | 5.0 | 5.38 | 45.9 |
3075 | 10 | 35/0.45 | 1.2 | 0.25 | 6.2 | 6.6 | 3.5 | 76 |
2. Shipped from Shanghai, Shenzhen Ningbo Lianyungang Port.
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
America Australia Mexico South Africa
UA Colombia Ukraine Ecuador England Germany (ERGE)
French Italy(ZOPPAS) Denmark(TRIAX)
Russia India Iran Uruguay Ireland etc.
Our company is located in the history of Chinese history and culture of the ancient city, north of yangzhou, the famous hometown of charge - baoying, located in the beijing-hangzhou grand canal bank, beijing-shanghai expressway runs through north and south, convenient transportation, beautiful environment.
Our factory was founded in 2003, after 10 years of development, has a well-trained staff, factory employees 90 people, including management personnel 18 people, engineering technical personnel 20 people, the factory covers an area of 30000 square meters, factory building area of 10000 square meters.Achieve sales value of eighty million yuan, 2013 export value of $five million.Our factory in line with the service society, the enterprise concept of understanding the world, on the basis of quality and information, reputation and service for the guidelines, wholeheartedly welcome everywhere merchants to come to discuss cooperation, mutual benefit, hand in hand create a better future
A: We are the Manufactory specialized in all kinds of silicone electrical wire, high temperature electrical wire for 20 years. The wires we supply have obtained UL certificate.
Q: Can you show us your products test report?
A: Of course. You will have our products test report soft copy after asking. We send our products to TESTING every year. And our products test resort can pass RoHS & REACH standard.
Q: How can I get the samples?
A: You should pay for the transportation freight of samples and our samples’ cost, while the samples’ cost can be refundable after you place the order.
Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size and your area.
Q: How long can I expect to get the sample?
A: The samples will be ready for delivery in 5 days.The samples will be sent via express and arrive in 3-5 days.
Q: How to order?
A: Please send us your purchase order by Email or Fax (+86 514088786699) or you can ask us to send you a Proforma Invoice for your order. We need to know the following information for your order.
1. Product information-Quantity, Specification (Size, Material, Technological and Packing requirements etc.)
2. Delivery time required.
3. Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.
4. Forwarder's contact details if there's any in China.
We will offer you the price that referring to your detail request, so please kindly inform us of the material, cross section, rated temperature, rated voltage, color and other requirement you refer, and the special offer will be given.
