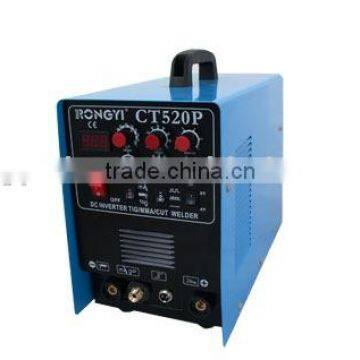

TIG/MMA/CUT Inverter Welder [CT520P]

FOB Price

Negotiable / Set

30 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	RONGYI
Model Number	CT520P	Arc Current	200A
Pulse Frequency	0-200 Hz	Pilot Arc Current	10A
Rated Duty Cycle	60%	Dimensions	575320455 mm
Usage	wed and cut all kinds of metal material

TIG/MMA/CUT inverter welder [CT520P]
2T/4T weld function can lighten your labor; pulse welding function ensure perfect welding

TIG/MMA/CUT inverter welder [CT520P]

FEATURES OF TIG/MMA/CUT inverter welder [CT520P]:

1. AdvancedMOSFET inverter technology, high working efficiency, DC output;

2. Compactstructure, convenient to carry, reliable and durable, easy for maintenance;

3. Multi-functionof TIG and MMA welder as well as air plasma cutting;

4. Withpulse welding function ensure perfect welding performance;

5. 2T/4Tweld function can lighten your labor with ease;

6. Completeaccessories: welding torch, cutting torch, welding holder, earth clamp, compressedair regulator, ect.

SPEC. OF TIG/MMA/CUT inverter welder [CT520P]:

Model Spec.	CT-520P
Power supply voltage
Power supply capacity	3.6 kVA
Rated input current (TIG)	16.7 A
Rated input current (MMA)	23 A
Rated input current (CUT)	27 A
Output current range (TIG)	10 - 200 A
Output current range (MMA)	10 - 200 A
Output current range (CUT)	25 - 50 A
No-load voltage (TIG)	56 V
No-load voltage (MMA)	56 V
No-load voltage (CUT)	220 V
Operating voltage (TIG)	17.2 V
Operating voltage (MMA)	27.2 V
Operating voltage (CUT)	160 V
Dia. of welding rodΦ(MMA)	3.6 mm
Arc initiation way (TIG)	HF
Arc initiation way (MMA)	Touch
Arc initiation way (CUT)	HF
Protection grade provided by enclosure	IP 21
No-load loss	50 W
Cosφ (η)	0.93
Insulation grade	F
Duty cycle	60%
Efficiency	85%
Air pressure (CUT)	0.5 MPa
Gas flow (TIG)	2-5 L/min
Gas flow (CUT)	100 L/min
Cutting thickness (CUT)	1-10 mm
Weight	12.4 kg
Dimension (mm)	575320455
