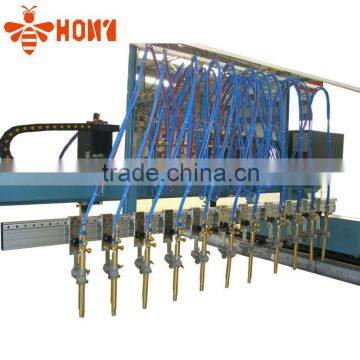

Germany quality Chinese price Industry use metal plate multi torch metal cutting machine HBMEDGEPro-8000*20000
- 50 Set / Sets per Month
- Dalian China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CNC multi torch gas cutting machine, with 8-12 torches HBCNC 8000*36000*10C
-
High speed 380V H-Beam straight line cutting machine , 6mm - 200mm Thickness
-
Heavy duty type metal plate strip cutting machine from Honeybee
-
CNC flame cutting machine equiped with 12 torches
-
multi language operation CNC flame strip cutting machine for metal plate
-
HONEYBEE heavy duty plate shape CNC flame plasma cutting machine
Product Details
Place of Origin | Liaoning, China | Brand Name | Honeybee | |
Model Number | HBMEDGEPro-8000*20000 | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
1. multi torch gas cutting machine2.High efficient, solid
3.Auto nest software,save material
4.Both oxy-fuel & plasma
According to customer demand computer programming cutting
Metal CNC cutting machine
Honeybee Gantry CNC Cutting Machine is a kind of automatic cutting equipment which is combined CNC system, precise mechanical drive and air cutting technology. It is widely applied to manufacture and cutting steel field, such as, the ship building industry, steel construction, construction machinery, mining machinery, pressure vessel and vehicle, petrochemical, etc.
The machine includes the cross beam, trolley, longitudinal rails, CNC system, moving system and electric system, etc. You can choose the different CNC system, Honeybee CNC system, Vup CNC system, USA Hypertherm CNC system. Support USA Hypertherm, Thermadyne and Kjellberg plasma power sources. For the driving mode, if the track span is less than 4m, the Gantry CNC Cutting Machine is single drive, if over 4m, it is double drives. In order to ensure the stability of machine under rapidly runnning, we use the heavy trolley for the Gantry Cutting Machine which equiped Hyperformance plasma power sources or its track span over 6 meters. With automatic correction function to keep the long-term working precision.
Standard Model List of Gantry CNC Cutting Machine
Metal CNC cutting machine
Track Span(m) | 3.5 | 4 | 5 | 5.5 | 6 | 8 | 10 |
Rail length(m) | 12 | 12 | 14 | 14 | 14 | 16 | 16 |
Every the length of rail is 2m, Can be lengthened according to Users demand. | |||||||
Torch No. | 2 oxy-fuel torches as standard. Torch quantity can be customized. 1 plasma torch. Double plasma torches can be customized. | ||||||
Max cutting Area | 2.6*10 | 3.1*10 | 4.1*12 | 4.6*12 | 5.1*12 | 7.2*14 | 9.2*14 |
Cutting thickness | 6~200mm (Oxy-fuel); Depends on plasma power capacity (Plasma) | ||||||
Driving Mode | Single driving | Dual driving | |||||
CNC system | USA MicroEDGEPro | ||||||
Program software | Australia FastCAM professional edition | ||||||
Speed Range | 0~10000mm/min | ||||||
Cutting gas | Oxygen+acetylene/Propane; plasma cutting gas depends on plasma model | ||||||
Option | Oxy-fuel: Auto-ignition, Auto THC, Powder marking, Linear Triple Torches; Plasma: Auto THC. |
CNC cutting machines are widely used in many areas:
Wood exporting boxes:
Good greening company and clean tidy workshop:
Dalian Huarui Heavy Industry CNC Equipment Co., Ltd., a subsidiary of Dalian DHI-DCW Group Co., Ltd., is a first-class technique intensive enterprise of research, manufacture and sale by taking advantage of first grade technique researching ability and production ability of DHI-DCW Group Co., Ltd. Our HONEYBEE brand CNC cutting products include Portable Flame/Plasma CNC Cutting Machines, Gantry CNC Flame/Plasma Cutting Machines, Bench Type CNC Flame/Plasma Cutting Machines, and Multi-head Straight-line Flame Cutting Machines. Relying on strong ability of technical researching, strict quality manufacturing and highly effective management, our technology of all HONEYBEE products reach international advanced standard. Our company has firstly passed the evaluation of ISO9001 certification and CE certification. Especially, we have attained a patent for Portable CNC Cutting machine. In Chinese cutting machinery market, Honeybee has become very famous in the Portable CNC cutting field.With the belief of rejuvenating national cutting machine manufacturing industry, combining strong the ability of technical research and effective management, focusing on the talented and technical recreation, we make all efforts to build an international brand as one of Chinese leading cutting equipment manufacturers. Nowadays, our markets have extended to Europe, Southeast Asia, South America, Australia, the Middle East and other countries and regions with professional sales service and responsible sales members. We are always looking forward to business cooperation with overseas customers based on mutual benefits.
.What can we do for you?
Save time. You fell there is no enough time when you do you work in the day? Ok, we can’t reinvent the clock, but you might think we did that, because of the use of our HONEYBEE instead of your traditional mechanical cutting turtles. Our new customer always feedback the information that they did add extra labor and fine works, but do double output. Why they got double output, which is because HONEYBEE is fast and simple to movable and portable CNC, and it is very easy to be operation also.
2.Lower Investment
If you are a DIY fun or a Metal design lover, now you will have a new choice . Do you have a headache for the highest cost of the bigger gantry machine ? pls consider our HONEYBEE Portable CNC cutting Machine. we believe you must be much enjoy for the portable machine performance, after serial year development, Our CNC machine already become much more better than ever. now many factory focus on use the HONEYBEE Portable CNC cutting machine, for the cost will be much lower than the bigger one.
3.Simple Operation
Any common people can operate our HONEYBB, the system is friendly and simple, more important, there are many patterns already in our machine system, you can cut it directly without go to for the AutoCAD designning. anyway, if you are an AutoCAD master, you can also cut your arts through a USB Memory card easily.
4.Durable In Use
All the Honeybee machine is made by good quality parts, every every screw, now many Honeybee portable still working in the world after six years. it still works for every steel cutter. we only supply the good quality machine for every customer. every customer is our God.
5.Cost Savings
With Honeybee portable cutting system, you will can cut any scrap which can not be design any more after the bigger gantry machine to save your cost of job. For we also the CNC while the smaller one, anyway we do the same cutting tasks.
6.Engineered Solutions
Our engineer will help every customer to design the cutting figure ,if the customer need help ,we also can help dealer to have a train for machine use , CAD design , cutting solution , machine updating, portable NC machine repairment ,even the marketing support ,if you want .
