Gantry industrial use THC CNC Plasma working Machine,industrial class controller
- 50 Set / Sets per Month
- Dalian China
- T/T
You May Like
-
high speed gantry steel metal strip cutting machine
-
cnc steel strip cutter gantry metal strip plasma cutter
-
China sell CNC metal rack flange plasma flame cutting machine
-
propane iron strip cutting machine cnc gas iron strip cutter
-
Multi head cnc metal Strip Flame Cutting Machine price
-
high stability cnc plasma steel strip cutting machine
Product Details
Condition | New | Place of Origin | Liaoning, China | |
Brand Name | Honeybee | Model Number | HBCNC-4X8X2C+1A | |
Voltage | 380V | Rated Power | 30kw | |
Weight | 3850KG | Certification | CE | |
Warranty | 12 Months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
plasma cutting machine,gantrysmooth, accurate motion,high efficiency
sturdy design, high durability
user friendly cnc system
Dalian Huarui Heavy Industry CNC Equipment Co., Ltd., a subsidiary of Dalian DHI-DCW Group Co., Ltd., is a first-class technique intensive enterprise of research, manufacture and sale by taking advantage of first grade technique researching ability and production ability of DHI-DCW Group Co., Ltd. Our HONEYBEE brand CNC cutting products include Portable Flame/Plasma CNC Cutting Machines, Gantry CNC Flame/Plasma Cutting Machines, Bench Type CNC Flame/Plasma Cutting Machines, and Multi-head Straight-line Flame Cutting Machines. Relying on strong ability of technical researching, strict quality manufacturing and highly effective management, our technology of all HONEYBEE products reach international advanced standard. Our company has firstly passed the evaluation of ISO9001 certification and CE certification. Especially, we have attained a patent for Portable CNC Cutting machine. In Chinese cutting machinery market, Honeybee has become very famous in the Portable CNC cutting field.With the belief of rejuvenating national cutting machine manufacturing industry, combining strong the ability of technical research and effective management, focusing on the talented and technical recreation, we make all efforts to build an international brand as one of Chinese leading cutting equipment manufacturers. Nowadays, our markets have extended to Europe, Southeast Asia, South America, Australia, the Middle East and other countries and regions with professional sales service and responsible sales members. We are always looking forward to business cooperation with overseas customers based on mutual benefits.

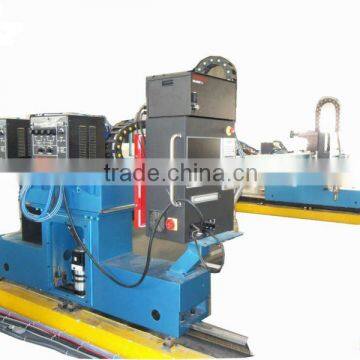

Plasma cutting machine HBCNC-4X8X2C+1A
The Programmable Gantry System provides coordinated motion in two axis, using three drives: two synchronized motors drive the main carriages along the X-axis, and one drives the Y-axis crossbeam carriage. The machine can be easily programmed to repeat any contour or pattern for either cutting or welding applications. A handheld terminal supplied with the machine is used to program the required shape and operation sequence. Other functions besides moves can be programmed, such as starts, stops, delays, repeats and rapid traverse. Ten programs can be stored in machine memory at any one time.
A PC option is available which includes a connecting cable and a software program. With this, the operator can create any number of shapes on a PC and store them on disk. Selected shapes can then be downloaded into the machine as needed.
HONEYBEE Gantry CNC Flame Cutting Machine is a precise large gantry cutting machine with sturdy design, high durability and user friendly CNC system. It delivers smooth, accurate motion while flame cutting, which provides incredible productivity with lowest cost.
HONEYBEE Gantry CNC Cutting Machine:
*Well machind heavy duty longitudinal guide rail.
*High performance Japanese AC digital driving motor.
*Transverse linear guide rail imported from Taiwan.
*Torch lifting via linear guide rail and screw ball mandrel ensures superb reliability.
*Germany precisice EISELE reducer.
HONEYBEE Gantry Type CNC Plasma cutting machine Tech Data | |||||||
Rail Center (M) | 3.5 | 4 | 5 | 5.5 | 6 | 8 | 10 |
Rail Length (M) | 12 | 12 | 14 | 14 | 14 | 16 | 16 |
Rail can be lengthened in accordance with user's demand | |||||||
Flame / Plasma Torch | 1 plasma torch and 2 flame torches as standard configuration. Extra torches available. | ||||||
Max Cutting Area (M) | 2.6*10 | 3.1*10 | 4.1*12 | 4.6*12 | 5.1*12 | 7.1*14 | 9.1*14 |
Flame Cutting Thickness | 6mm--300mm | ||||||
Plasma Cutting Thickness | 2mm--80mm(depend on the plasma power source specification) | ||||||
Driving Mode | Single side driving / Dual driving | ||||||
Speed Range | 0--12000mm/min | ||||||
Flame Cutting Gas | Oxygen+acetylene/propane | ||||||
Plasma Cutting Gas | Pressed air, Oxygen, N2 | ||||||
Optional functions | Auto igniter / Auto height sensor / Arc Height control/Powder marking/ Plasma marking/ Underwater cutting / Dust collector |
(PS:This gantry type NC cutting machine have 1 plasma station)
CNC cutting machines are widely used in many areas:
