High Temperiture Cable Accessories Flexible Silicone Customized Colored Heat Shrink Tube
US$ 0.019 - 1.45
/ Meter
1000 Meters(Min. Order)
- ningbo shanghai
- Credit Card
You May Like
-
2:1shrink Ratio PE Cable Accessories/ Heat Shrink Tube/heat Shrink Sleeve
-
Heat Shrink Insulation Tube Heat Shrinkable Sleeve
-
UL High Quality Cheap Price Nylon Saddle Type Cable Mounts
-
R Type Plastic Cable Clamps
-
Manufacturer High Quality Nylon Plastic Cable Tie Holder
-
Self Adhesive Nylon 66 Plastic Cable Tie Holder Cable Tie Mount
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JESUO | |
| Model Number | 1.0mm~70mm | Type | Insulation Sleeving | |
| Material | Other, PE, Polyolefin | Application | Low Voltage | |
| Rated Voltage | 600v | Tensile Strength | ≥14Mpa |
Product Description
Product Description
1.Name:2:1 Insulation pvc heat shrink tube
2.Shrindageratio :2:1,3:1
3.Characteristic :Heat shrinkable tubes are featured with halogen free, environmental protection, fire
retardation, insulation, flexible, elasticity, low shrinkage temperature, rapid shrinkage, etc
4.Application: Heat Shrinkable Tube are widely applied to wire connection, soldered joint protection, end treatment of wire, wire marking, rust prevention and corrosion protection of metal, insulation protection of resistor and capacitor, etc. The large tubes can be applied to copper-bar, aluminum-bar and other low-voltage tank brackets, shrindageratio is 2:1,3:1
Advantages
| Complete products: | Heat Shrink Tube,Electrical tape,Expand Nail,Wire Duct,Hose Clamp etc wiring accessories series |
| Quality assurance: | Strict quality control before shipment |
| High efficiency: | Handling customer questions within 24 hours |
| Increase customer utility: | Personal tracking, 10 to 15 days shipment after received payment |
Size Heat Shrinkable Tube
| Specification mm | AS Supplied | After Shrinkage | Cable Range | Packing (M/Roll) | ||
| mm 1.D | Thickness | mm 1.D | Thickness | |||
| Ø1.0/0.5 | 1.50±0.30 | 0.20±0.05 | 0.6 | 0.35±0.05 | 0.50~0.90 | 200 |
| Ø1.5/0.75 | 2.00±0.30 | 0.20±0.05 | 0.8 | 0.35±0.05 | 0.75~1.40 | 200 |
| Ø2.0/1.0 | 2.50±0.30 | 0.20±0.05 | 1 | 0.42±0.05 | 100~1.80 | 200 |
| Ø2.5/1.25 | 3.00±0.30 | 0.20±0.05 | 1.25 | 0.42±0.05 | 1.25~2.30 | 200 |
| Ø3/1.5 | 4.00±0.30 | 0.20±0.05 | 1.75 | 0.42±0.05 | 1.75~3.20 | 200 |
| Ø4.0/2.0 | 4.50±0.30 | 0.20±0.05 | 2 | 0.45±0.05 | 2.00~3.60 | 200 |
| Ø5.0/2.5 | 5.50±0.30 | 0.28±0.05 | 2.5 | 0.50±0.08 | 2.50~4.50 | 100 |
| Ø6.0/3.0 | 6.50±0.30 | 0.28±0.08 | 3 | 0.50±0.08 | 3.00~5.40 | 100 |
| Ø7.0/3.5 | 7.50±0.30 | 0.30±0.08 | 3.5 | 0.55±0.08 | 3.50~6.30 | 100 |
| Ø8.0/4.0 | 8.50±0.30 | 0.30±0.08 | 4 | 0.60±0.08 | 4.00~7.20 | 100 |
| Ø9.0/4.5 | 9.50±0.30 | 0.30±0.08 | 4.5 | 0.60±0.08 | 4.50~8.00 | 100 |
| Ø10.0/5.0 | 10.50±0.50 | 0.30±0.08 | 5 | 0.60±0.08 | 5.00~9.00 | 100 |
| Ø11.0/5.5 | 11.50±0.50 | 0.30±0.10 | 5.5 | 0.60±0.08 | 5.50~10.00 | 100 |
| Ø12.0/6.0 | 12.50±0.50 | 0.30±0.10 | 6 | 0.60±0.08 | 6.00~11.00 | 100 |
| Ø13.0/6.5 | 13.50±0.50 | 0.35±0.10 | 6.5 | 0.65±0.08 | 6.50~12.00 | 100 |
| Ø14.0/7.0 | 14.50±0.50 | 0.35±0.10 | 7 | 0.65±0.08 | 7.00~13.00 | 100 |
| Ø15.0/7.5 | 15.50±0.60 | 0.40±0.12 | 7.5 | 0.70±0.08 | 7.50~14.00 | 100 |
| Ø16.0/8.0 | 16.50±0.60 | 0.40±0.12 | 8 | 0.70±0.08 | 8.00~15.00 | 100 |
| Ø18.0/9.0 | 19.00±0.60 | 0.40±0.12 | 9 | 0.80±0.15 | 9.00~17.00 | 100 |
| Ø20.0/10.0 | 21.00±0.60 | 0.40±0.15 | 10 | 0.80±0.15 | 10.00~19.00 | 100 |
| Ø22.0/11.0 | 23.00±0.70 | 0.45±0.15 | 11 | 0.90±0.15 | 11.00~21.00 | 100 |
| Ø50.0/25.0 | 50.50±0.70 | 0.50±0.15 | 25 | 1.00±0.15 | 25.00~49.00 | 25 |
| Ø60.0/30.0 | 60.50±0.70 | 0.55±0.15 | 30 | 1.00±0.20 | 30.00~59.00 | 25 |
| Ø70.0/35.0 | 70.50±0.70 | 0.55±0.15 | 35 | 1.00±0.20 | 35.00~69.00 | 25 |

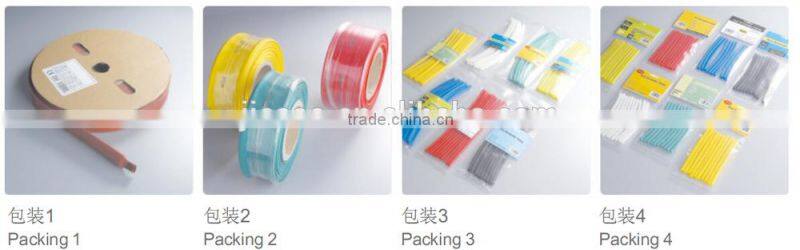

Packing Style
