Home > Products > LED Controller > Output power: 12V: <144W, 24V: <288W LED RGB lights rgb led touch panel controller

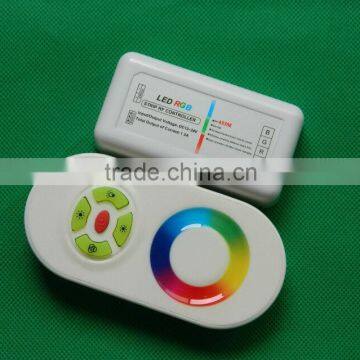

Output power: 12V: <144W, 24V: <288W LED RGB lights rgb led touch panel controller
USD $12.5 - $13.5
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- Shenzhen
- Credit Card
You May Like
-
Square touching LED RGB lights rgb led touch panel controller
-
Square touching LED RGB lights rgb led touch panel controller for CCT LED lights
-
HC008 LED controller for Pixel Lights,rgb led pixel controller,led light chain controler
-
H802SE 8*1024 Pixels LED Controller with Remote and SD Cards led sd card dmx controller
-
H802SE 8*1024 Pixels LED Controller with Remote and SD Cards led sd card dmx controller
-
DMX decoder for RGB LED Strip
Product Details
| Place of Origin | Guangdong, China | Brand Name | Ranger | |
| Model Number | RL-RF-Remote-432W | Type | Remote Control | |
| Max. Load Power | 432 | Voltage | Other, 5-24 |
Product Description
Product Description
Please Choose right Pictures, if there is any question, please inquiry, we will reply soon.
RGB LED Lights
| Supply voltage: DC12 ~ 24V Output: three CMOS open-drain output Output current: <4A / CH Single Dimensions: L85 * W45 * H23mm single NW: 98 g Connection: common anode Static power consumption: <1W Output power: 12V: <144W, 24V: <288W Full touch RF remote control, easy handling, soft color switching frequency: 433.92M |
CCT LEDs lights
Supply voltage: DC12 ~ 24V
Output: Two monochromatic parallel output
Output current: <4A / CH
Single Dimensions: L85 * W45 * H23mm single NW: 88 g
Connection: common anode Static power consumption: <1W
Output power: 12V: <96W, 24V: <192W
Easy handling, soft dimming adjustment range 1% to 100%
Frequency: 433.92M
| Supply voltage: DC12 ~ 24V Output: three CMOS open-drain output Output current: <4A / CH Single Dimensions: L85 * W45 * H23mm single NW: 98 g Connection: common anode Static power consumption: <1W Output power: 12V: <144W, 24V: <288W Full touch RF remote control, easy handling, soft color switching frequency: 433.92M |
| Supply voltage: DC12 ~ 24V Output: two outputs Output current: <4A / CH Single Dimensions: L85 * W45 * H23mm single NW: 98 g Connection: common anode Static power consumption: <1W Output power: 12V: <96W, 24V: <192W Easy handling, soft touch remote control dimming frequency: 433.92M |
| Supply voltage: DC12 ~ 24V Output: three CMOS open-drain output Output current: <4A / CH Single Dimensions: L85 * W45 * H23mm single NW: 88 g Connection: common anode Static power consumption: <1W Output power: 12V: <144W, 24V: <288W Five key touch with RF remote control, easy handling, soft color switching frequency: 433.92M |
| Supply voltage: DC12 ~ 24V Output: Two monochromatic parallel output Output current: <4A / CH Single Dimensions: L85 * W45 * H23mm single NW: 88 g Connection: common anode Static power consumption: <1W Output power: 12V: <96W, 24V: <192W Easy handling, soft dimming adjustment range 1% to 100% Frequency: 433.92M |
Installation Notice:
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
3) Keep the surface of installation clean and smooth avoid breaking off
4) Avoiding the crook area just the position of LED and other components, in order to protect the product and extend the life span of the product
Advantage:
1.Environment friendly.
2.Long lifespan and Energy-saving.
3.Experienced employees that capable for good service
4.Considerate and kind sales-after service.
5.Strict QC procession, ensure each product is high quality.
Please make an inquiry to get more details about this items,
